In commercial scenarios, there is a high concentration of people, especially in shops located close to the street. Automatic doors are prone to being triggered by mistake.

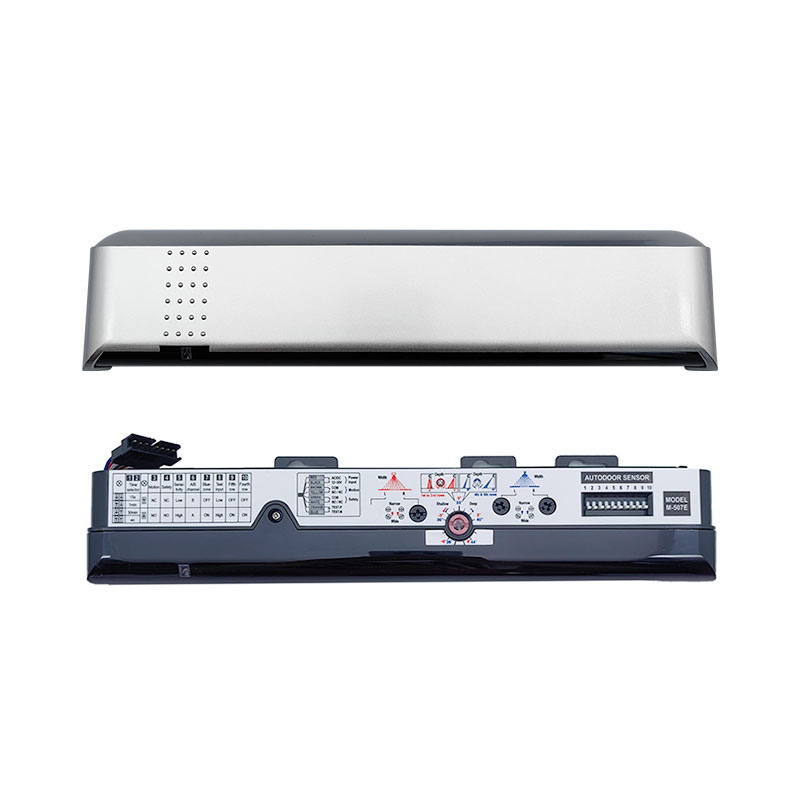

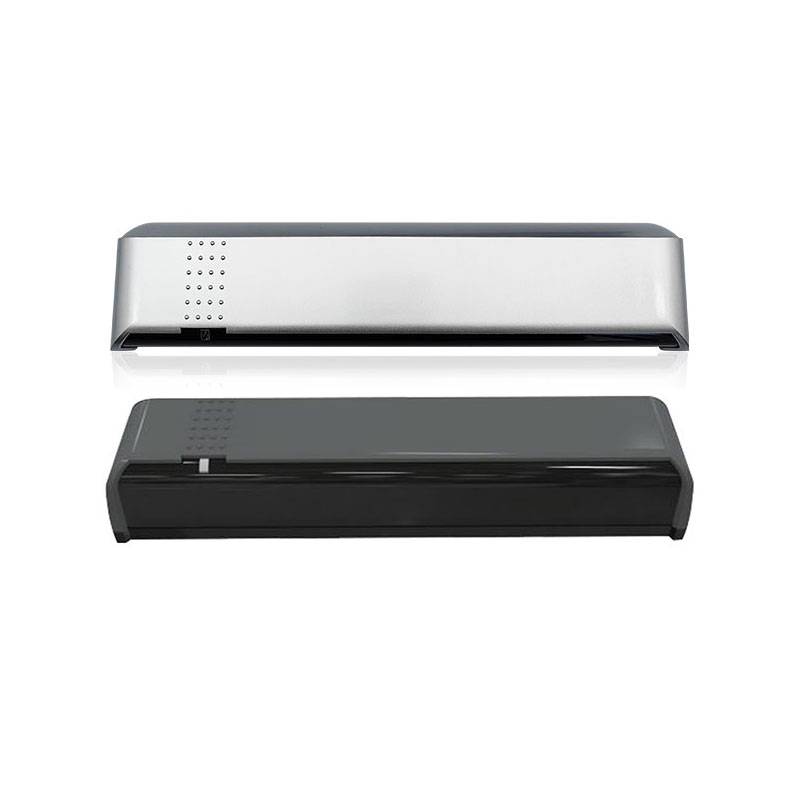

CNB-507X Automatic Door Motion Detector Security System, It combines the two main functions of the automatic door together, simultaneously fulfilling the automatic door opening function that detects when pedestrians approach, and also being able to identify whether there are any obstructions within the door's operating range, thus avoiding collisions or injuries to pedestrians.

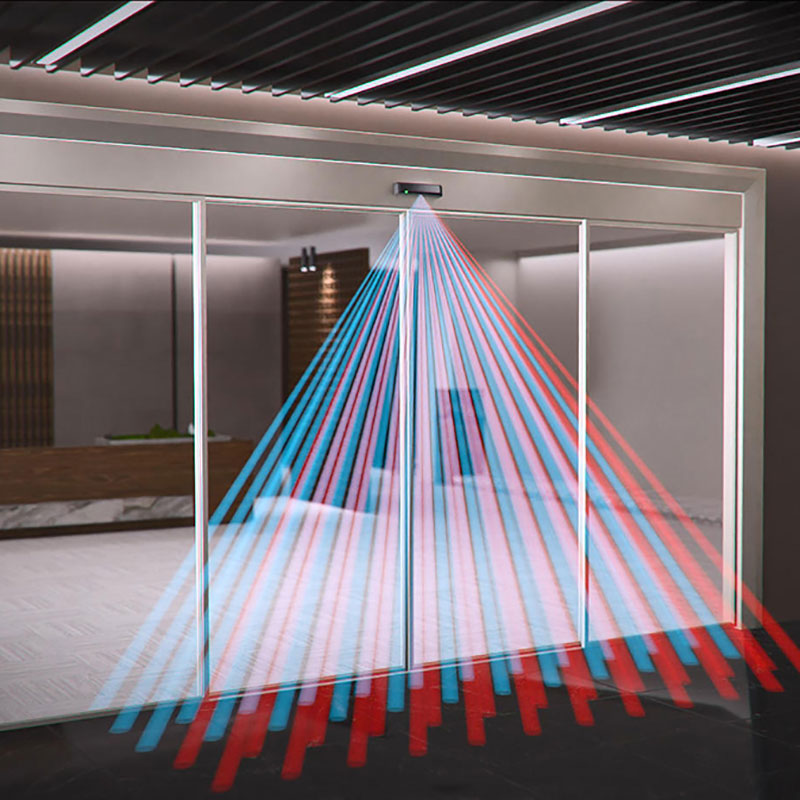

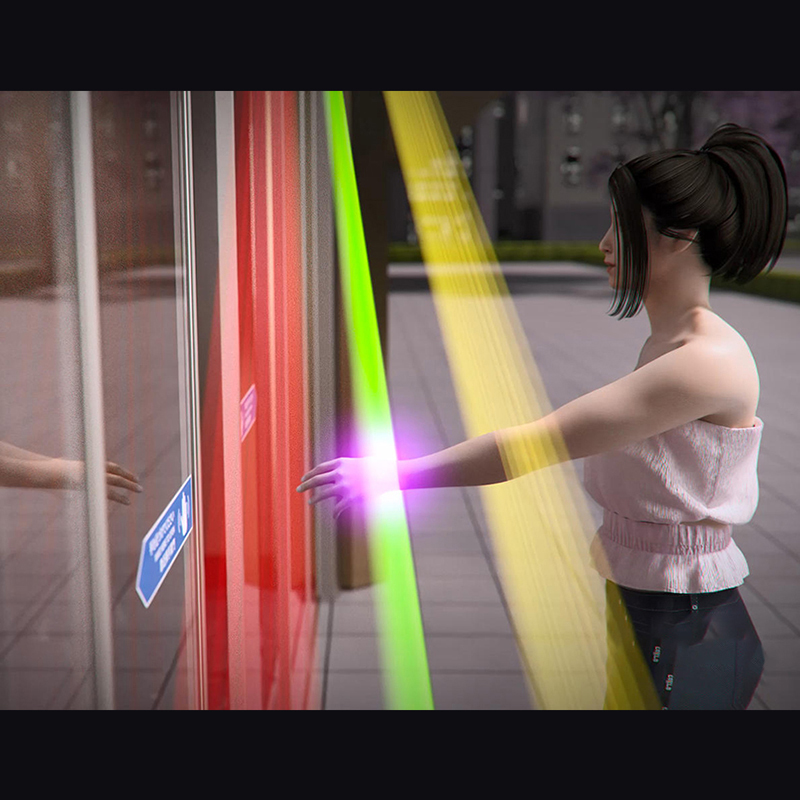

In addition, it has a street mode for high-traffic environments. The motion detector sensor creates an sensing area by emitting infrared light. When the DIP switch is adjusted to the street mode, other infrared beams is invalid, leaving the infrared beams close to the door body effective. When a person approaches the automatic door and waves hand close to the door, the automatic door receives the signal, door is opening.
Power Input: AC/DC 12~30V(10%)
Cable length: 2.5m
Signal output: Relay, 1 way motion, 1 way safety (NO/NC optional)
Max installation height: 3000mm
Static current: 39mA(DC12V power)
Action current: 105mA(DC12V power)
Material: Optical surface with PMMA, shell with ABS
Ray type: Infrared modulated light
Ray source: infrared 940nm
Self-learning time: Dynamic stability learning for 8s
Temperature: -25C~55C
Output maintain time: safety 1.2s, motion 2s
Respond time: 150ms
Background update time: 15s, 1min, 30min, not update, 4 levels optional

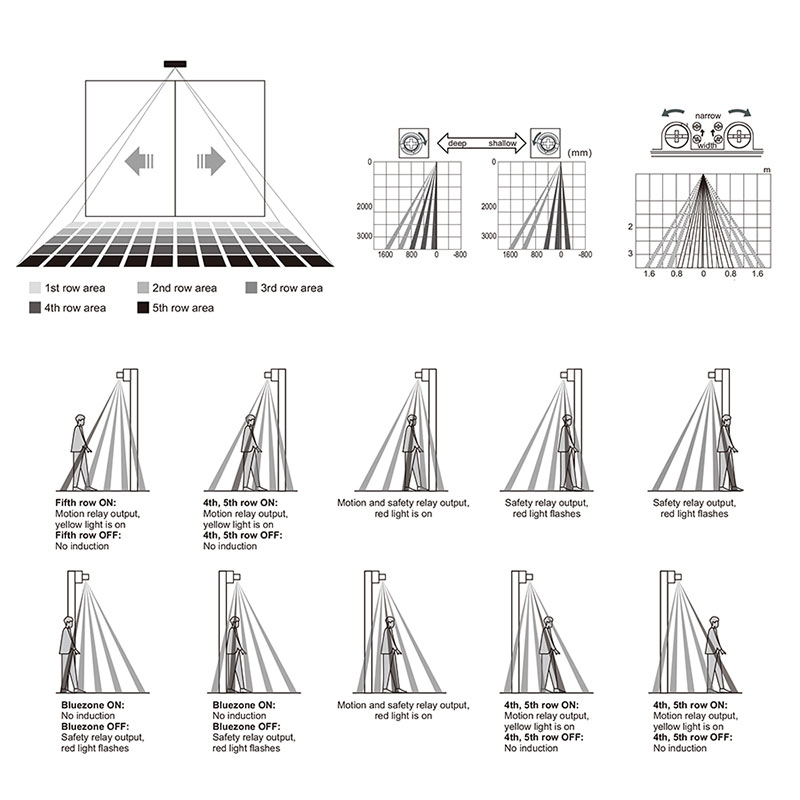

Light beam(Normal mode): 2 way safety, 6 transmitting,24 light spot; 1 way motion and safety, 3 transmitting, 12 light spot;2 way motion, 6 transmitting, 24 light spot
Light beam(Street mode): 2 way safety, 6 transmitting, 24 light spot; 1 way pre-motion, 3 transmitting, 12 light spot
Detection range: Maximum width 2500mm, hand wave to open distance 80~170mm(Mounted height=2.5 meters)
Operation display(Normal mode):Learning background: Green LED flashes; Standby state:Green LED is always on; Motion: Yellow LED is on; 1st&2nd row safety: Red LED flashes; 3nd row safety: red light is on.
Operation display(Street mode): Learning door opening background: Green LED flashes;Learning door closing background: Yellow LED flashes;Standby state: Green LED is always on; Motion: Red LED is on; 1st&2nd row safety: Red LED flashes
Dimension: 268(L)x61(W))x38(H)mm(exclude bottom shell)

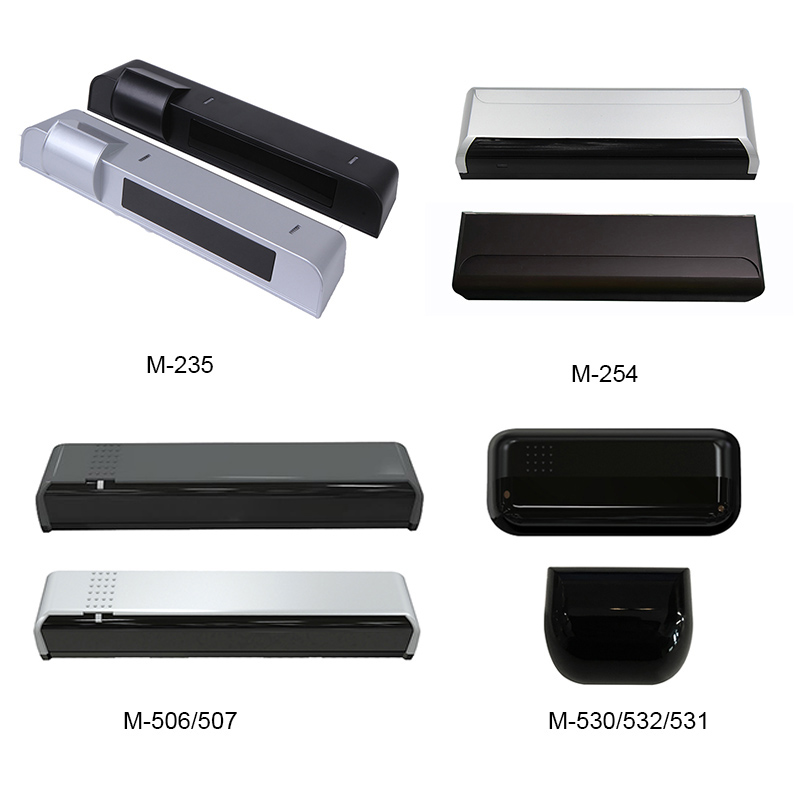

Street mode version: MODEL 507X
Microwave motion and infrared safety sensor: MODEL 506
Q: What is an automatic door motion sensor?
A: An automatic door access control motion sensor is a device that automatically detects movement of people or objects near the entrance through technologies such as microwaves or infrared. It triggers the opening or closing of the door. Microwave motion sensor and infrared sensor have different characteristics and are suitable for different types of automatic doors and different scenarios. However, the important thing for a good motion sensor is high accuracy and low false triggering rate. These activation sensors are crucial for achieving contactless entry and exit and barrier-free access.
