Product Overview

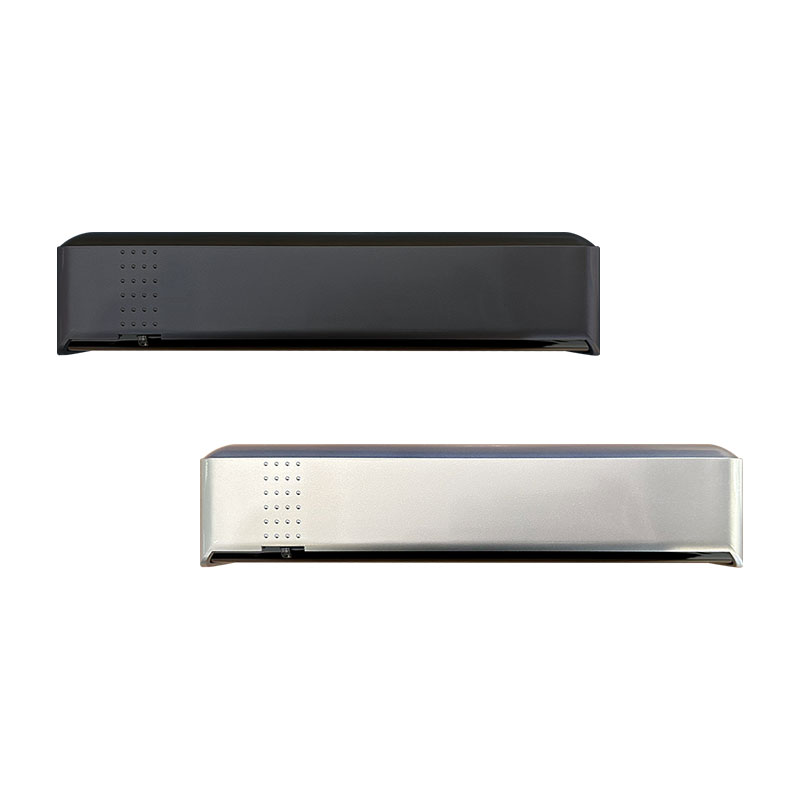

CANBO M-507 Automatic Sliding Door Sensor, motion detector for door opening and home securiety integrated in one. Use infrared photocell beam to detect the people approaching signal to control the door access.

Matched with other safety photocell sensor, electromagnetic door lock as automatic door access control system. Providing a precise detection zones for activation and safety function. Hygiene and convenience.

Product Features

Automatic sliding Door

Max installation height: 3.5 meters

Under door frame

Adjustable sensitivity respectively of motion and safety detection zone

Opening-time delay selector by DIP switch

Normally open/close setting

When installing the adjacent doors, with anti-interference setting.

Threshold detection zone, stays open for people or objects passing through the opening

EN16005 Standard

Product Specifications

Power input: AC/DC 12-30V（-/+10%）

Cable length: 2.5 meters

Signal output: Relay, 1 way motion, 1 way safety (NO/NC optional)

Maximum mounting height: 3 meters

Static current: 39 mA

Action current: 105 mA

Ray type: Infrared modulated light

Optical source: Infrared 940mm

Light beam: 2 way safety, 6 transmitting, 24 light spot;

                   1 way motion and safety, 3 transmitting, 12 light spot;

                   2 motion, 6 transmitting, 24 light spot

Powered self-learning time Dynamic stability for 2 seconds

Temperature:  -40℃ to +60℃

Detection range: 2500 (W) x 1600 (D) mm

Output hold time: Anti-clamp 0.5s, activation 2s

Response time: ≤100 ms

Background update time: 15s, 1m, 30, ∞   Four optional

External dimension:                           267.2mm (L) x 61.1mm (W) x 46mm (H)

Material: Optical surface with PMMA, shell with ABS

Operation display: Learning background: Green LED flashes;

                              Standby state: Green LED always on

                              Motion: Yellow LED is on;

                              1st&2nd row presence: Red LED flashes;

                              3rd row presence: red light is on.

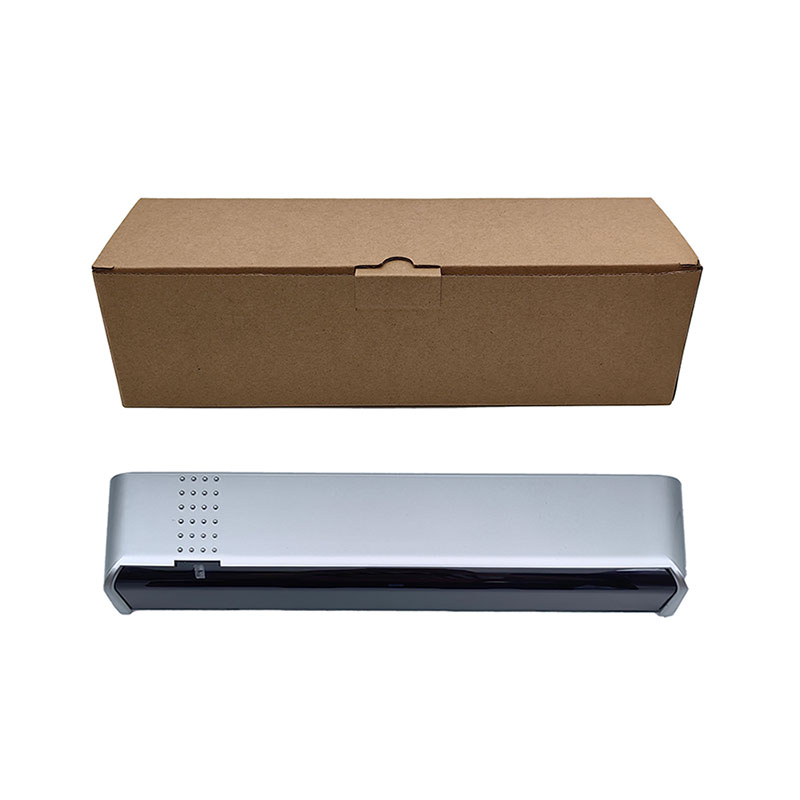

Packing List
