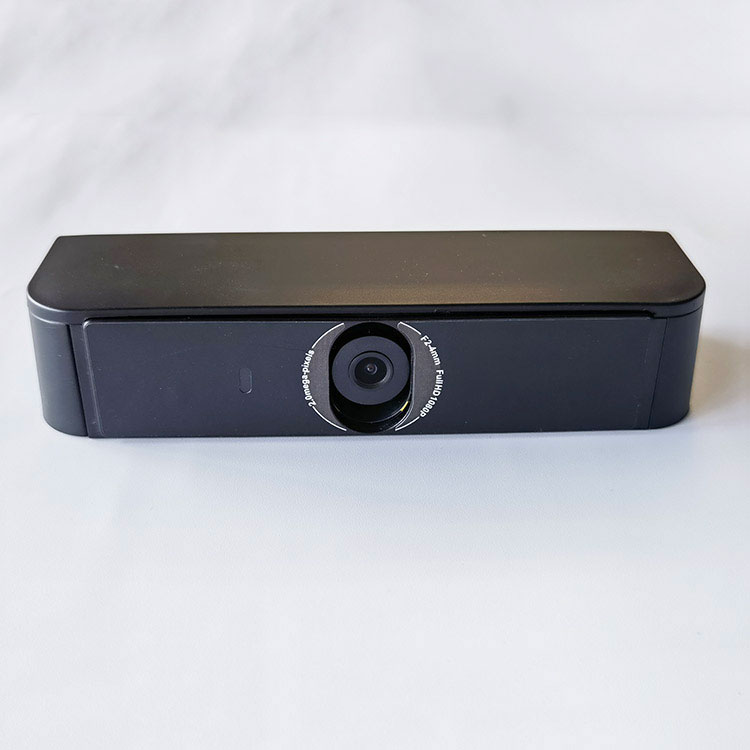

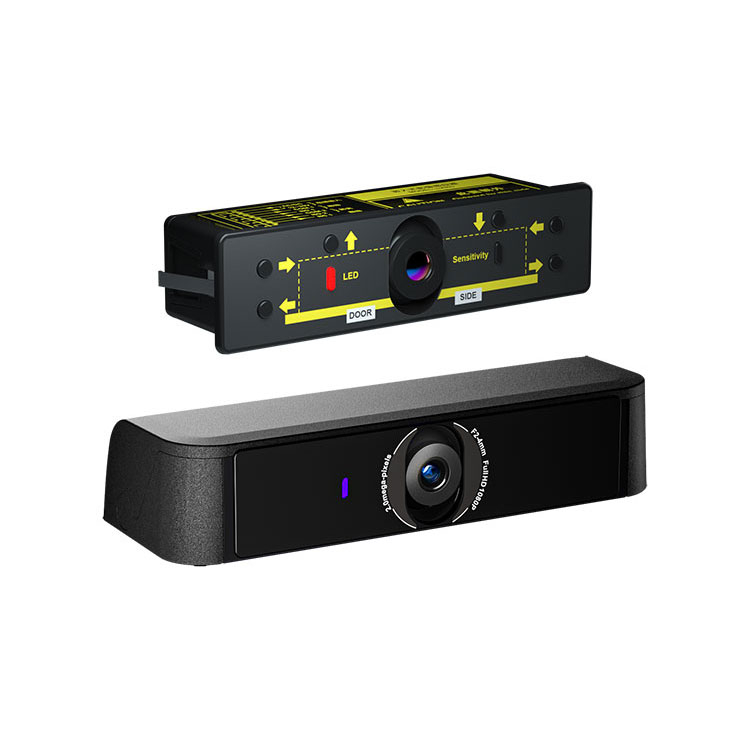

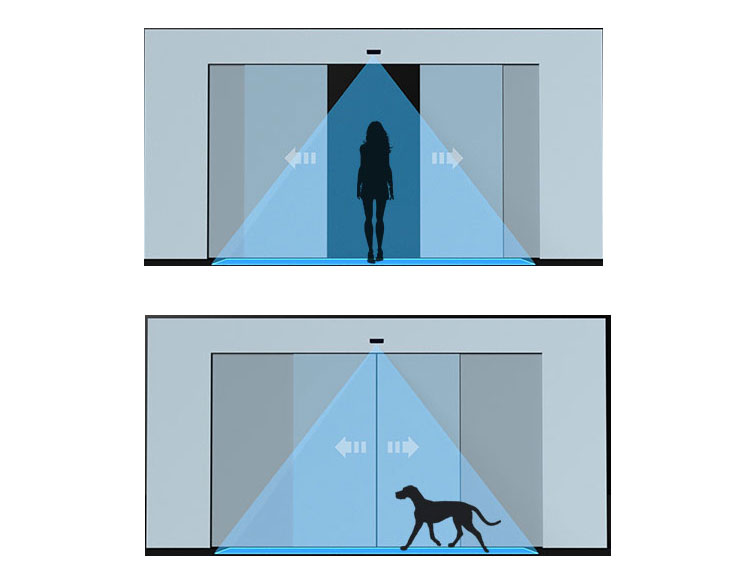

This series of Door Safety Camera Detection Sensor is a new type of motion and safety sensor for access control system that is matched with automatic door machines. The camera sensor adopts AI human figure recognition technology, by identifying and detecting whether it is a human figure, it realizes the activation and safety of the automatic door operation. It does not work when sensing objects and does not collect facial data.

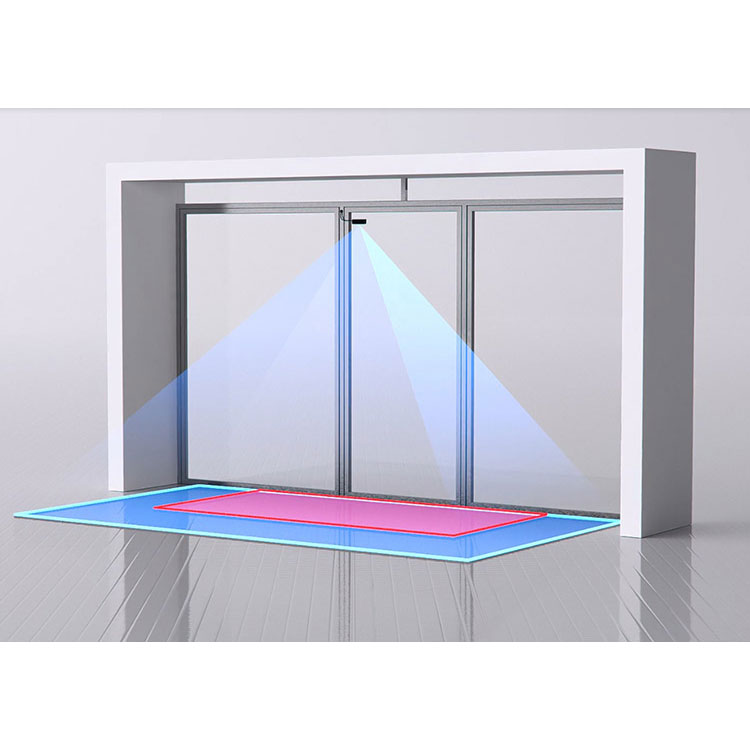

The human body recognition sensor is equipped with a dual relay setting, and the activation detection range and safety detection range can be adjusted separately. It is installed on the movable door leaf or fixed door header of the automatic door, serving as the activation and safety function of the automatic door.
1, The maximum installation height is 5 meters, ultra-high doors are also applicable.
2, Suitable for automatic sliding doors, automatic revolving door, especially for single or double-leaf swing doors, full range recognition and protection.
3, Embedded type and exposed type are available, also support fixed and moving place to install.
4, Provide motion and safety function for automatic door system, and can be adjusted the activate and safety detection range separately.
5, Camera just for recognizing the human body, data won't connect and store by mobile device. Don't worry about privacy issues.

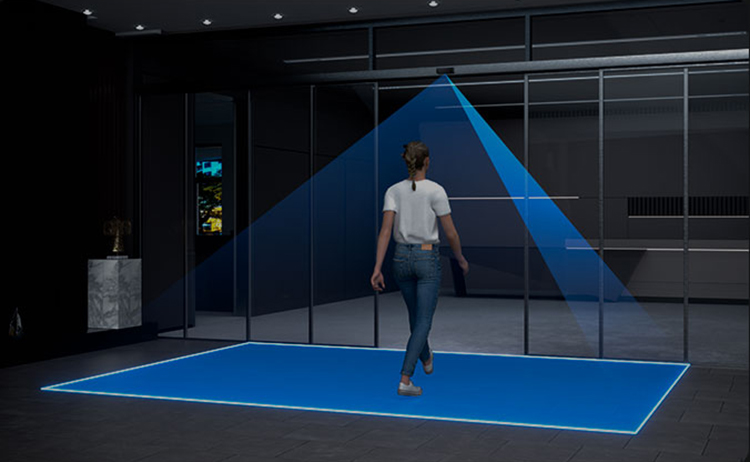

6, Night vision function. Built-in infrared fill light bead, enhance the ability to recognize at night.
7, No need for online debugging. Search on your mobile phone to enter the adjustment interface, simple and convenient.

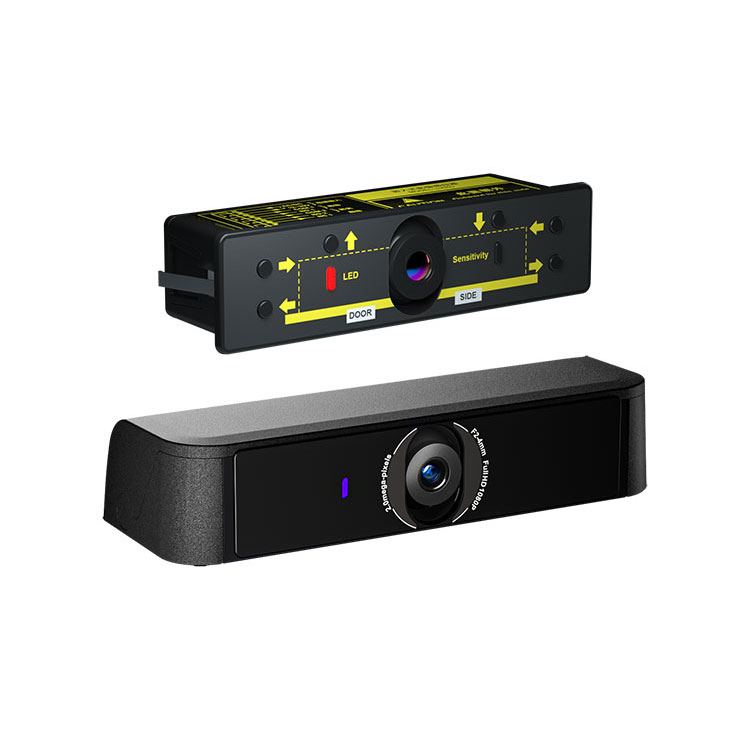

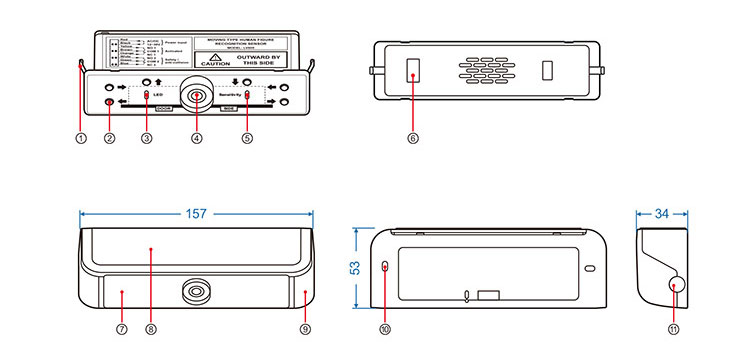

① Metal shrapnel
② Sensing range adjustment button x 6
③ LED indicator light
④ Camera
⑤ Sensitivity adjustment button

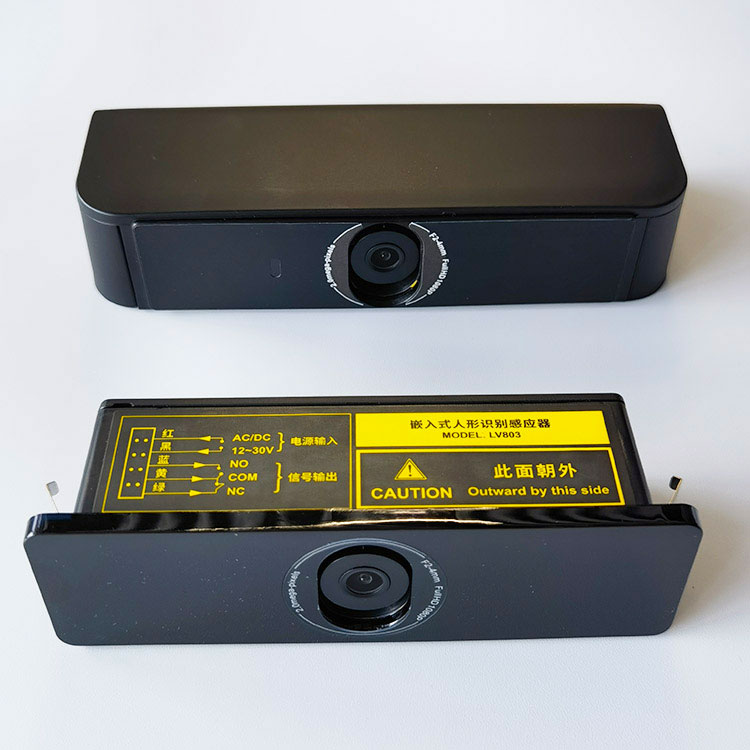

⑥ Wiring terminal
⑦ Front cover
⑧ Top cover
⑨ Bottom case
⑩ Mounting screw holes
⑪ Mounted threading hole

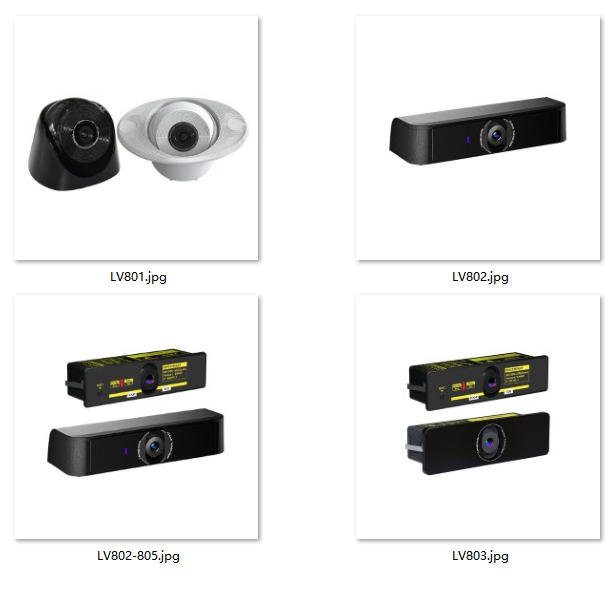

Model | LV802 | LV803 | LV805 | LV801 |
Principle | Human figure recognition | |||
Application | Used for automatic sliding door, swing door, revolving door | |||
Function | Activation/safety | Activation/safety | Activation and safety | Activation, safety and remote door opening |
Relay | One set | One set | Two sets | Two sets |
Installation | Surface mounted | Embedded | Surface mounted | Surface mounted / embedded |
Position | door head | door head | door head or moving door leaf | Door head |
Network | No need network, adjust the setting interface by phone | No need network, adjust the setting interface by phone | No need network, adjust the setting interface by phone | Wi-Fi connection, remote control by mobile |
Detection function: | human figure activated, safety |

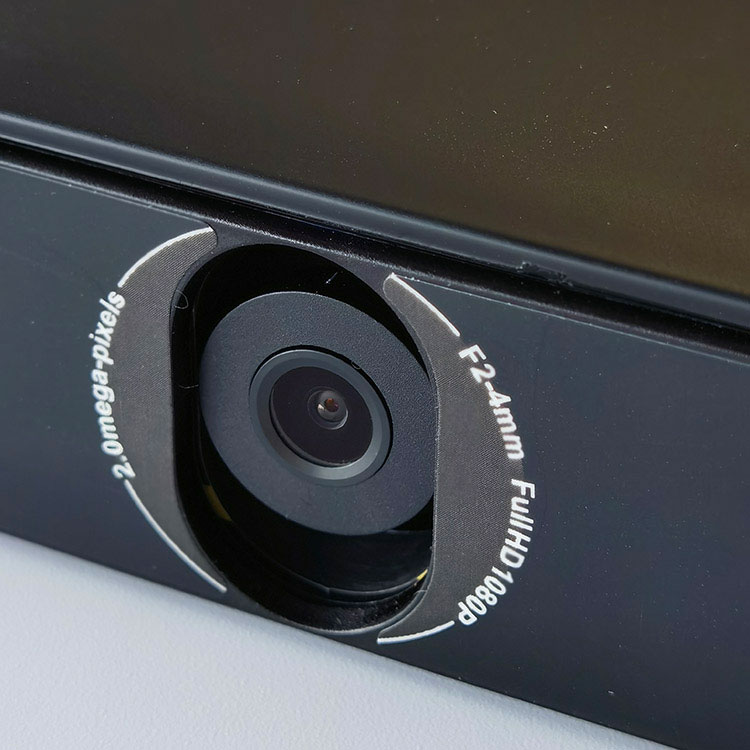

Camera pixel: | HD 1080P |
Response speed: | 100ms |
View angle adjustment: | ±20° |
LED indicator: | standby in BLUE, activated in RED, safety in RED light flashes |
Power supply: | AC/DC 12-30V |
Current: | Standby 95mA, action 130mA |
Working temperature: | -20°C~60°C |
Working humidity: | 10%~90%RH |
Installation height(max): | 5 meters |
Dimension: | 157(L)x53(W)x34(H)mm |
