Safety Light Barrier Door Sensor

The Laser Safety Curtain is designed to reliably detect the presence of people or objects within a designated area. It is a key safety device to prevent accidents and ensure the safe operation of automatic doors.

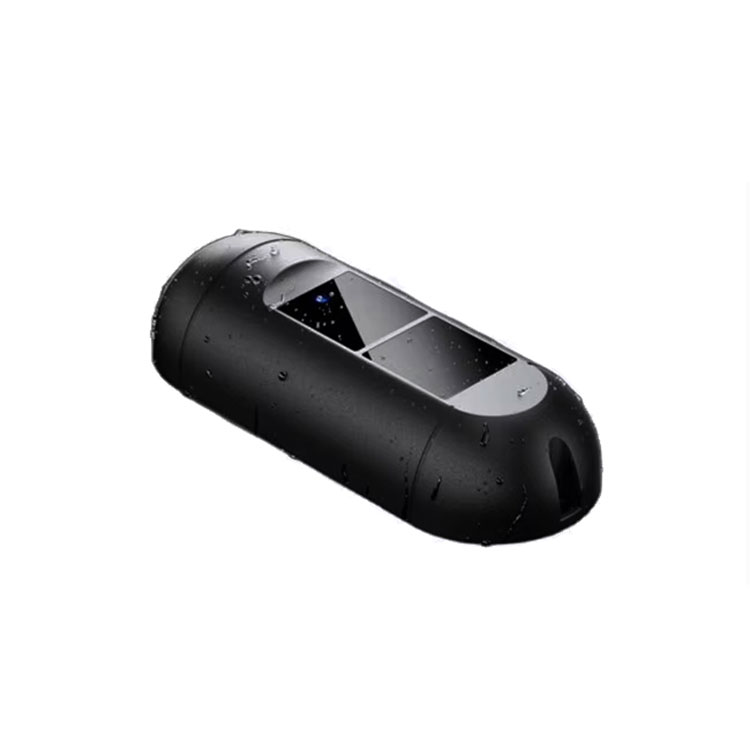

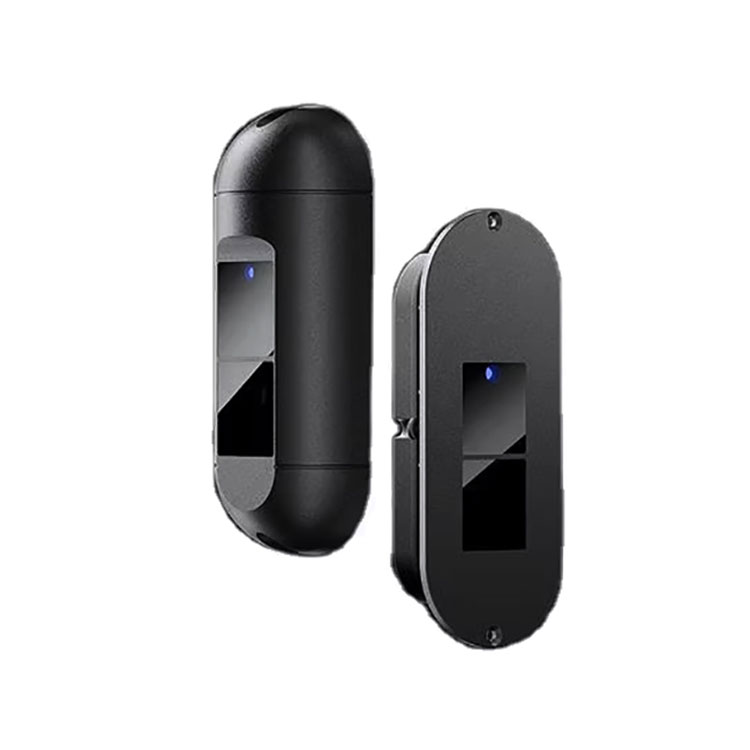

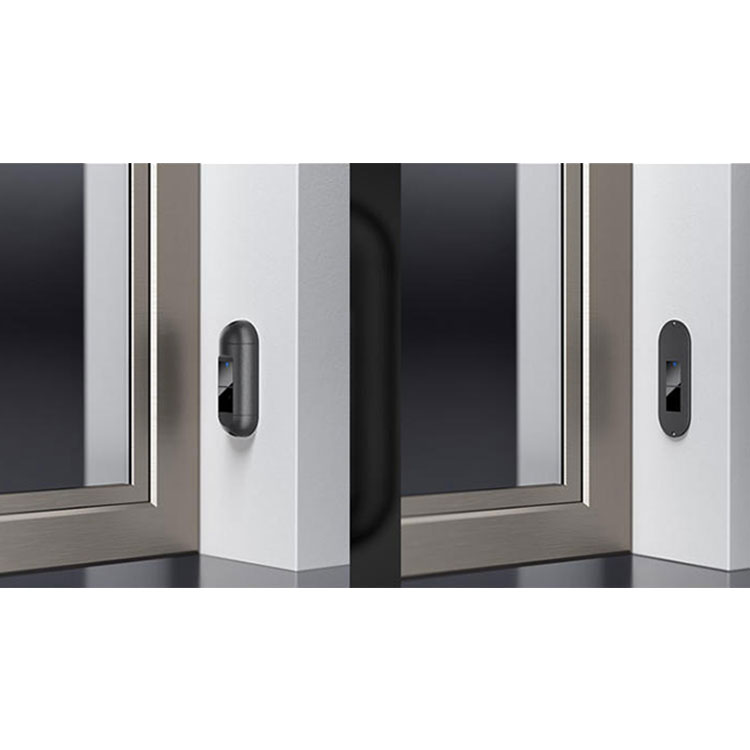

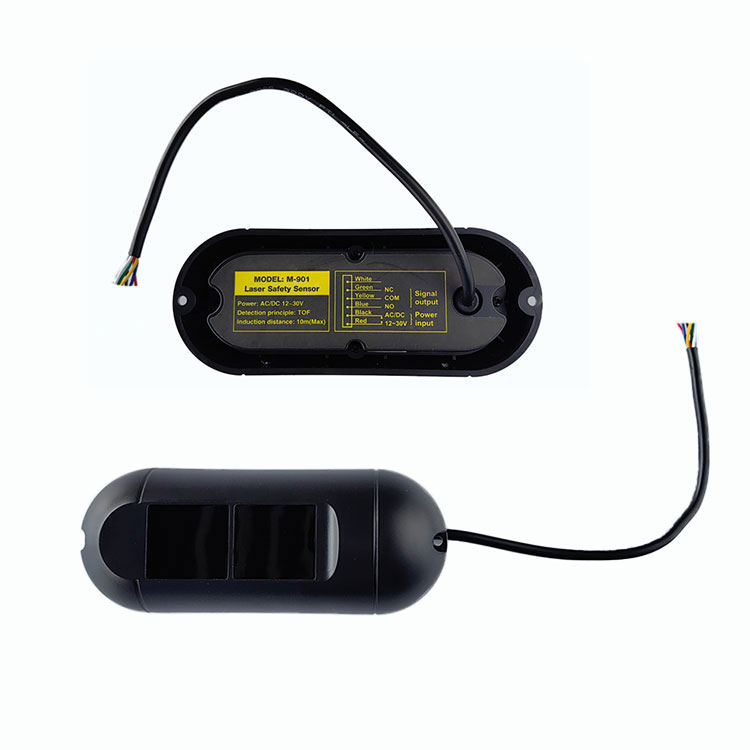

CANBO M-901 Safety Light Barrier sensor is installed on the side of automatic doors. It integrates the transmitting and receiving devices and users can easily adjust the sensing range between 80CM and 10M by hand sensing. It is suitable for use as a safety presence anti-pinch sensor in places such as automatic sliding doors, garage doors, speed doors, and vehicle access barriers. By creating an invisible protective screen, when an obstacle is detected, the reverse or stop command for the moving door/door is automatically triggered, thereby protecting pedestrians and objects.

PRODUCT CHARICTERISTICS

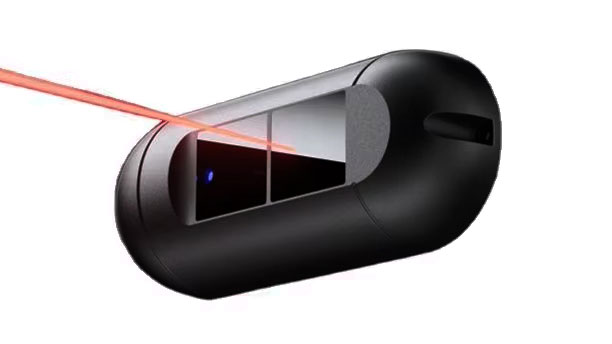

1, Laser safety sensor, with Laser-based Time-of-Flight technology, is used to automatic door for safety presence, more accurate and fast.

2, The one-way transmitting and receiving modules are integrated into one, no reflector and no background learning are required.

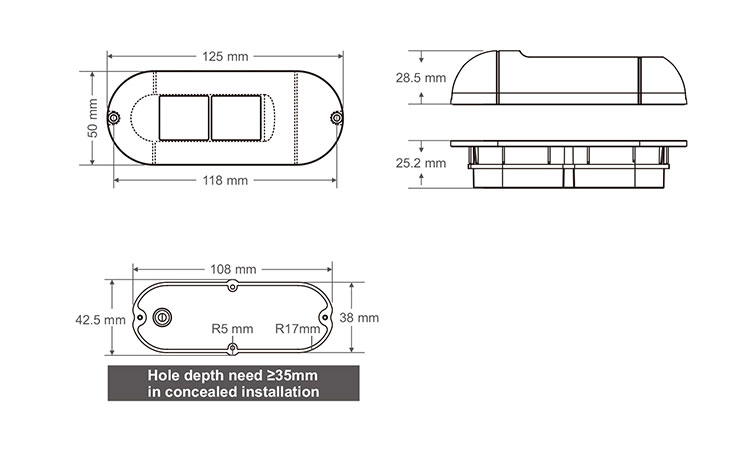

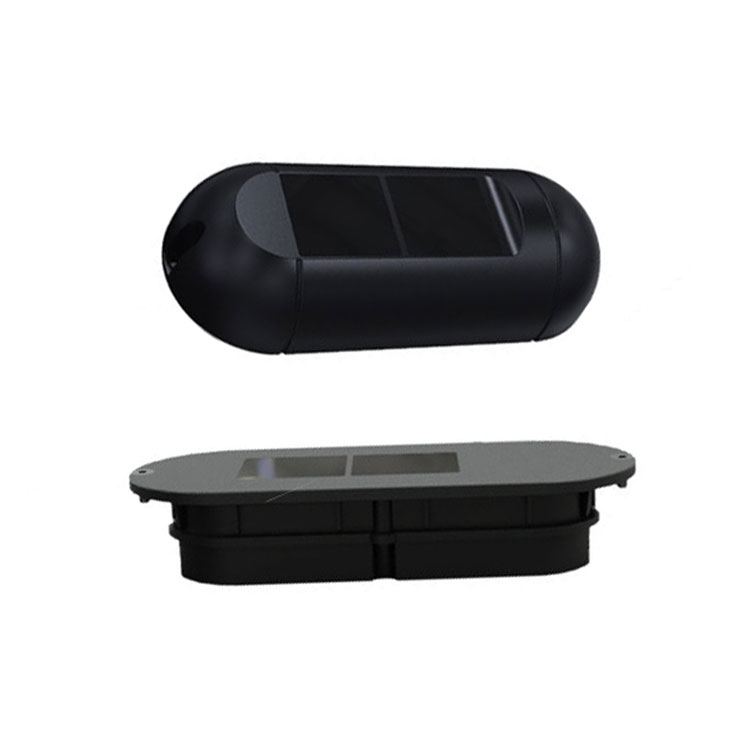

3, Flexible installation method, top installation, side installation, surface and hidden installation.

4, The diameter of 10cm light spot, sensing distance is from 0.8 to 10 meters, and setting casually.

5, With CE certificated, and there are versions available that comply with the EN16005 standard.

6, All states of the sensor are indicated by LED indicator lights and a beeping voice prompt.

PRODUCT APPLICATIONS

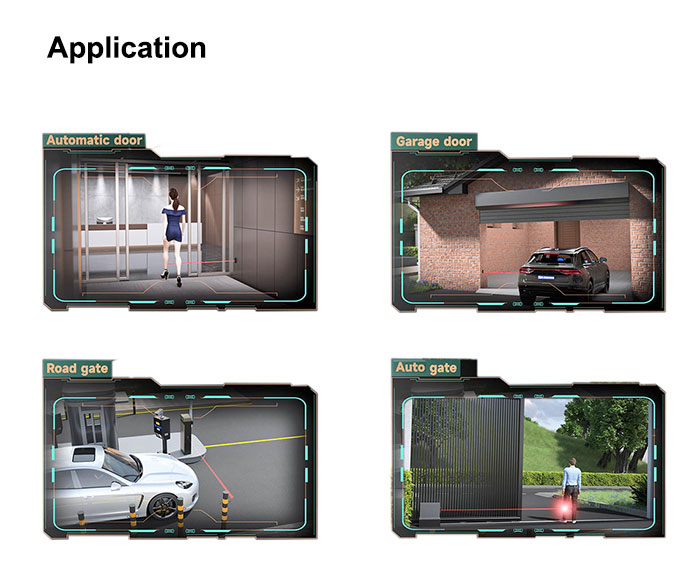

Scenario 1: This Laser curtain sensor is ideal for automatic sliding doors in some high-traffic public and commercial entrances.

Scenario 2: It is also suitable for installation on residential or commercial garage doors, providing necessary safety protection for vehicles and personnel.

Scenario 3: For parking lot entrances, toll booths, and secured areas, our light curtain is used in conjunction with vehicle access barriers (boom gates).  It also protects pedestrians and cyclists who might attempt to cross after a vehicle has triggered the sensor.

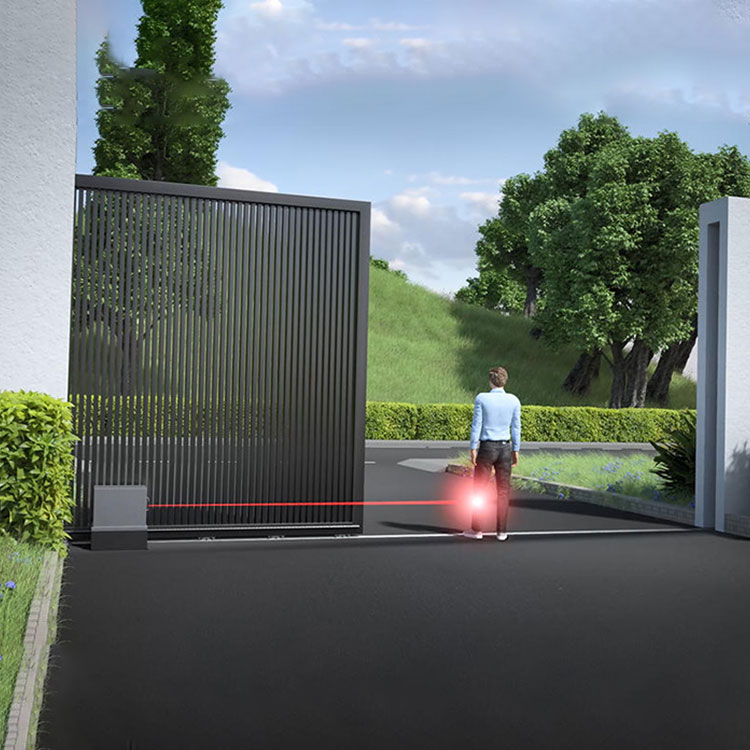

Scenario 4: For electric gates at private residences, gated communities, and agricultural facilities (like farms and warehouses), our light curtain offers robust and dependable safety.

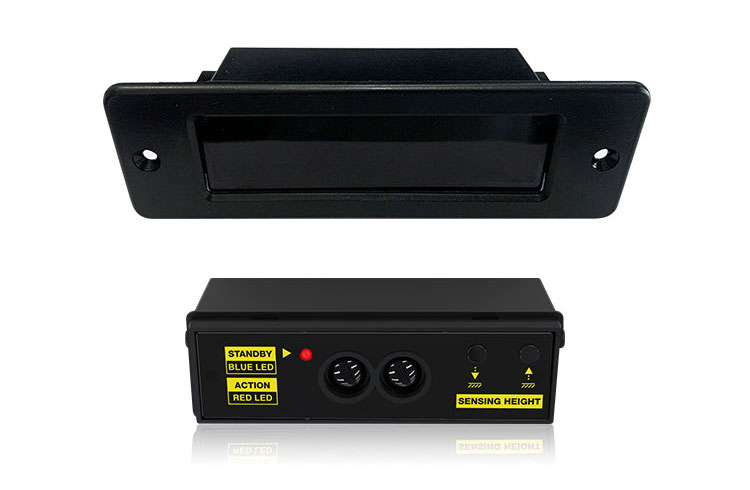

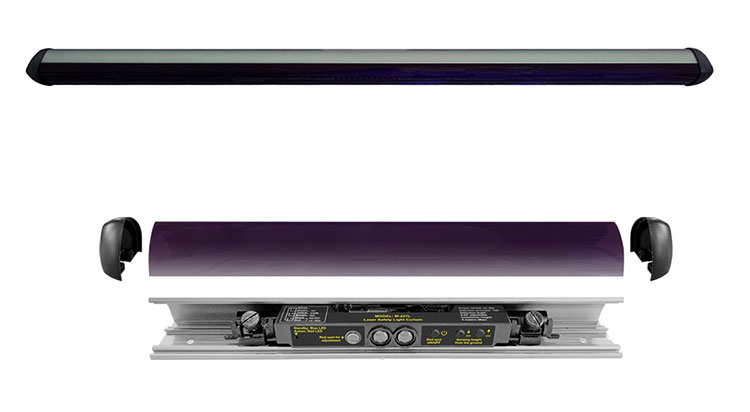

RELATED PRODUCT COMPARISON

time-of-flight technology plays a crucial role in the application of anti-pinch safety sensors for automatic doors. We also provide different types of sensors for various scenarios and requirements. The following are the similarities and differences among our three models of Safety Presence Door Sensors.
