Laser Safety Curtain Moving Sensor

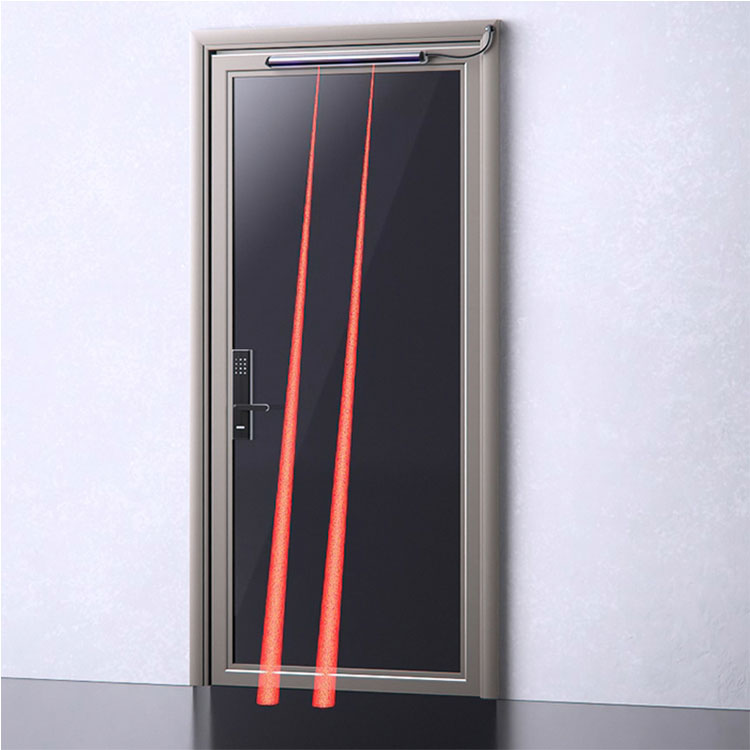

Door Safety Laser Scanner, is suitable for 90° swing door, revolving door, other induction door etc, follow the movement of the door leaf,  as a safety presence function. Utilize Time-of Flight technology, measured and recognized the person and object, send the door opening signal to prevent from injury.

Compared with infrared sensor, more fast response speed and more accurate, and it can accurately detect the human body or objects in the automatic door moving area and avoid collisions.

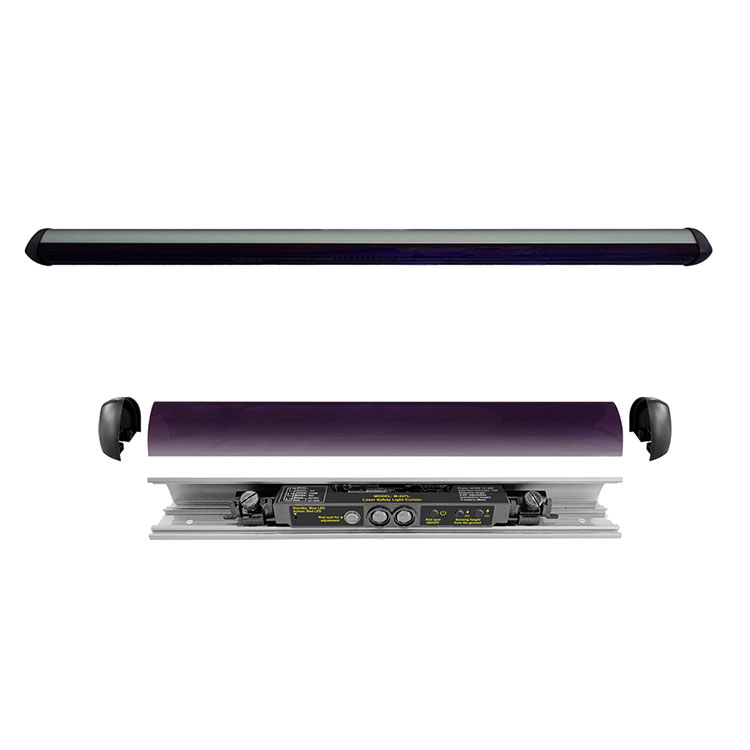

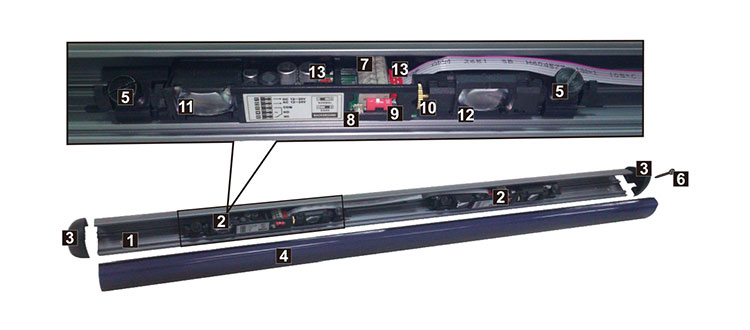

PRODUCT OVERVIEW

① End cover

② Filter front cover

③ Aluminum housing

④ Mounting Brackets

⑤ Indicator light

⑥ Positioning red dot

⑦ Transmitting cabin

⑧ Receiving cabin

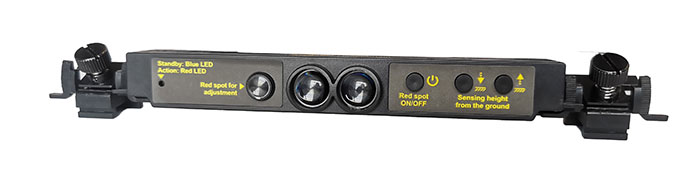

⑨ Positioning red dot switch

⑩ Scan range close to ground switch

⑪ Scanning range away from ground switch

⑬ Connection socket

⑫ Wire interface x 2

PRODUCT CHARICTERISTICS

1, The TOF technology is used to accurately detect the appearance of the objects(human body), which plays the function of safety presence, anti-collision and safety detection.

2, Industrial grade enhanced laser tubes, less laser excitation attenuation, no need to do state detection between the door machine, long standby, more convenient.

3, With strong adaptive ability to environmental deformation, temperature, vibration and other factors, excellent anti-sunlight interference performance, long and stable operation.

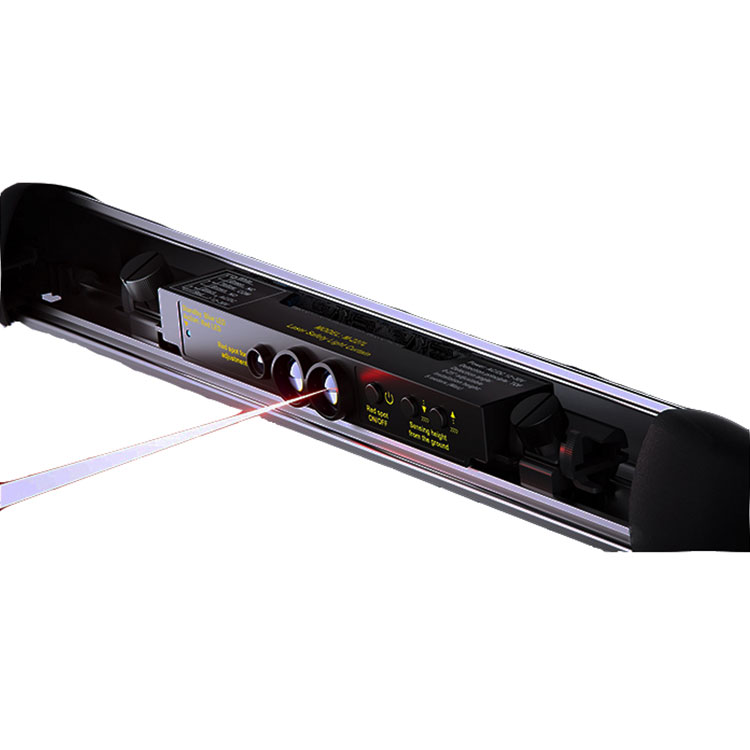

4, With visible positioning red dot, easy installation and debugging, clear beam protection position and range.

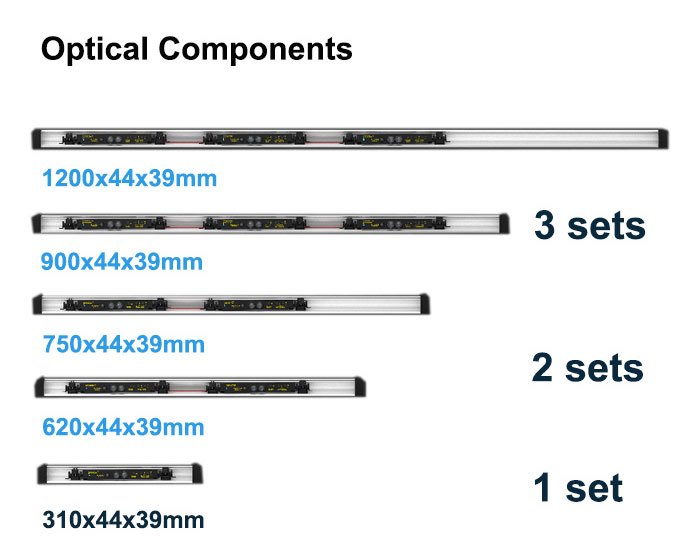

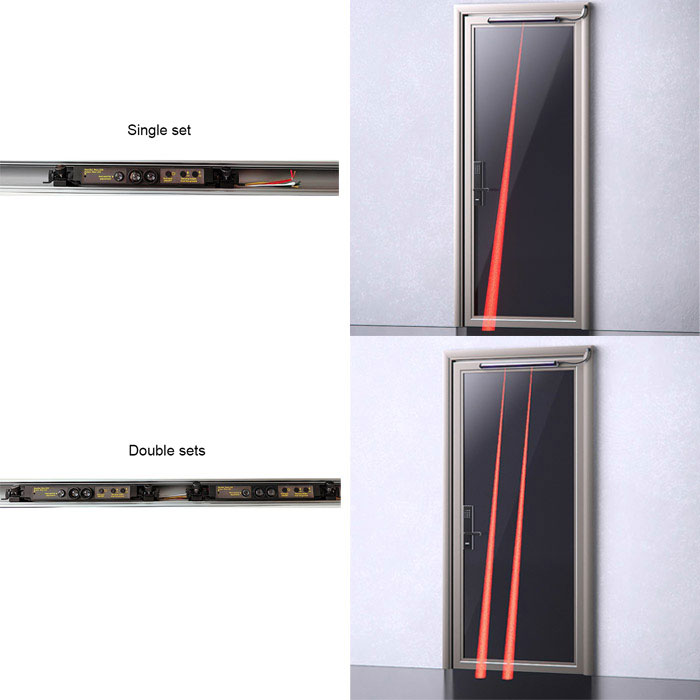

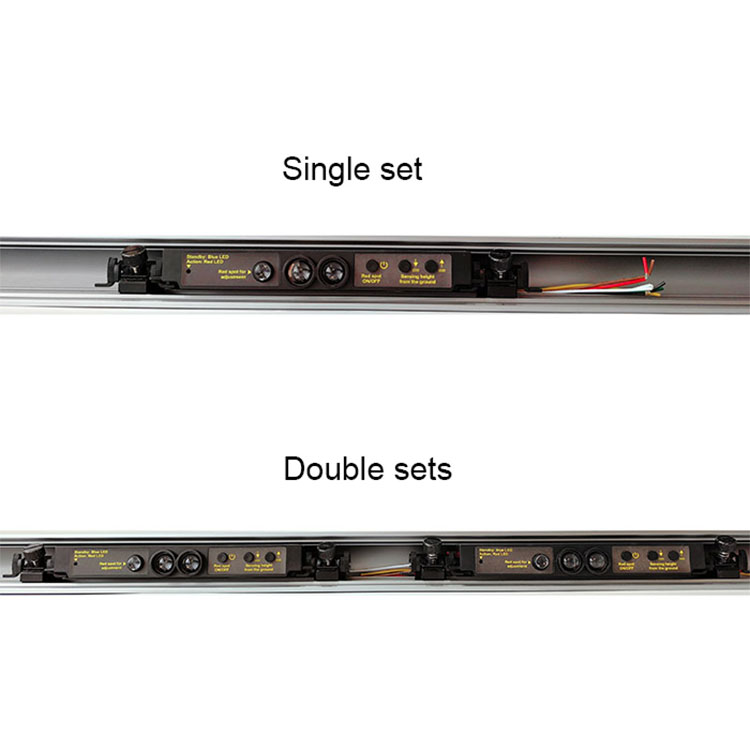

5, 310x44x39mm,620x44x39mm,750x44x39mm,900x44x39mm,1200x44x39mm, four length sizes are available for selection, suitable for different scenarios.

6, With CE certificated, complied with EN16005 standard.

ADJUSTMENET & NO/NC MODE

Adjust the scanning range by button

The scanning range total 7 levels, push button once, one beep voice, scanning range increase or decrease about 5cm, if you hear two beep voice, it's mean the scanning range is to the limit.

Working mode: Normally mode, stable mode

The stable mode is recommended when there are unstable environmental factors such as floating blades, complex ground, and rainy days. The factory default is normal mode.

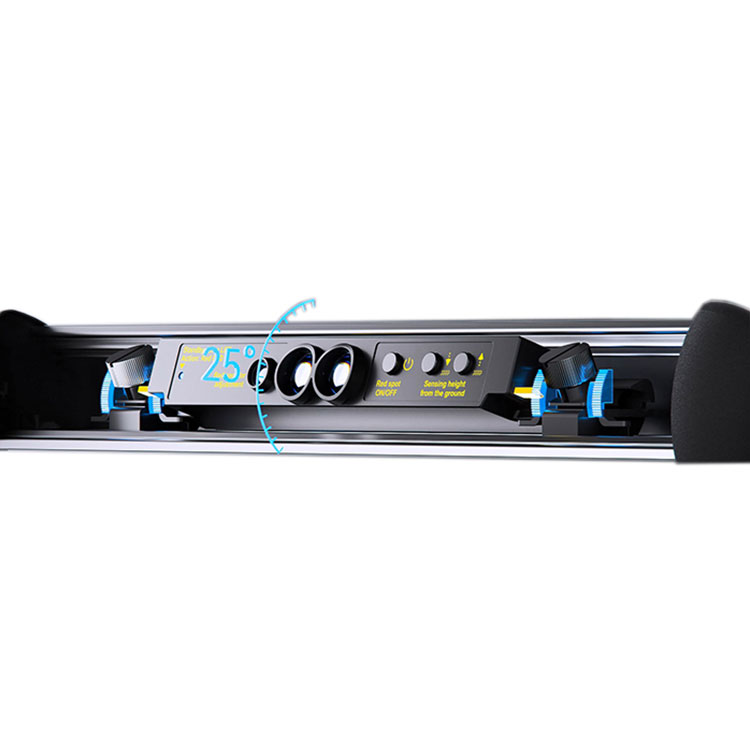

Tilt angle:

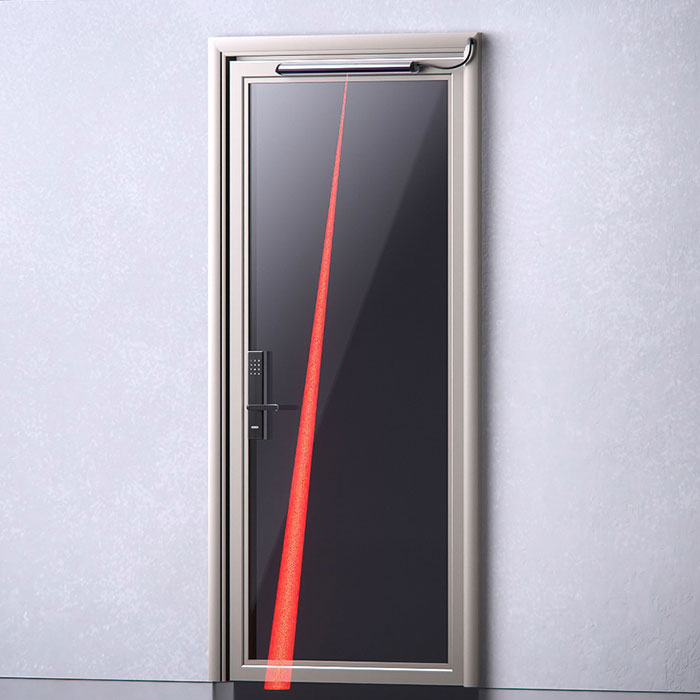

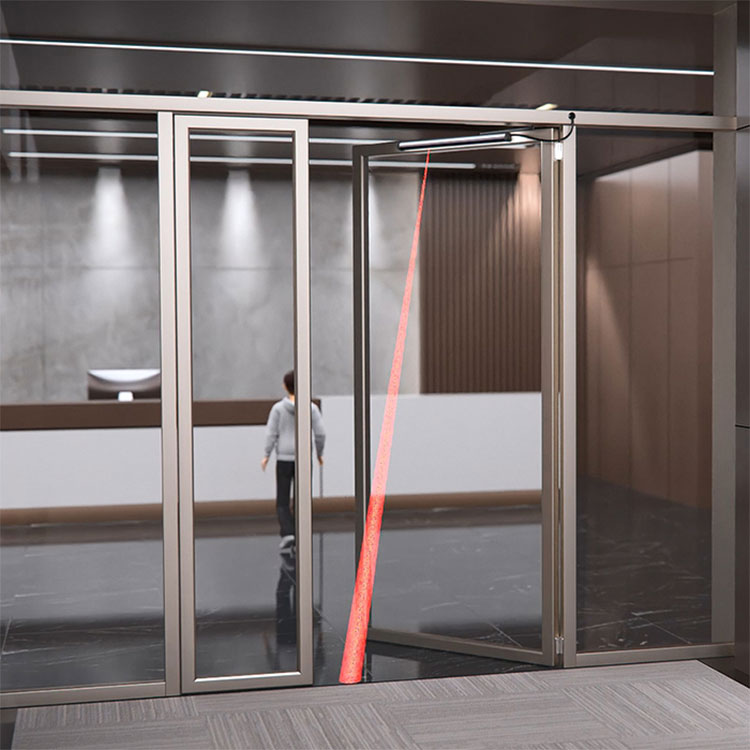

When install it on the door leaf, recommended that the tilt angle of sensor will be ≥15°，ensure laser beam doesn't scan the door leaf, sensor detection will be more stable.

Output signal normally open(NO) /normally closed(NC) switching settings:

1. After short pressing the “Red spot ON/OFF” switch 6 times within 3 seconds, a long beep is heard, and the signal output switches to NC mode.

2. After short pressing the “Red spot ON/OFF” switch 6 times within 3 seconds, you will hear a continuous short beeps, and the signal output will switch to NO mode.
