In public places such as office buildings, factories, hospitals, and shopping malls, a wireless keypad door access control kit is an excellent choice for rooms that require authorized entry. The three-piece comprehensive solution designed to integrate effortlessly with your automatic door systems. This innovative system combines cutting-edge technology with robust security features, offering unparalleled convenience and control over access points. Ideal for both residential and commercial applications, it provides a modern and efficient alternative to traditional key-based entry.
| Access control machine | Power controller |
| Working voltage: 4.2V-6.5V(4pcs AAA batteries) | Input voltage: 220V±10% |
| Working current: static≤50μA, dynamic 23mA | Door opening delay adjustment: 1~10s |
| Storage capacity: 1000 standard users(IC card) | Time different between unlock & door open: 0.5s |
| Opening Password: 1 x public password(4-digit) | Wireless square touch exit button |
| Opening methods: card, password, card+password | Working voltage: 3V(CR2032 button cells *2) |
| Transmitting distance: 30 meters in open area | Current: Static ≤10μA, Working 10.5mA |
| Battery use life: ≥12 months (100 times each day) | Wireless distance: 30 meters in open area |
| Output time: 1-99s adjustable | Wireless strip shape touch exit button |
| Working voltage: 3V(CR2032 button cells *2) | |
| Current: Static ≤5μA, Working 10.5mA |

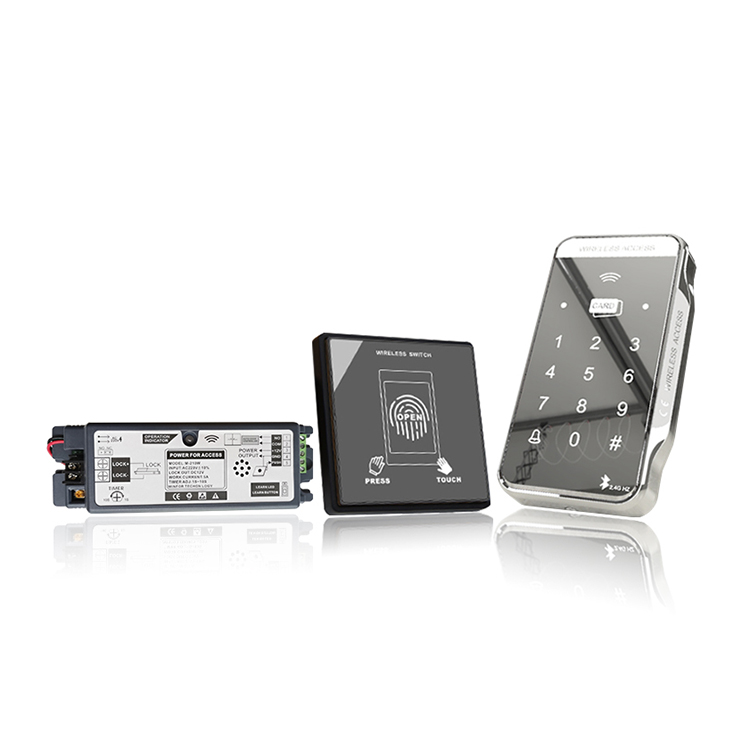

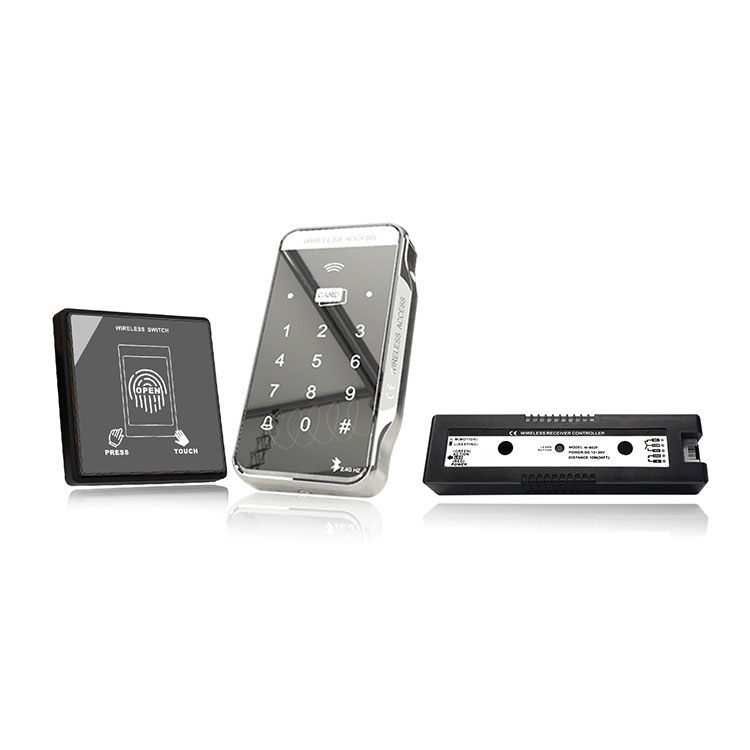

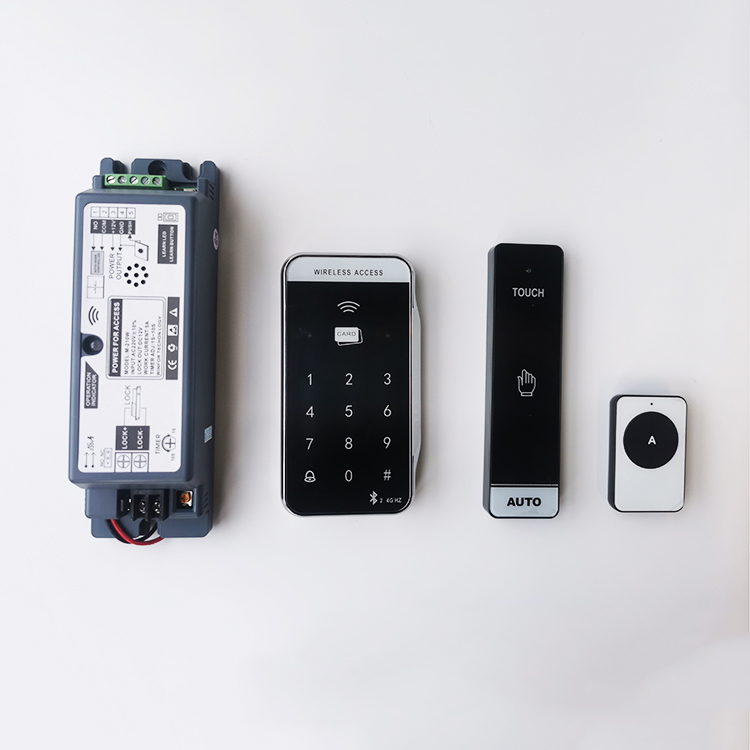

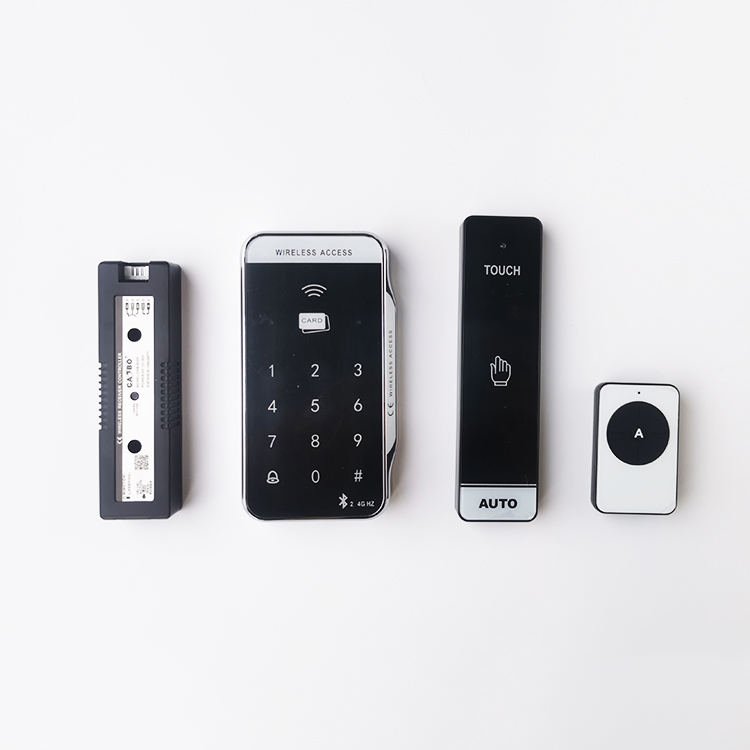

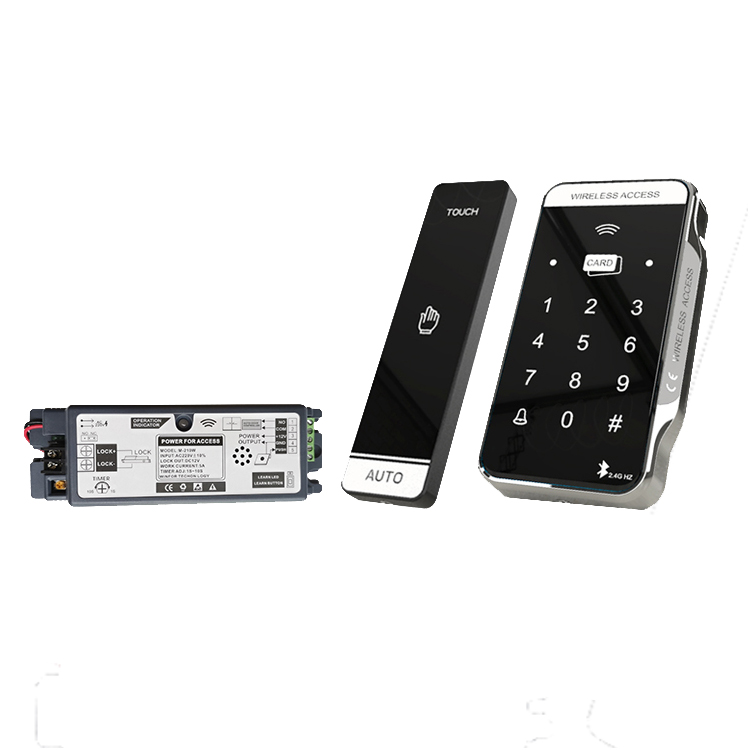

Components of the three-piece kit
1. Durable eypad reader that serves as the primary user interface. It features a backlit design for easy use at night, with password and fingerprint type.
2. Request to exit momentary switch, installed on the interior side, allowing personnel to exit the automatic door opening without triggering the alarm.
3. Power controller is directly connected with your automatic door operator. It receives the signals and communicate them to the system, triggering the opening of the door .
Charicteristics of the wireless access control keypad system
1. Multi-factor authentication for enhanced security, offers maximum flexibility for users.
RFID card, PIN code, fingerprint scanning, and two-way combination vertification. Easy and reliable operation eensuring flexibility and security for your automatic door access control system.
2. Wireless design and easy installation
Designed to minimized the installation complexity, wireless design of the keypad and switch are suitable for different scenario. It's ideal choice for places where wiring is inconvenient and a clean appearance is required.
3. Reliable performance and high security.
Wide compatibility with a variety of automatic door system, including sliding door, swing door, gates, also manual door. And it can also be equipped with an attendance system.
