Touchless Automatic Door Infrared Switch | CANBO M-602H

Colors: SILVER, BLACK

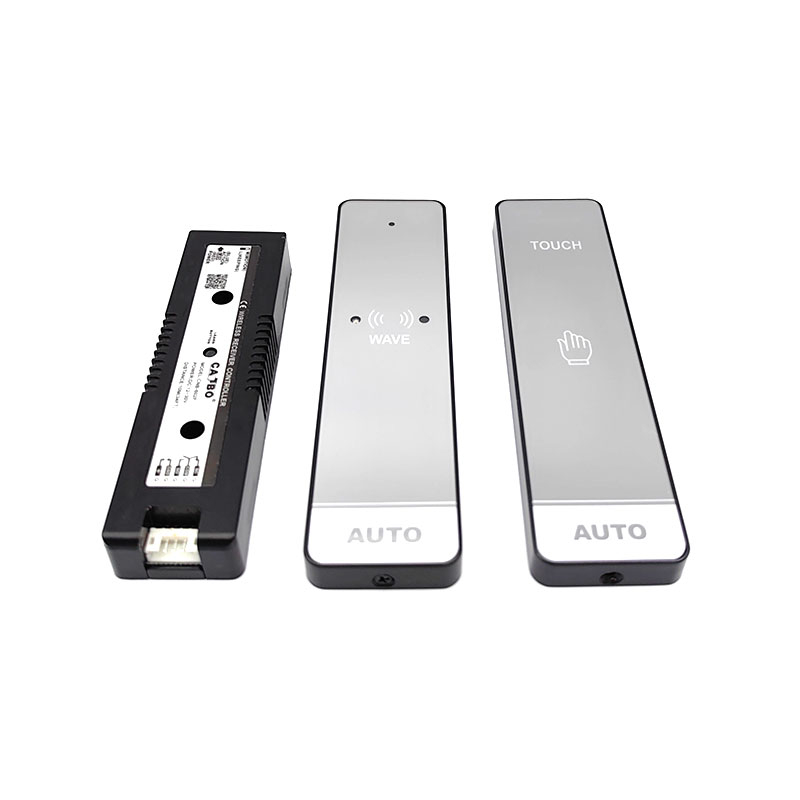

Kits: 1 switch+1 receiver / set;

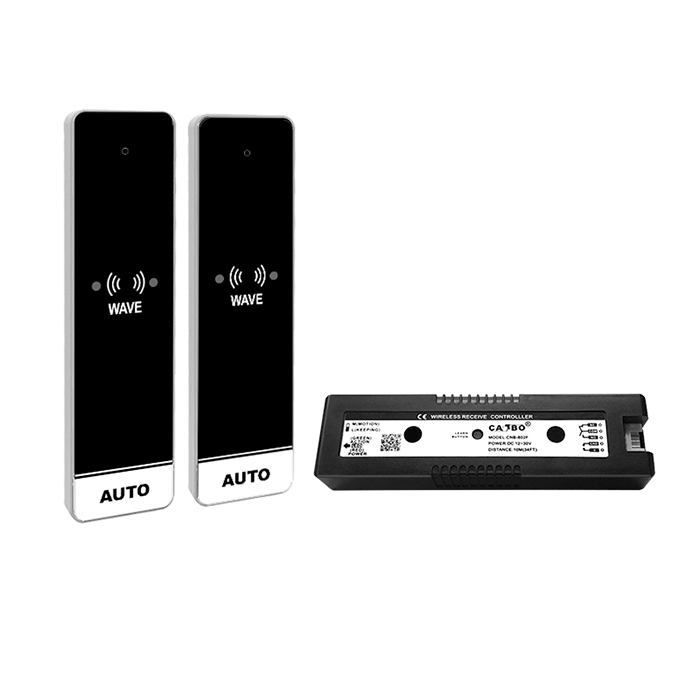

2 switces+1 receiver / set

MOQ: 10 sets

Model:
M-602H
Brand:
CANBO

Type:	1 switch+1 receiver 2 switches+1 receiver
Installation:	Wireless, surface mount
Availability:

Quantity:



Inquire Add to Basket

Touchless switch Wave Sensor Sensor Switch infrared sensor switch Automatic Door Switch exit switch non contact door switch

Touchless Automatic Door Infrared Switch | CANBO M-602H

Product Description

The 602H Touchless Automatic Door Infrared Switch is designed with a hands-free wireless transmitter and a receiver, responsible for emitting and receiving door opening and closing signals to ensure the reliable operation of the automatic door systems. Equipped with advanced infrared technology, precise detection of hand gesture and enabling non-contact signal transmission. Wireless designed, it's suitable for all kinds of installation environment of automatic sliding doors, making it an ideal choice for entryways and exits in commercial buildings, shopping malls, airports, hospitals, and similar venues.

602H_Touchless Automatic Door Infrared Switch (11).jpg

It can also be integrated with other automatic door accessories, such as activation and anti-pinch sensors, access control keypad, electric locks, and more.

Key Features

Advanced The infrared sensing activation function transmits a signal to enabe the automatic opening and closing of the door.
Hands-free and wave your hand to activate the door, convenient and hygenic.

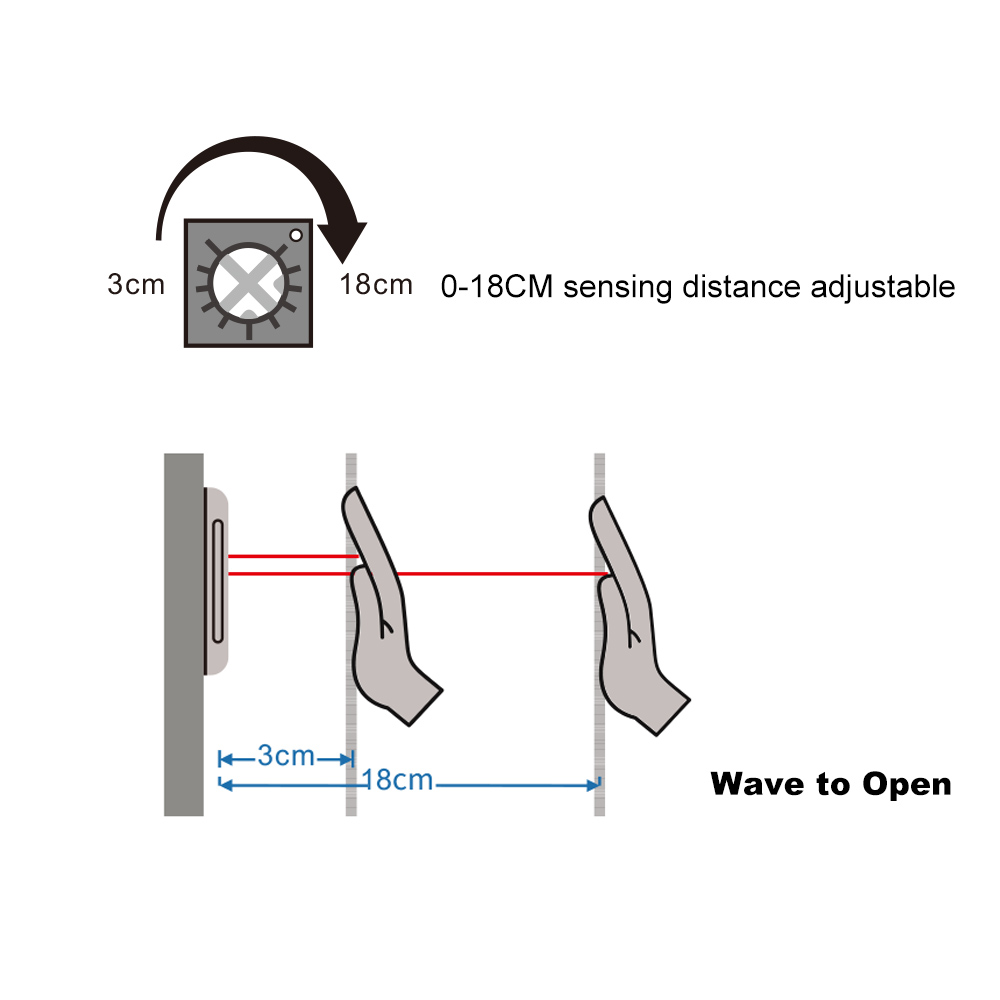

602H_Touchless Automatic Door Infrared Switch (9).jpg

Easy installation with wireless design, and 3-18cm adjustable detection range.
Momentary and latching mode can be set.
CE, ISO9001 certified for global compliance.
Compatible with most automatic door control systems.
Low energy consumption and long service life.
Ideal for high-traffic commercial and public areas.

Technical Specifications

Wireless Receiver	Touchless Transmitter
Power supply: DC 12-30V	Power supply: 3V(2pcs 3V button battery)
Static current: 34mA	Standby current: ≤22μA / 40μA
Operating current: 62mA	Emission current: 10mA
Contact holding time: 1.5 secs	Sensing distance: 3-18cm
Dimension: 110(L)x30(W)x15(H)mm	Infrared frequency: 38KHz
	Dimension: 135(L)x36(W)x10(H)mm

Applicable Scenarios

The 602 Infrared Touchless Switch is perfect for various automatic doors in public and commercial area, including:

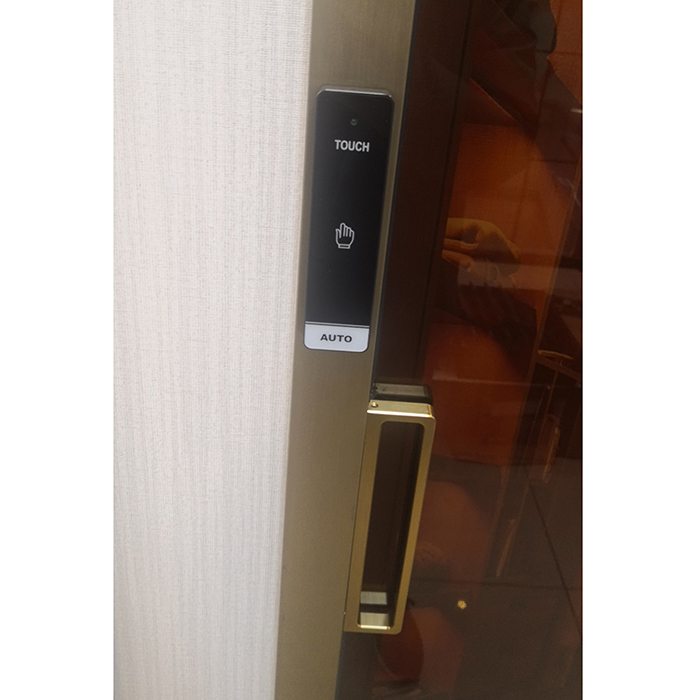

602H_Touchless Automatic Door Infrared Switch (7).jpg

Office buildings and government facilities

Shopping malls and retail stores

Factory plants and workshop warehouse

Airports and train stations
