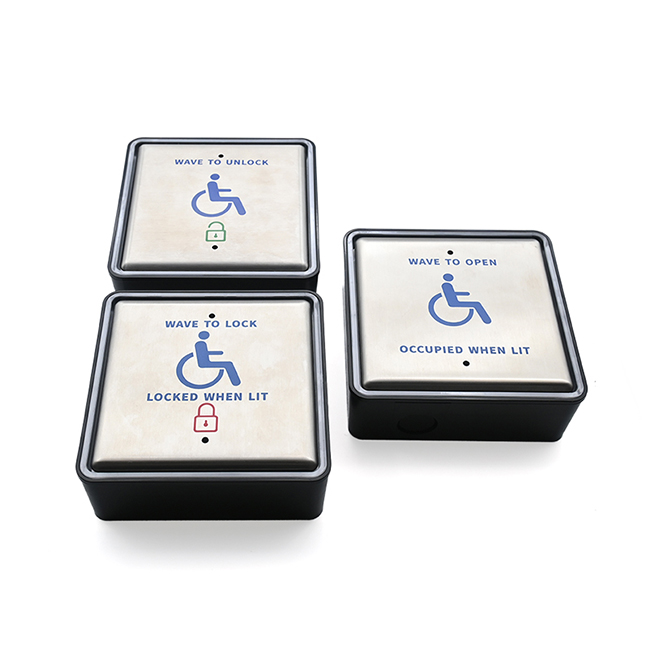

Accessible ADA Entrance & Exit Switch Kit for Automatic Doors | CANBO M-522 Stainless Steel Non-Touch Sensor

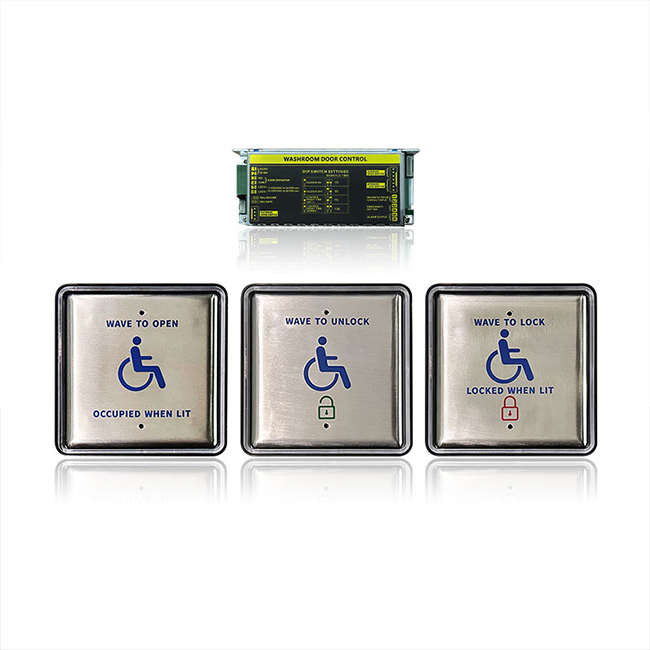

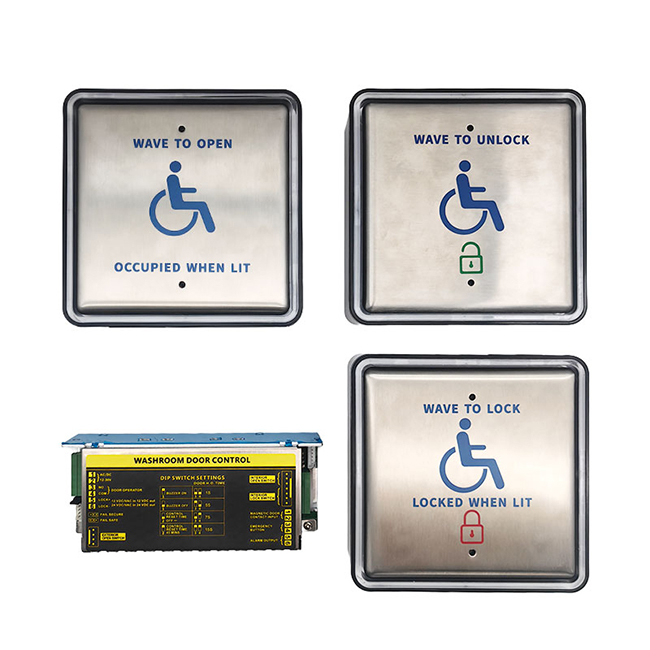

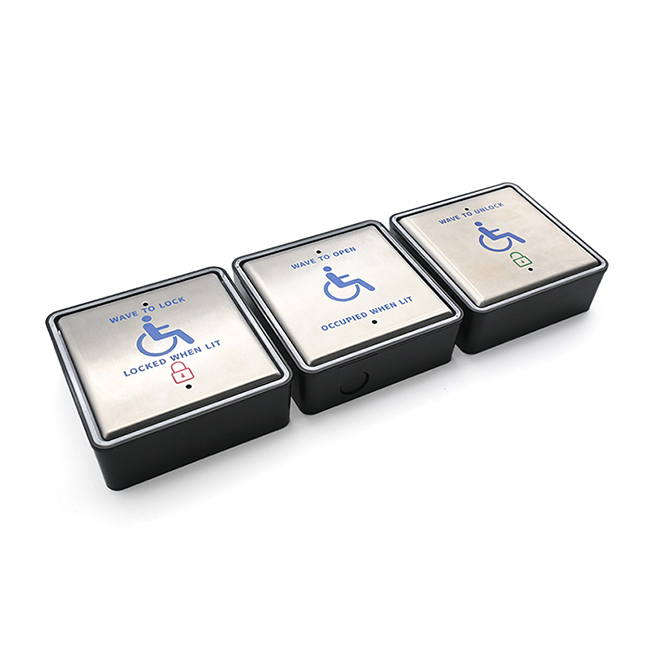

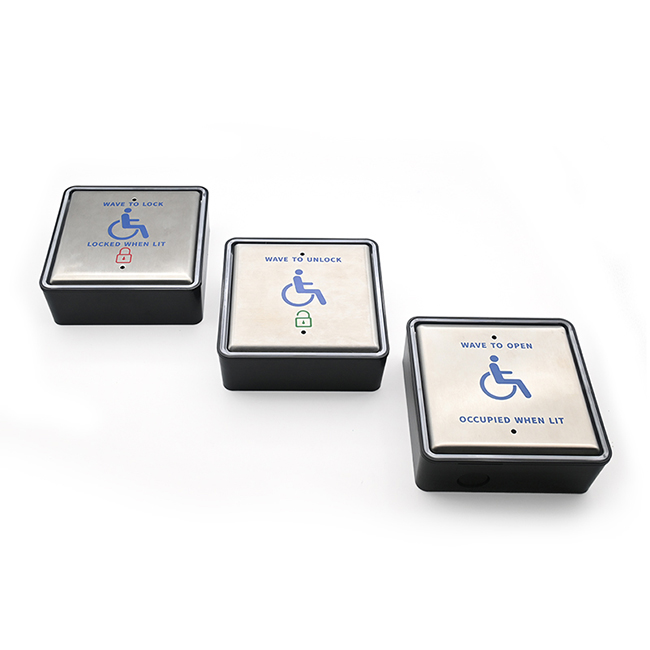

The Accessible ADA Entrance & Exit Switch Kit is a premium solution designed for automatic doors in privacy-sensitive public spaces. Constructed from durable stainless steel, the kit includes one controller and three switch panels:

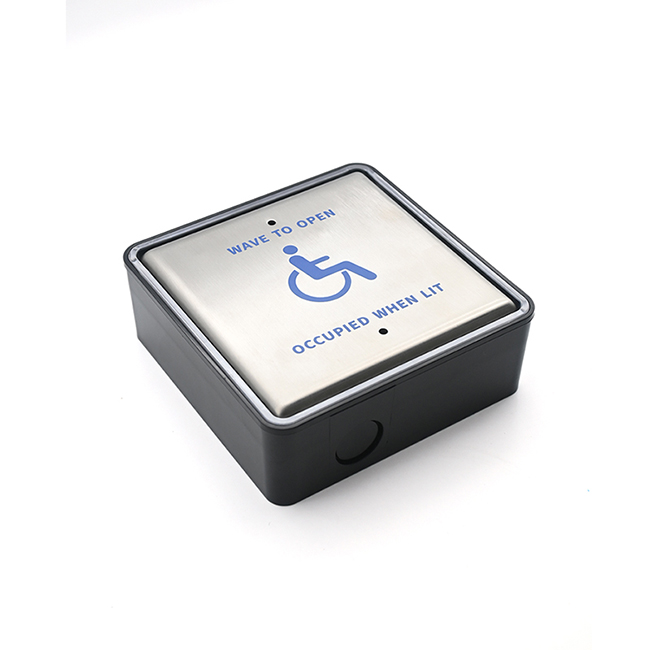

Exterior panel: Hand wave to open, with occupancy indicator

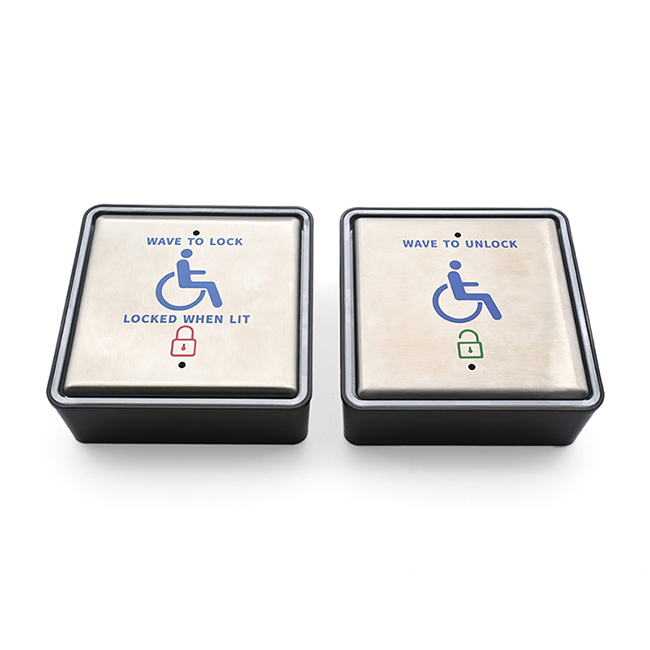

Interior panels: Hand wave to lock, hand wave to open, each with LED indicators
This system provides hygienic, hands-free door control, ideal for restrooms, changing rooms, nursing rooms, and other public privacy areas. Its touchless operation helps maintain cleanliness while offering convenience and compliance with ADA accessibility standards.
Parts & Installation

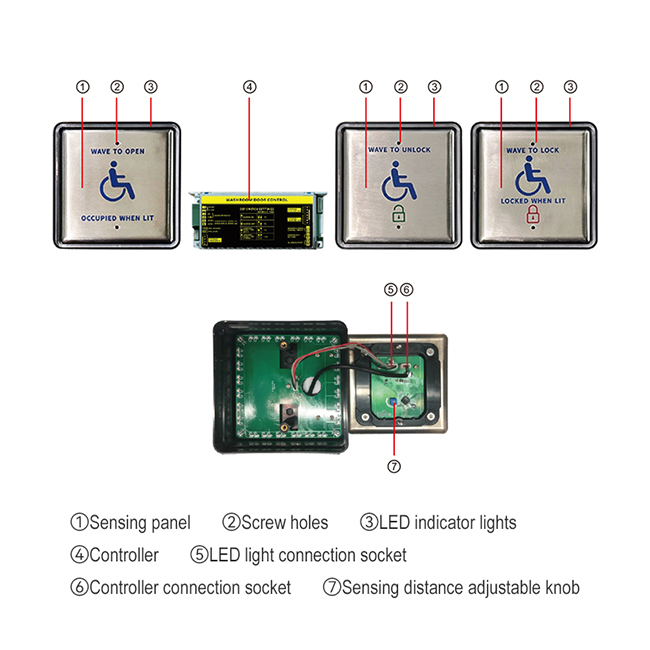

Included Components:
1 x Central Control Unit
1 x Exterior Hand Wave Panel with Occupancy Indicator
2 x Interior Hand Wave Panels with Lock/Open LED Functions
Installation Guidelines:
1. Mount the exterior panel outside the privacy room and interior panels inside.

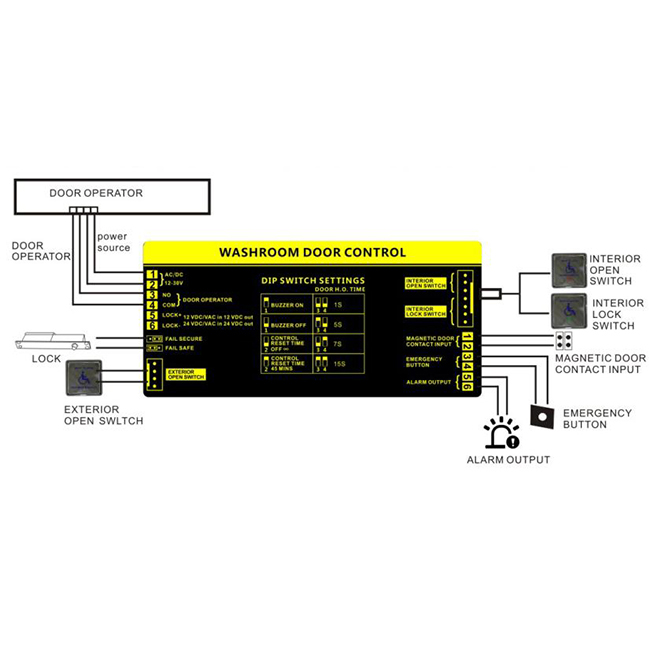

2. Connect the panels to the central controller via included wiring. Additionally, other necessary accessories—such as door contact switches, emergency switches, alarms, and electric locks—can also be connected.
3. When the first power on, with long beep sound, outer panel will initialize learning, and blue light is on. 2 pieces inner panel will initialize and blue light flashing, and the sensing panel is in the learning background state, after 5-8 seconds of learning, blue lights are off, outer panel's blue light is on, entering the standby state.
4. Ensure proper LED visibility for easy user indication of door status, adjust the induction distance (0–12cm).
5. DIP Switch Setting: Buzzer (ON/OFF), Locked time setting (45 minutes / Unlimited), Relay output time setting(1 seconds, 5 seconds, 7 seconds, 15 seconds).
Advantage & Value
Stainless steel metal large panel design – robust, durable, and hygienic.
Capacitive induction sensing – detects hand presence without physical contact, replacing traditional mechanical switches.
Advanced software algorithm – strong anti-interference performance for reliable operation.
Adjustable sensing distance (0–12cm) – customizable for different environments and user heights.
Relay dry connect output – easily integrates with various automatic door access systems.
LED indicators – clear, user-friendly signals for open, locked, or occupied status.
Technical Parameters
| Power supply: | AC/DC 12~30V |
| Static current: | 93mA(DC12V power supply) |
| Action current: | 260mA(DC12V, not including electric lock) |
| Sensing mothed: | Capacitve sensing technology |
| Sensing distance: | 0-12cm(can be adjustable) |
| Panel size: | 129mm(L)×129mm(W)×47mm(H) |
| Controller size: | 143mm(L)×60mm(W)×40mm(H) |
FAQ
Q1: Can this system be used in high-moisture areas like restrooms?
A1: Yes, all panels are made of corrosion-resistant stainless steel and suitable for wet environments.
Q2: How many doors can one controller operate?
A2: This kit is designed for a single door with one exterior and two interior panels. Multiple kits can be linked for multiple doors.
Q3: Is the induction sensor adjustable?
A3: Yes, the sensing distance can be set between 0 and 12cm to suit different installations.
Q4: Do you have other styles of switch kits?
A4: Yes, please contact us and we will send more products informations to you.
