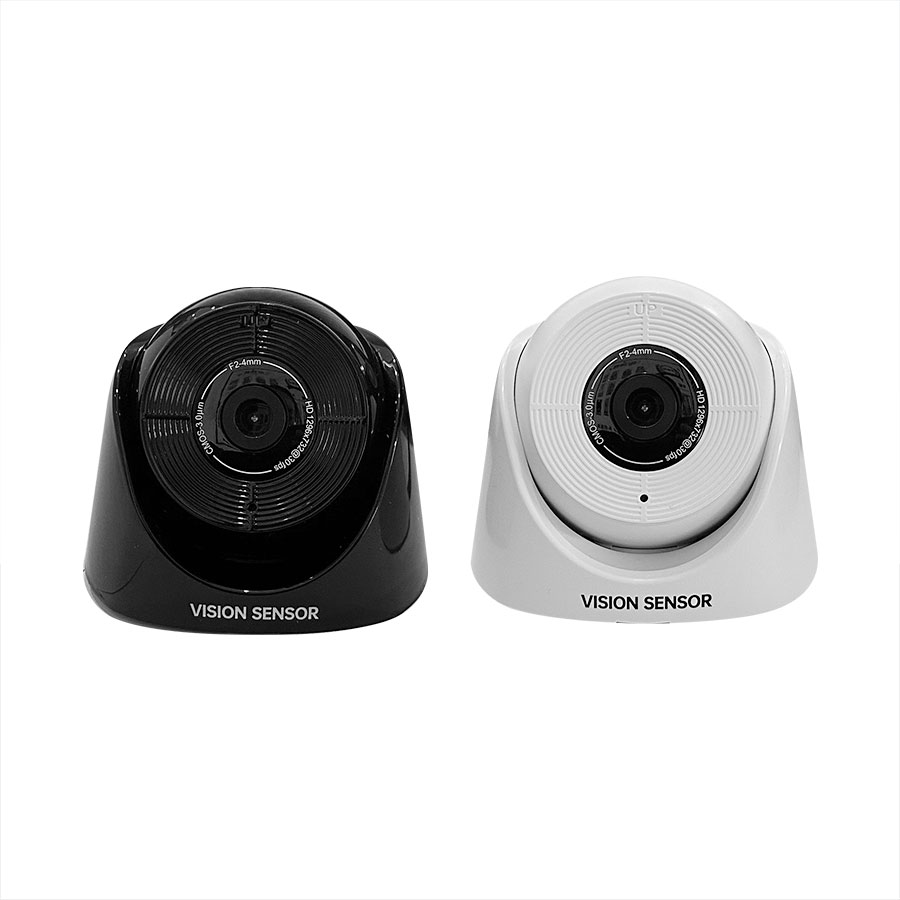

LV801 Human Recognition Automatic Door Motion Sensor

Color: White, Black

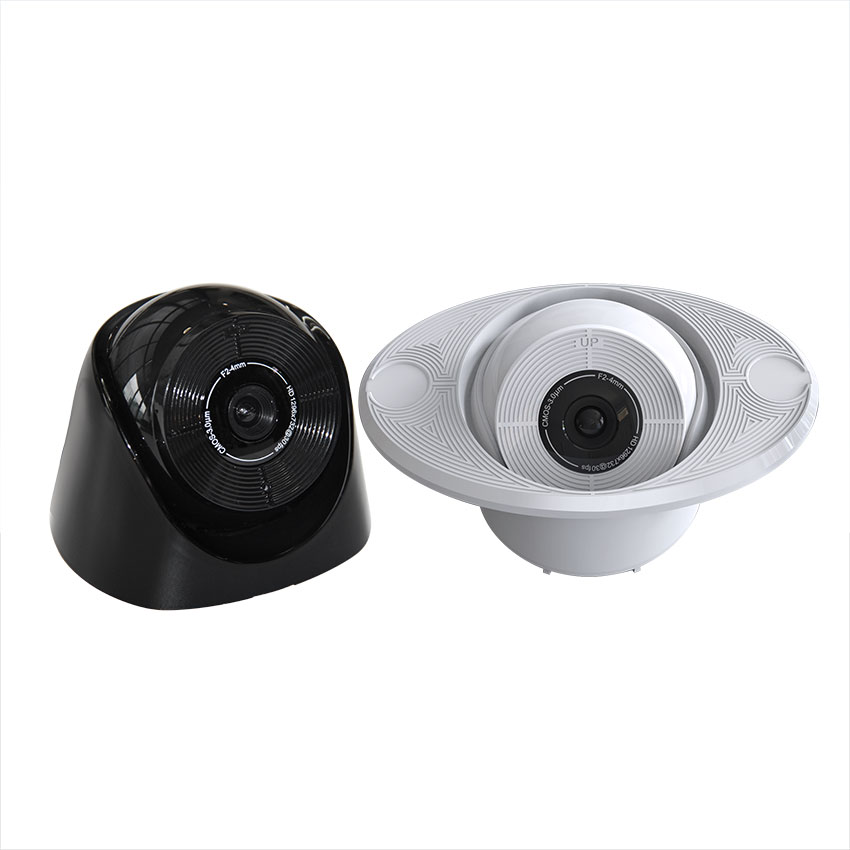

Installation: Exposed Installation, Concealed Installation

Installation Height: 6 Meters

Model:
LV801
Brand:
CANBO

Color:	Black White
Availability:

Quantity:



Inquire Add to Basket

Motion Sensor Camera Sensor Automatic Door Sensor Human Recognition Sensor Door Motion Sensor

Key Functions

Human Image Sensor

LV801 Image Recognition Sensor is an advanced smart sensor, designed for pedestrian access security and door motion function for all kinds of automatic door system. It also can be used as a monitor camera, as well as remote control the door by your phone.

Utilizing cutting-edge AI technology, it delivers reliable human figure recognition and motion function in the detection area. Only detect the human image or movement, won't detect the objects, won't recognize and storage the facial data, decrease the fault trigger and enhance the security.

Easy and flexible to installation, suitable for exposed and conceaded mounting. The LV801 offers a reliable and intelligent access control solution for modern automatic door, making it ideal for both residential and commercial use.

Introduction

Multi-functional Door Sensor

Integrates motion detection and presence safety functions into a sensor, compact device for automatic door access system. Also it features real-time monitoring, and remote door opening capabilities. Convenient and security.

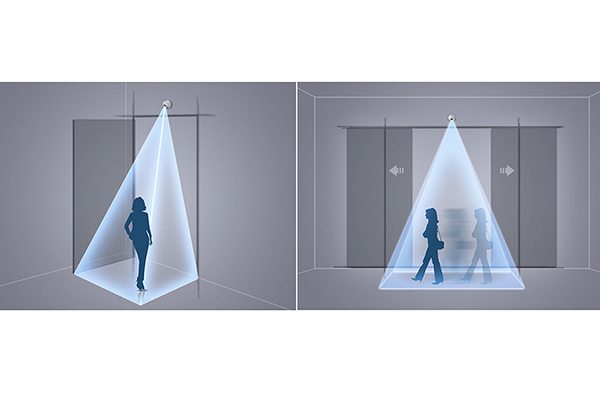

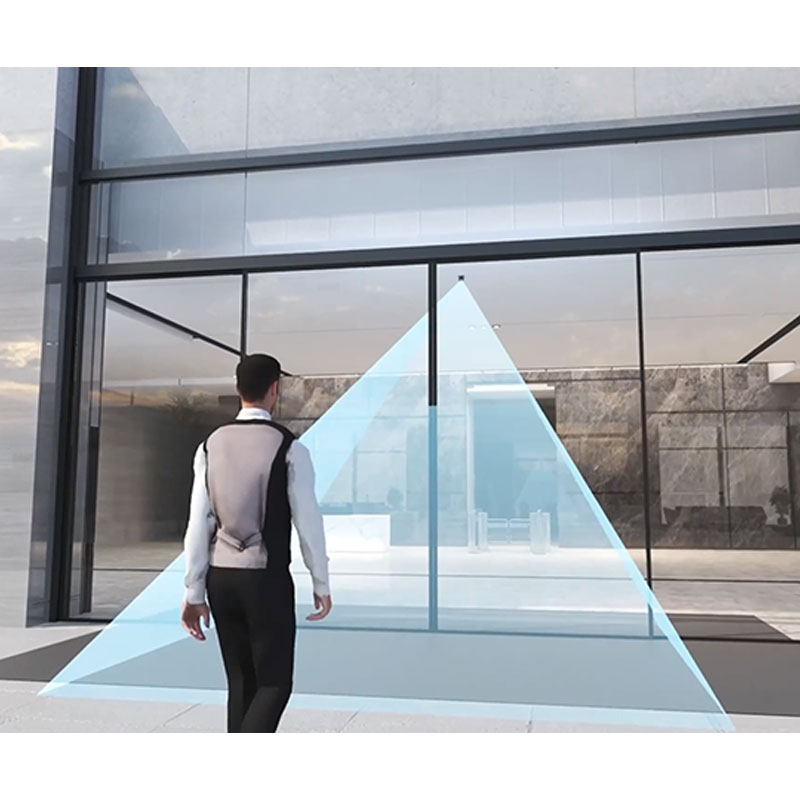

Stable Human Figure Recognition Sensor

Utilizes an AI-based Convolutional Neural Network (CNN) to accurately identify human body figures while effectively filtering out non-human objects. This ensures reliable detection, reduces false triggers, and enhances overall safety and efficiency.

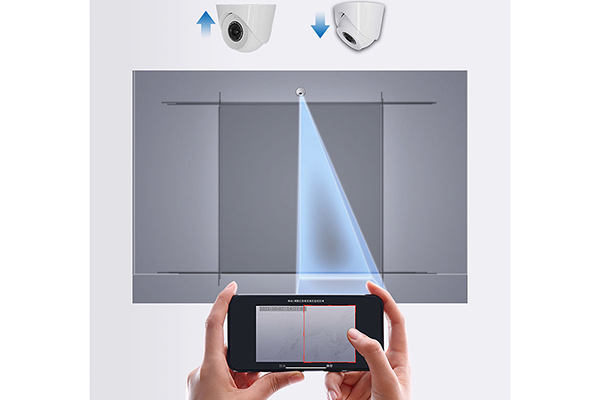

Adjustable Operating Modes

adjustable detection sensitivity for human movement and configurable detection range. Easy and flexible to adapt to various environments and user requirements.

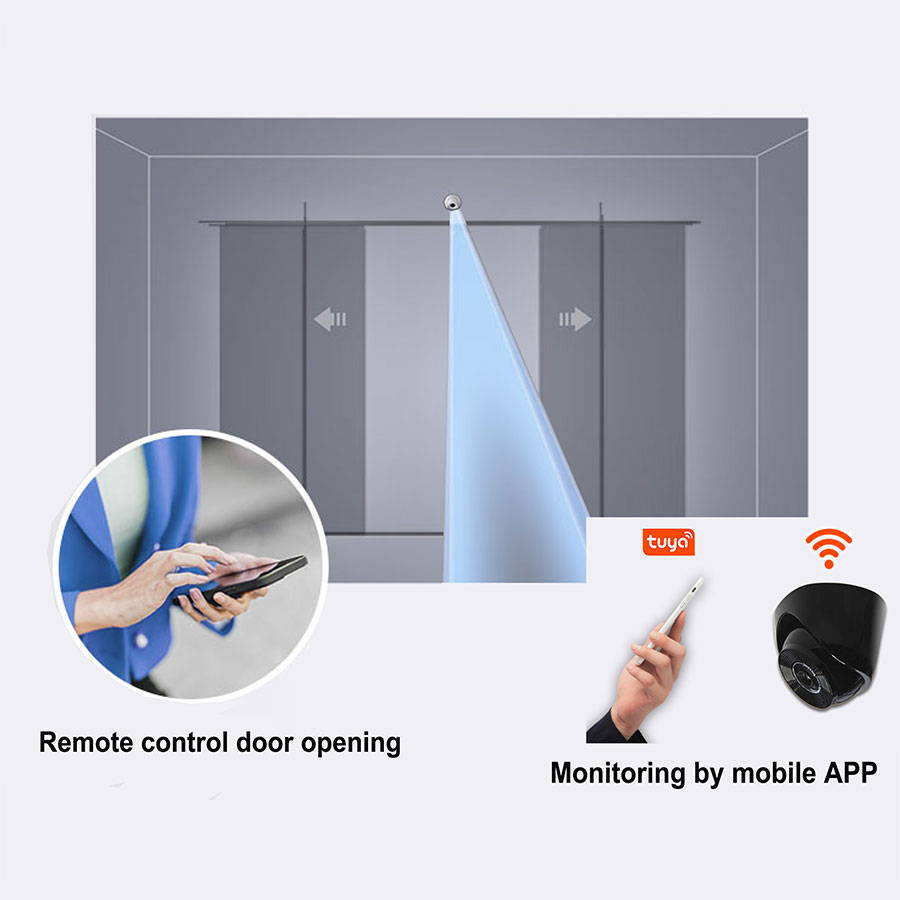

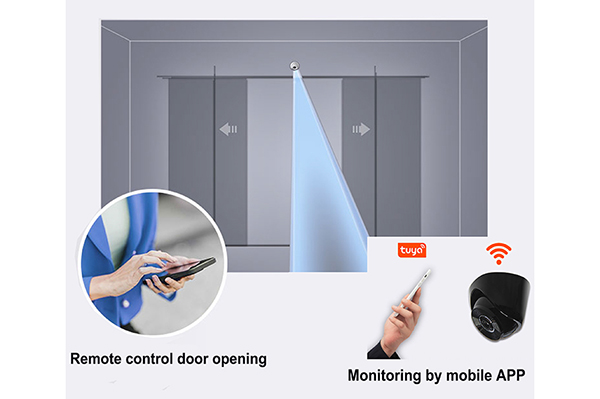

Smart Phone Remote Control

Enables convenient and secure control of automatic doors through the dedicated Tuya Smart app. Including remotely operate doors, monitor status, and manage access permissions directly.

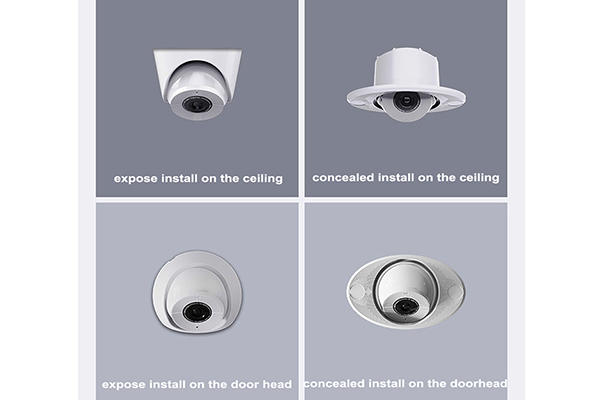

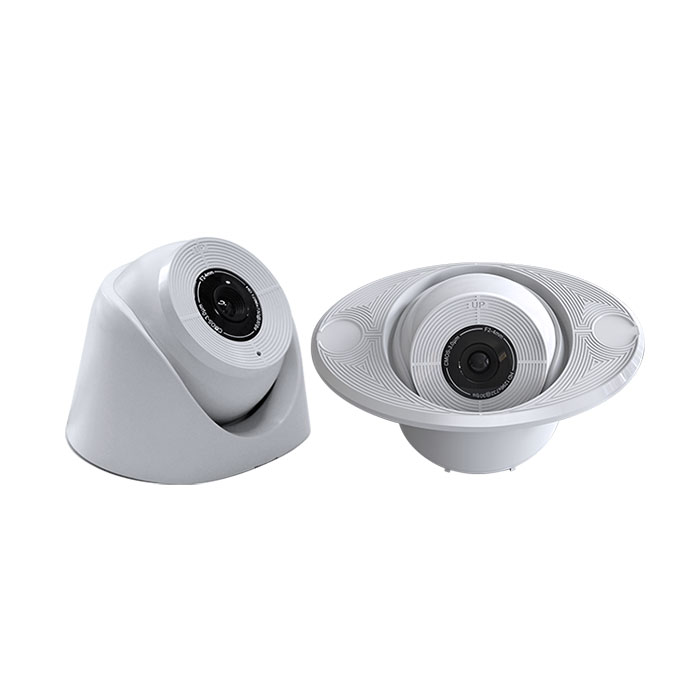

Flexible Installation Options

Supports versatile mounting methods including surface mounting, concealed installation, door header mounting, and ceiling installation. With a maximum installation height of 6 meters, high flexibility and adaptation.

Why Choose Us

Shenzhen Winfor Canbo Technology Co., Ltd., was established in 2006, it has been committed to the R&D, manufacturing and sales of automatic door control system related products, including Motion & Safety Sensor, photocell beam, Laser curtain sensor, touchless switch, restroom locked switch kit, function selector switch, access control keypad etc.

ABOUT US

SERVICE

01.

Integrated Manufacturer

Combining R&D, Production, and Sales. Maintain strict quality control, accelerate innovation, and provide cost‑effective products directly to our customers.

02.

Certifications

Compliant with International Standards. Including TUV, ISO9001, CE, FCC, RoHS, and EN16005.

03.

One‑Stop Shopping

Wide range and extensive selection of accessories, including motion and safety sensors, photocell beams, laser sensors, touchless switches, push buttons, foot switches, lock switches, function selectors, electromagnetic locks, and more.

04.

Customization

ODM & OEM Services Supported. Flexible customization services, develop tailored solutions that meet specific design, functional, and branding needs.

05.

Warranty

1 year Quality Assurance. We stand behind every item and provide responsive support to address any manufacturing ‑ related issues during the warranty period.

Technical Specification

Technical Specification

Main processor	INGENIC T31N
Main frequency	1.5GHz
Detection mode	Moving + human figure detection (Dual mode)
Pixel	1080P(HD) 1600*1200
Response speed	50ms
Monitor storage	TF card in FAT32 format, maximum 128GB memory
View adjustment	0-90° (expose installation), 0-45° (embedded installation)
Network distance	10-30 meters
Detection function	motion, presence, remote control opening, monitoring, Time setting, Infrared night vision
Signal output	Relay NO, NC optional
Power supply	AC/DC 12-30V
Standby current	230mA(DC12V power)
Working current	280mA(DC12V power)
Installation method	Expose or embedded installation on the door head, wall, and ceiling

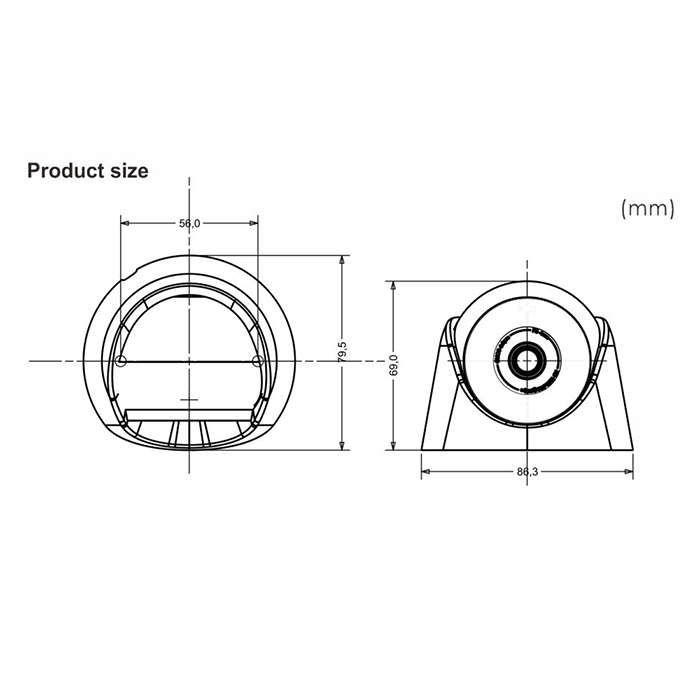

External dimension	86x80x69mm(expose), 130x82x71mm(embedded)
Installation height	≤ 6 meters
