Infrared Activation Opening Presence Safety Door Sensor

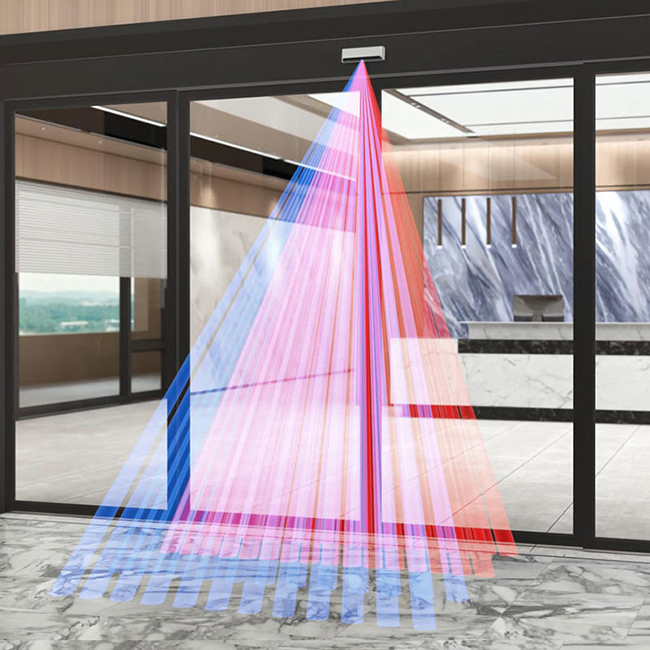

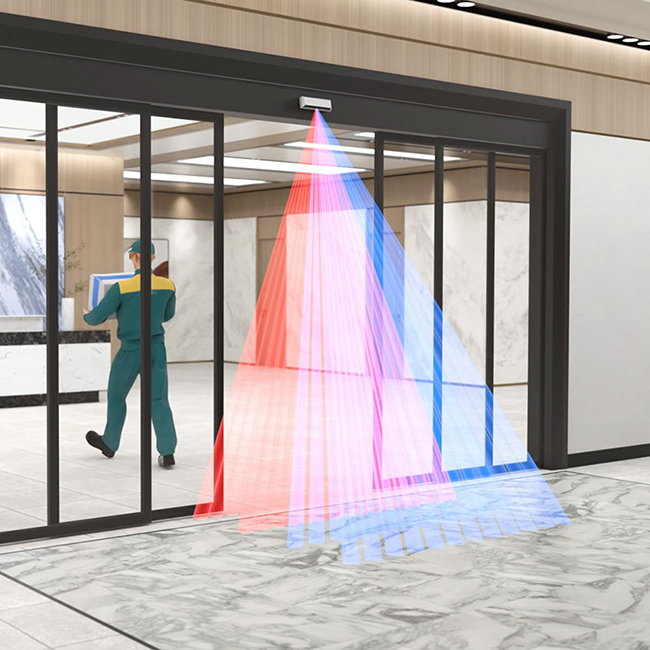

The M‑254 is a multi‑functional integrated sensor designed for automatic door systems. It operates by emitting active infrared beams to establish a defined detection zone in front of the automatic door. When a pedestrian enters or approaches the activation zone, the sensor sends a signal to the door controller, triggering the door to open. Should a pedestrian remain within the door leaf movement area, the sensor continuously signals the controller to keep the door fully open, preventing it from closing and thereby avoiding potential injury.

What advantages?

• Integrated design – suitable for automatic sliding door systems.

• Infrared detection technology – enables zone‑based presence detection for both activation and safety functions.

• Infrared vs. microwave – while microwave sensors offer a wider coverage area, infrared provides more precise and clearly defined detection zones.

• Adjustable detection range and sensitivity – with adaptive background environment compensation.

• Relay output – configurable as normally open (NO) or normally closed (NC).

Company & Products Range

We are a professional manufacturer specializing in automatic door products with 20 years of industry experience. Covering independent R&D, production and sales, we have been providing reliable OEM & ODM services to many well-known brands within the industry for years.

Our mainly products as following:

1) motion and safety sensors for automatic doors

2) switches and keypads for automatic doors

3) smart lock devices

4) others access control accessories

How it Works?

We offer a comprehensive range of sensor models to suit various automatic door types:

Automatic Sliding Doors

Integrated activation & presence sensors: Models 235, 254, 506, 507, 530, 532 series.

Dedicated activation sensors: Models 204G, 204E, 237.

Dedicated presence/safety sensors: Models 218D, 601, 901.

Automatic Swing Doors

Image‑based sensor series: LV801, LV802, LV803, LV805.

Laser light‑curtain safety sensors: Models 227L, 903.

In addition, we provide tailored sensing solutions for revolving doors, garage doors, high‑speed doors, and other specialised automatic door systems. Please contact us for application‑specific recommendations.
