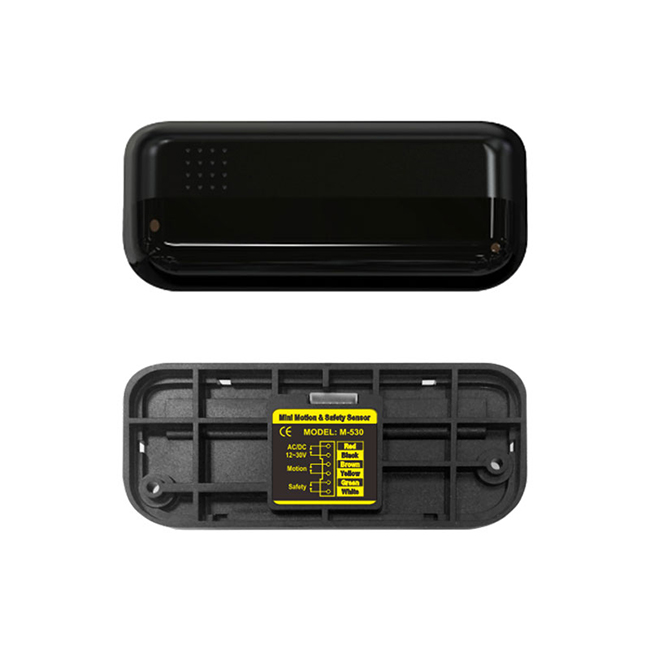

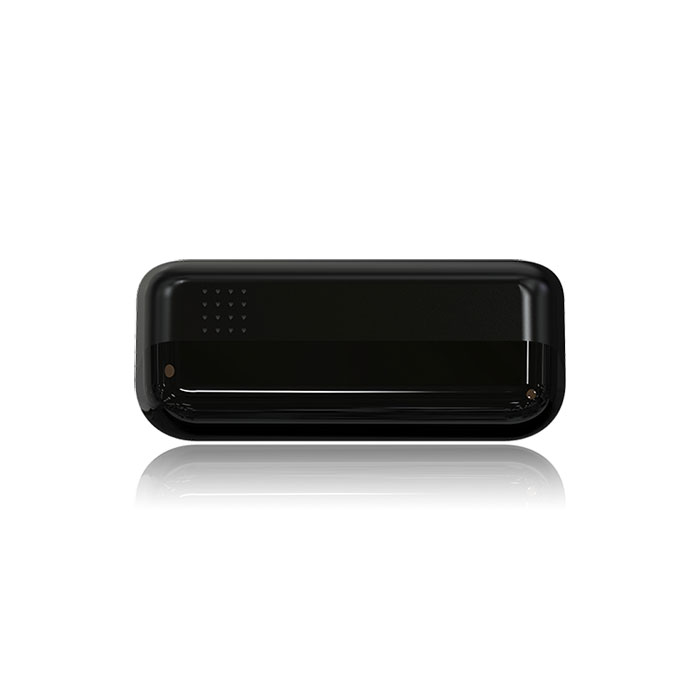

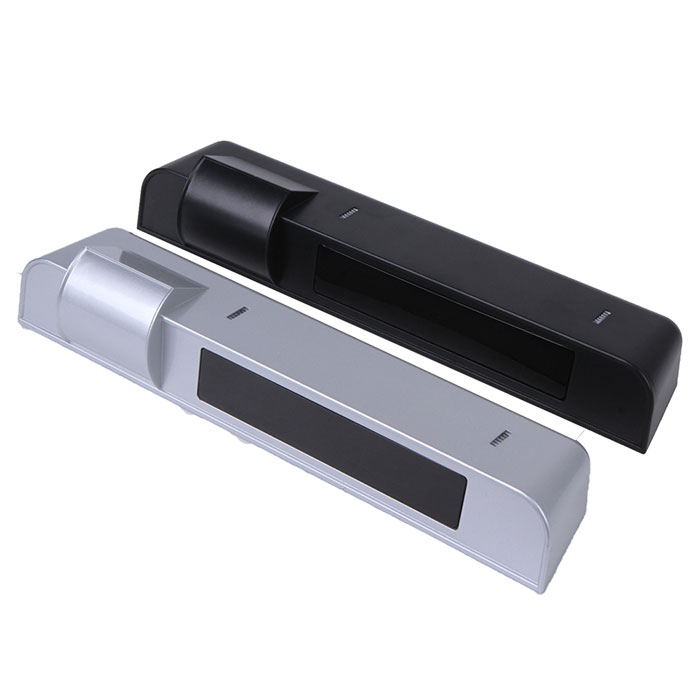

CNB-530 Access Control Motion Safety Door Sensor

Color: black

Installation height: 3 meters

Technology: Microwave & Infrared

Model:
M-530
Brand:
CANBO

Type:	regular type(530) EN16005(530E)
Availability:

Quantity:



Inquire Add to Basket

Access Control System Access Door Sensor Motion Sensor for Door Door Safety Sensor Motion Safety Door Sensor

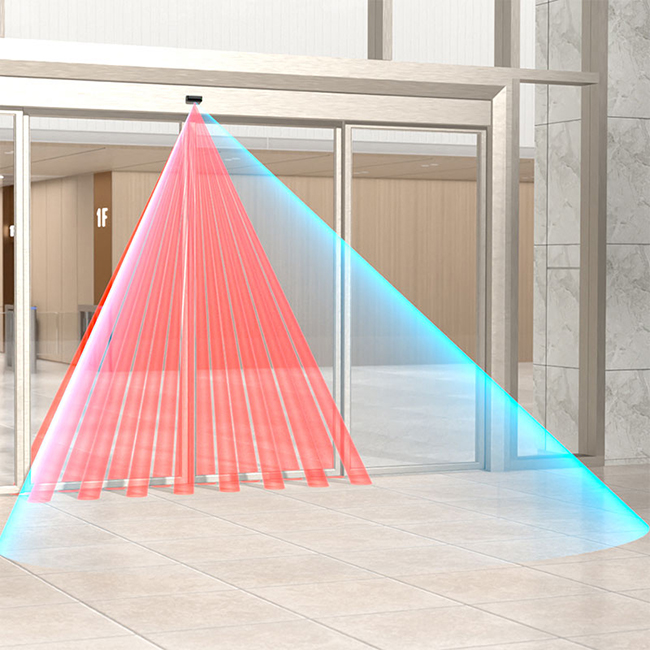

CNB-530 Access Control Motion Safety Door Sensor

Description

The CNB-530 Access Control Motion Safety Door Sensor is a high-performance sensor designed to enhance the functionality and safety of automatic doors. Combining microwave motion detection with infrared presence sensors, it provides both door activation and anti-pinch safety in a single unit. This advanced system ensures smooth, efficient door operation while safeguarding against accidents caused by closing doors.

Built with microwave activation technology, the CNB-530 detects motion and triggers the door to open, allowing for smooth and efficient entry. The integrated infrared safety sensors detect the presence of people or objects, preventing potential accidents such as pinch injuries. With adjustable sensitivity and detection range, this sensor is highly adaptable, ensuring it meets the specific requirements of different door installations.

Advantage & Value

Company -- Canbo-Sensor

With over 20 years of experience in the industry, we are a trade and manufacturing integrated company, specializing in the research, development, production, and sales of automatic doors, access control systems, and related components. Our extensive experience allows us to design and produce high-quality sensors and access control products that ensure both reliability and safety. We focus on innovation, customer satisfaction, and offering products that meet the highest standards of quality, durability, and performance.

Product -- Microwave Motion & Infrared Anti-pinch Door Sensor

Dual Functionality:

Combines microwave motion detection for door activation and infrared safety sensing to prevent accidents, offering complete door safety and efficiency.
Adjustable Sensitivity & Range:

Allows easy adjustments to the sensor's microwave detection range and infrared safety zone, providing flexible solutions for different installations.
Energy Efficient & Durable:

Designed for longevity, the CNB-530 operates efficiently with low power consumption and is built to withstand demanding conditions.
Quick Installation & Self-Learning Function:

The sensor is equipped with an auto self-learning feature for background calibration, simplifying installation and ensuring optimal performance.

Technical Parameters

Product	Microwave Motion Infrared Safety Sensor
Power Input	AC/DC 12~30V(±10%)
Cable Length	2.5m
Max Installation Height	3000mm(max)
Static Current	53mA(DC 12V power)
Action Current	73mA(DC 12V power)
Dimension	117(L)×50(W)×34(H)mm
Cover	Optical surface PMMA, Shell ABS

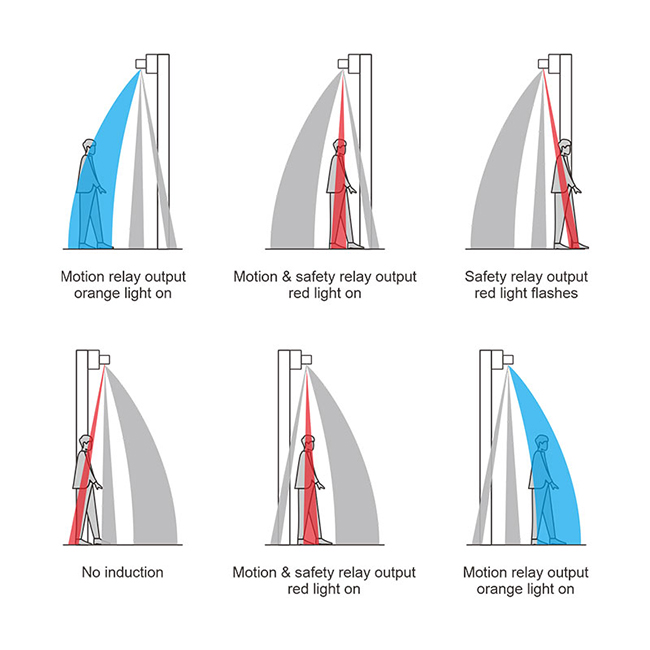

LED indicator	Power on: green LED flashes, Standby mode: green LED on; 1st Row Infrared Action: red LED flashes, 2st Row Infrared Action: red LED on; Microwave motion Action: orange LED on.

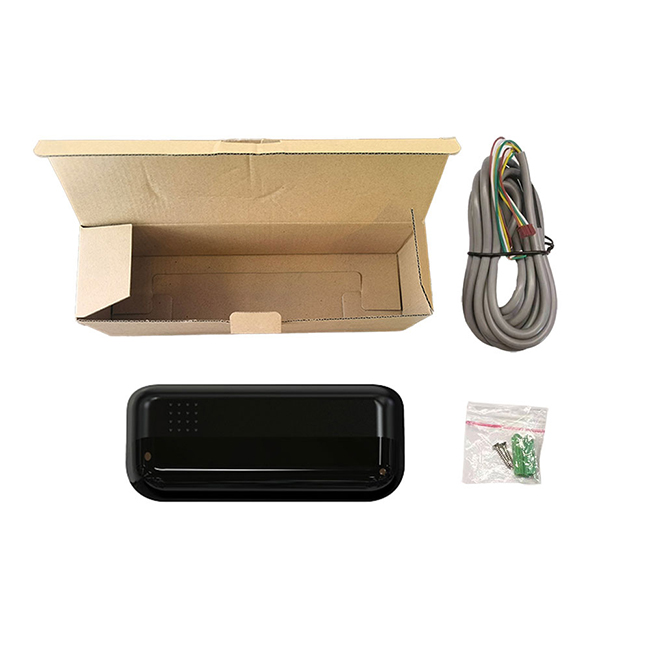

Packing List	Sensorx1, 2.5 meters 6-pin linex1, Screws bagx1, Operating instructionsx1
Infrared safety
Ray Type	Infrared 940nm
Quantity Of Ray	2 way, 8 transmission, 32 light spot
Detection Range	1800(W), 300-800mm(D) adjustable
Microwave Activation
Technology	24.125GHz Microwave processor
Detection Mode	Motion
Output time	2 secs

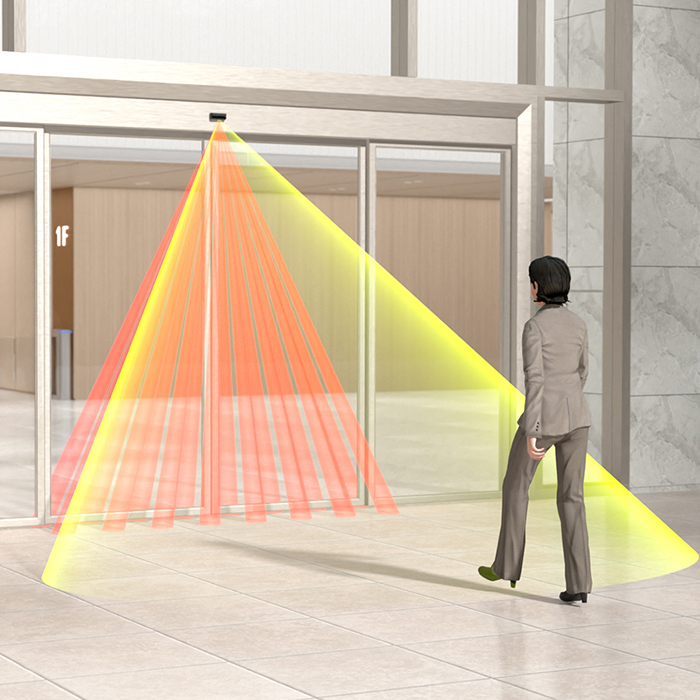

530_dual sensor (7)

Application Scenarios

Automatic Doors in Hospitals & Clinics:

Ensures hands-free operation and safety for patients and healthcare workers, reducing the risk of injury.

Shopping Malls & Retail Stores:

Enhances customer experience by providing smooth, efficient door access without physical contact.

Offices & Commercial Buildings:

Increases security and convenience, allowing employees and visitors to access the premises with ease.

Industrial & High-Traffic Areas:

Provides safe, durable, and reliable door operation in environments where frequent use and safety are paramount.
