Product Description

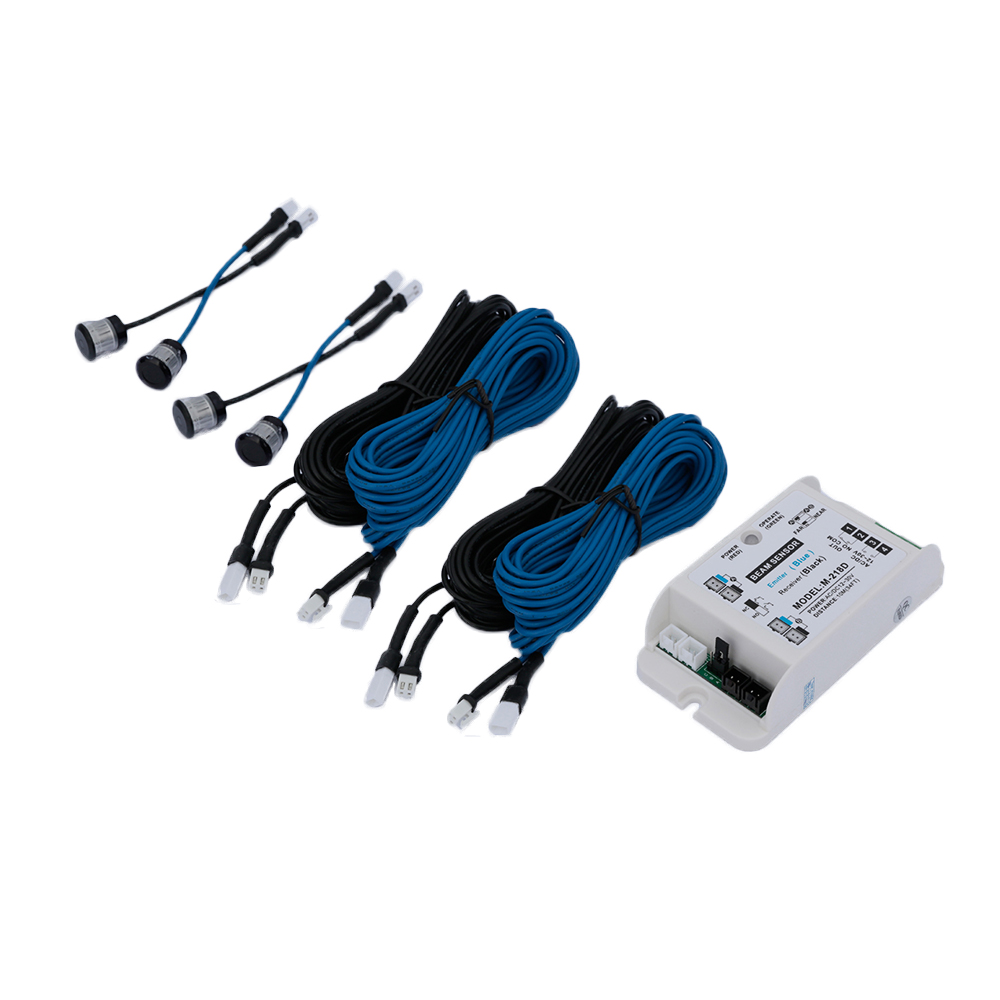

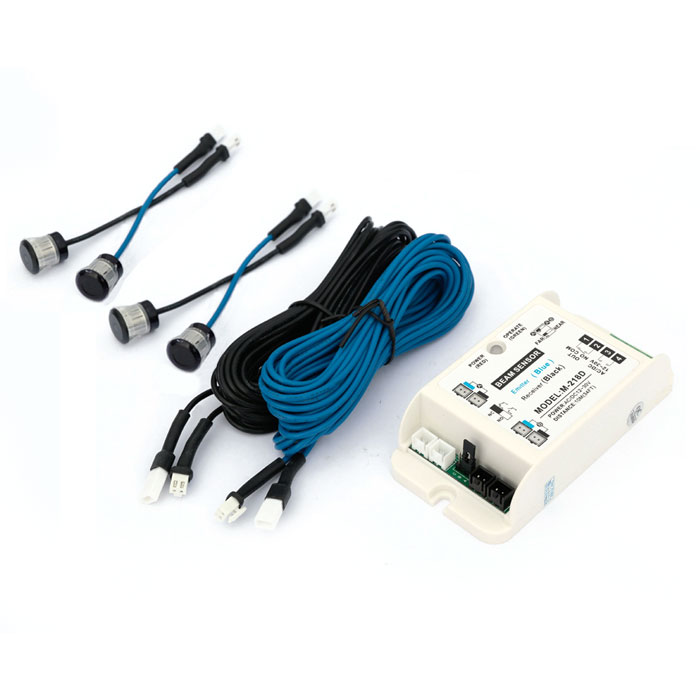

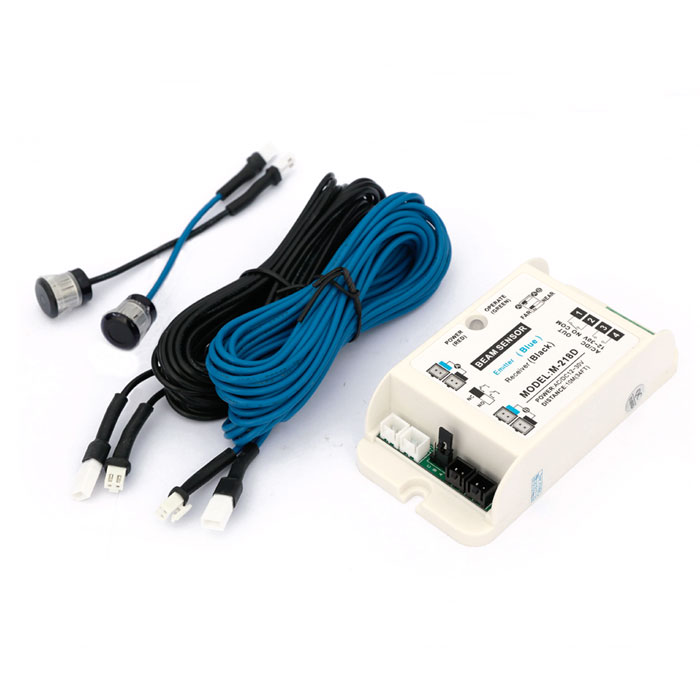

Automatic Door Photoelectric Beam Safety Sensor uses an invisible infrared light beam between an emitter and receiver to detect obstructions, preventing accidents by stopping or reversing the door's motion if the beam is broken, ensuring safety for people and pets with reliable, weather-resistant, non-contact detection for swing gates, sliding doors, and garage doors. It supports both single beam and double beam options.

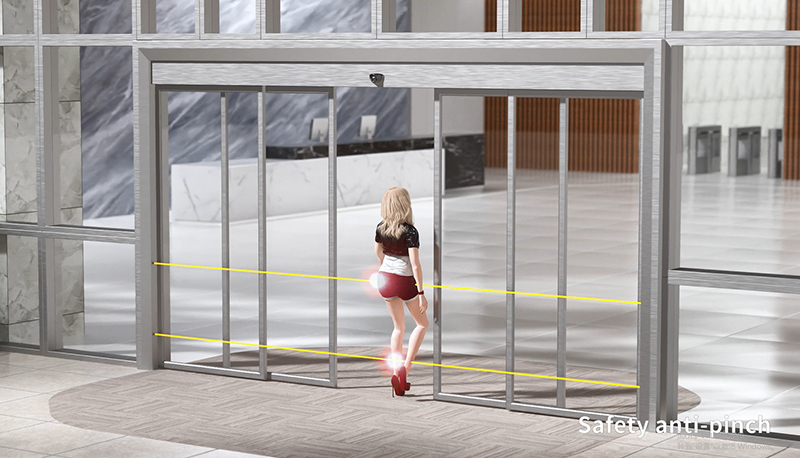

How it Works

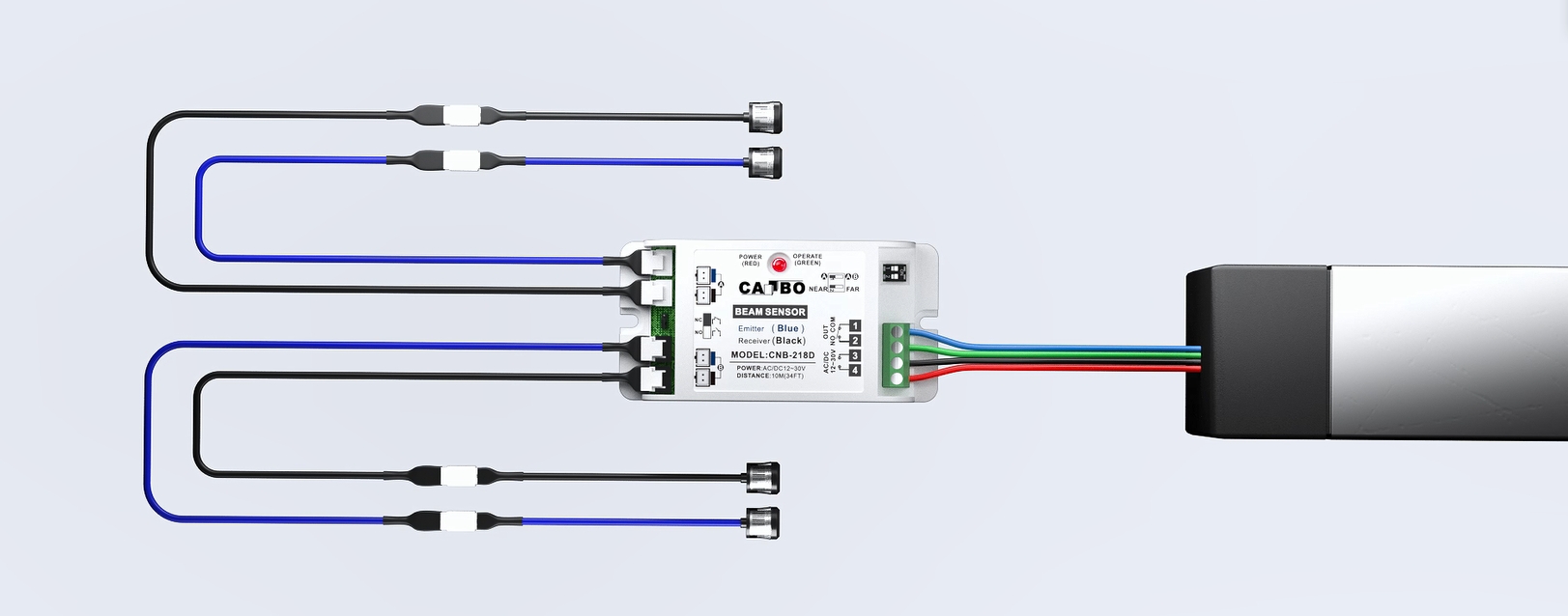

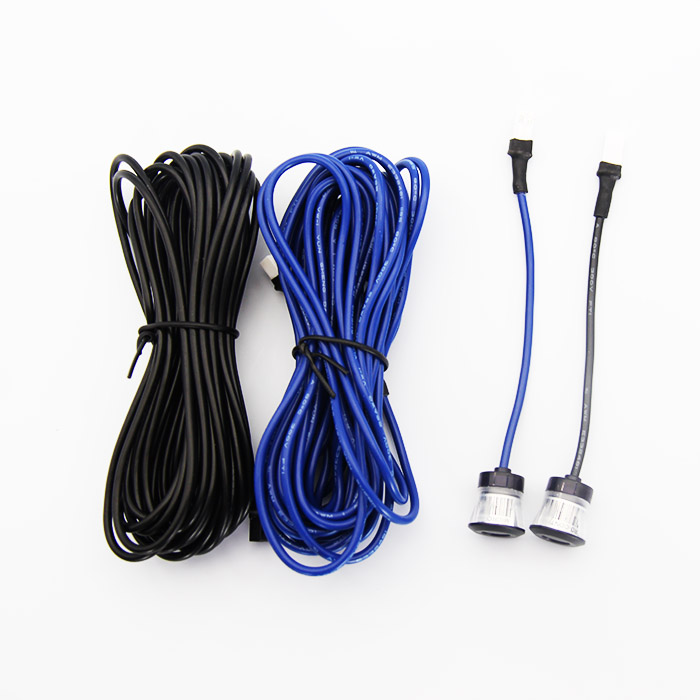

Emitter & Receiver: One unit sends an infrared beam, while the other receives it; they must be aligned.

Obstruction Detection: When an object (person, pet, vehicle) passes through the beam, the connection is interrupted.

System Response: The control board receives the signal and instantly tells the door to stop closing or reverse to prevent impact.

Key Features

Enhanced Safety: Protects against pinching and collisions, especially for children and pets.

High Accuracy: Uses precise infrared technology for fast, reliable detection.

Various Applications: Works with most automatic gate, garage, and sliding door openers.

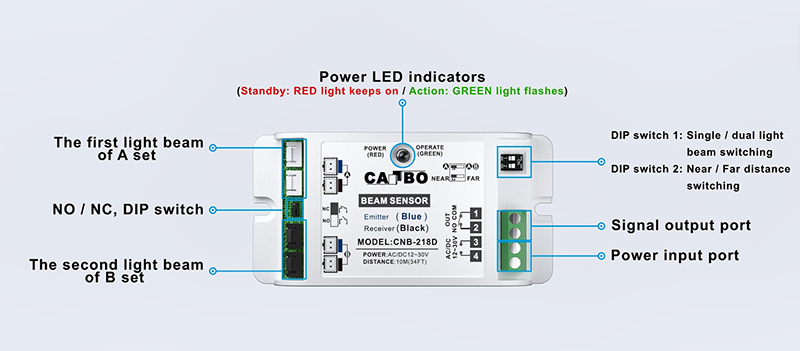

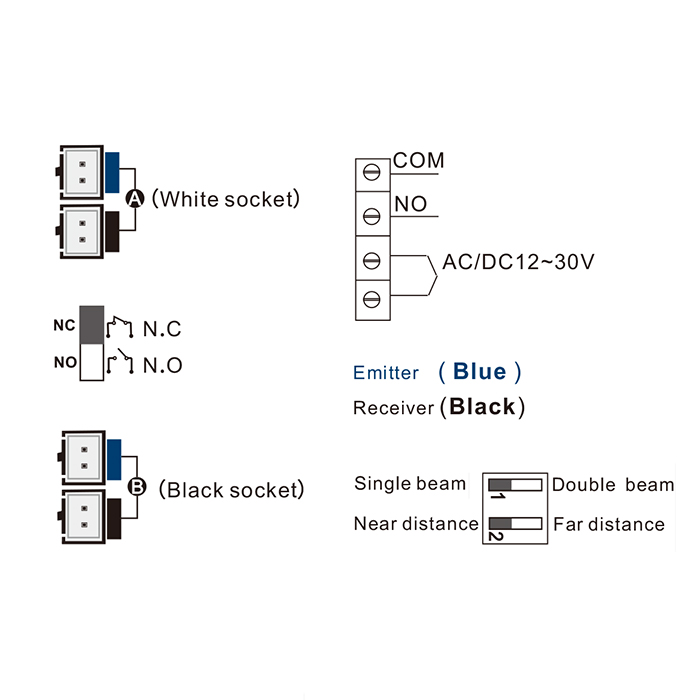

Versatile Compatibility: Compatible safety inputs with NO/NC dry contact.

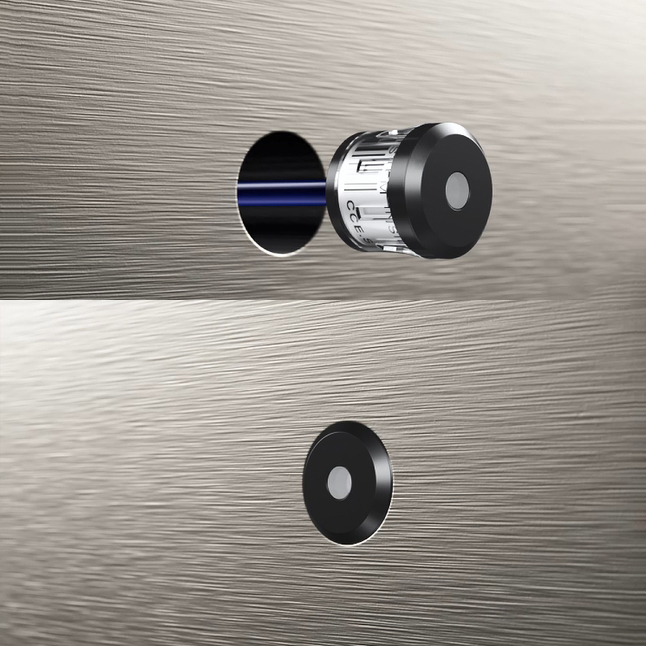

Installation Method: Easy to install, it can be exposed or recessed mounted on the door frame, about 30~90cm above the gound.

Company Advantage

With over 20 years of experience, we are a leading manufacturer specializing in automatic door control and access control systems. Our company is committed to providing high stability, high reliability, and cost-effective security solutions. We are proud to offer CE-certified products, ensuring that our solutions meet the highest international standards. Our expert team delivers excellent customer service, providing 12-month warranties, technical support, and spare parts to our global clientele. From Europe and the United States to Asia, we have built a reputation for offering advanced, innovative solutions for security and automation.

FAQ

Q: Can this be used with other brands door opener?

A: Yes, our sensors are generally compatible with various brands of door operators. You can also tell us the brand and model of your door operator, and we will confirm whether it is compatible.

Q: MOQ for custom function or Logo?

We generally keep our regular and best-selling products in stock. We support trial orders, but for orders with special requirements such as functional customization or logo printing, there will be a MOQ of 100-500 units, depending on the specific requirements.  Please contact us to let us know your requirements, and we will evaluate them and provide you with a specific solution.

Q: Is the beam sensor usable in garage door?

A: Yes, it suitable for sliding door, garage door for security functions.
