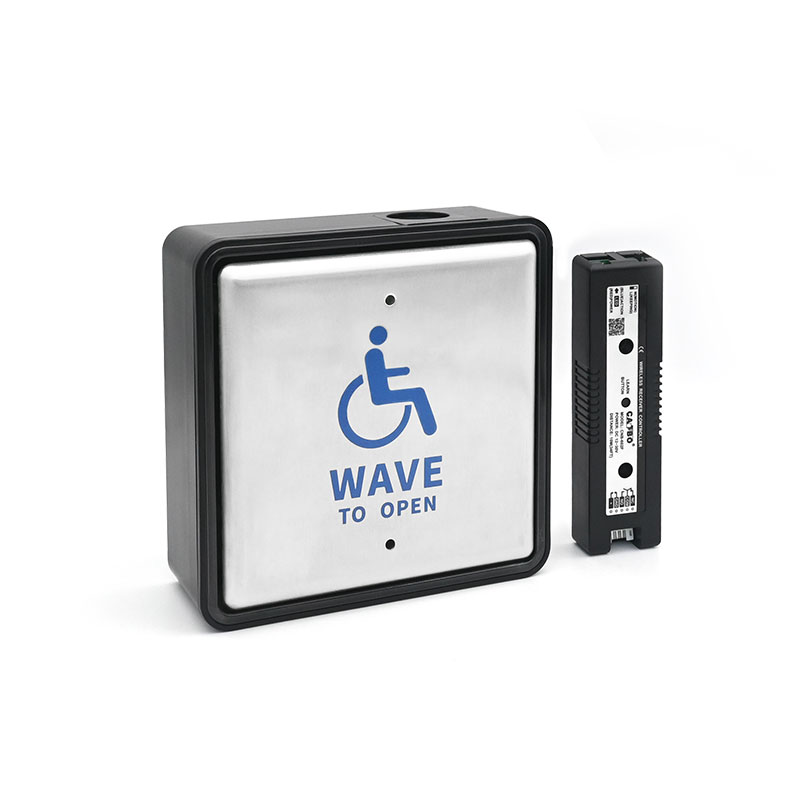

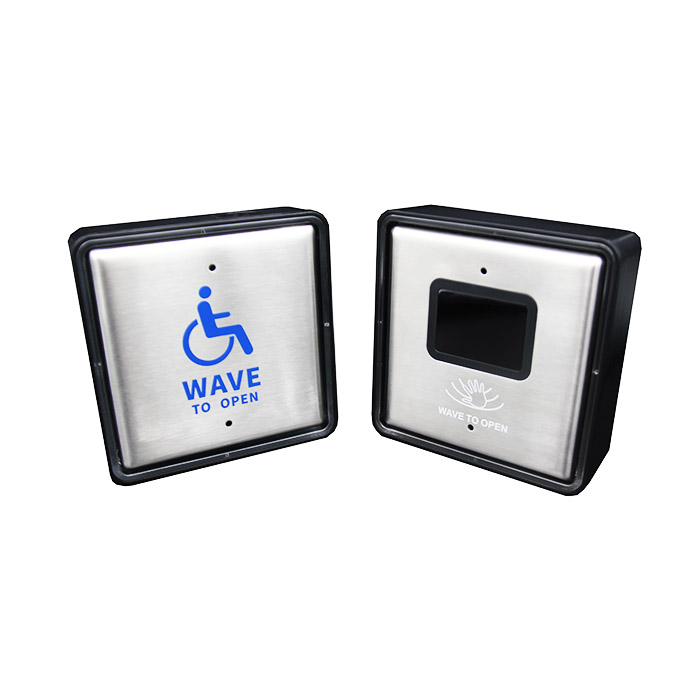

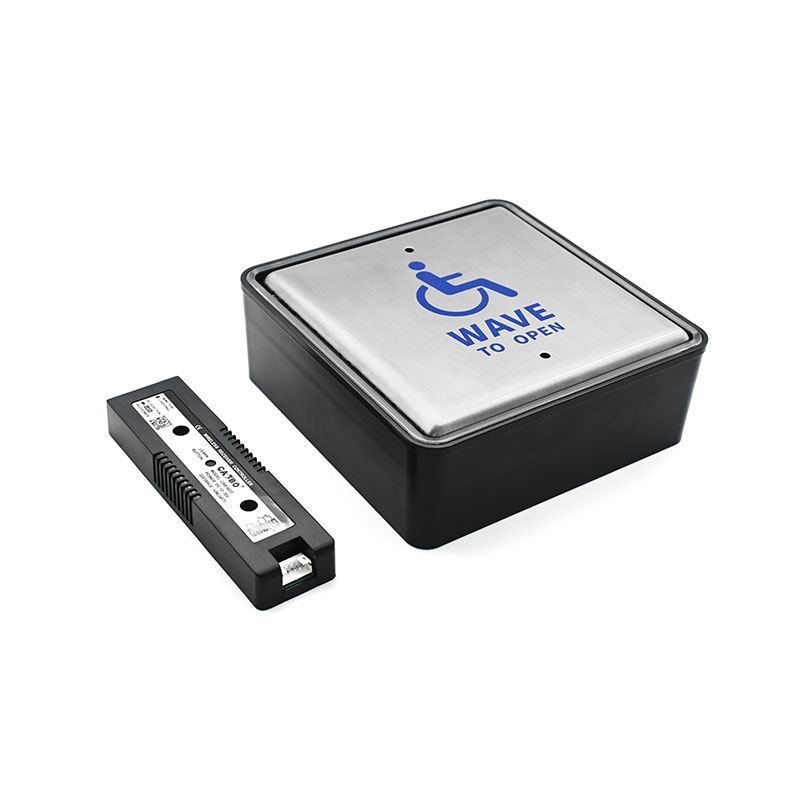

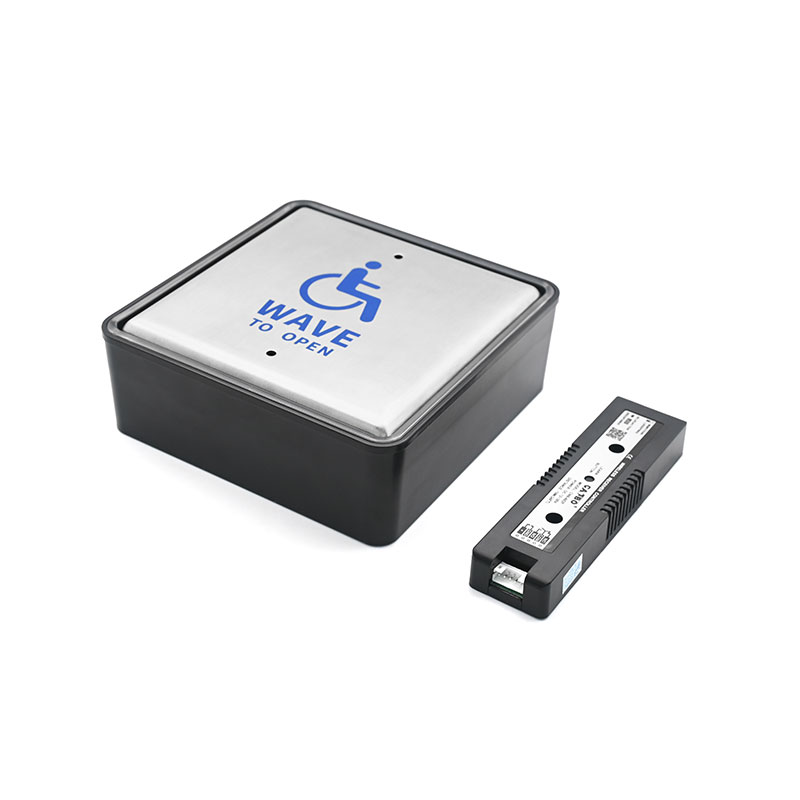

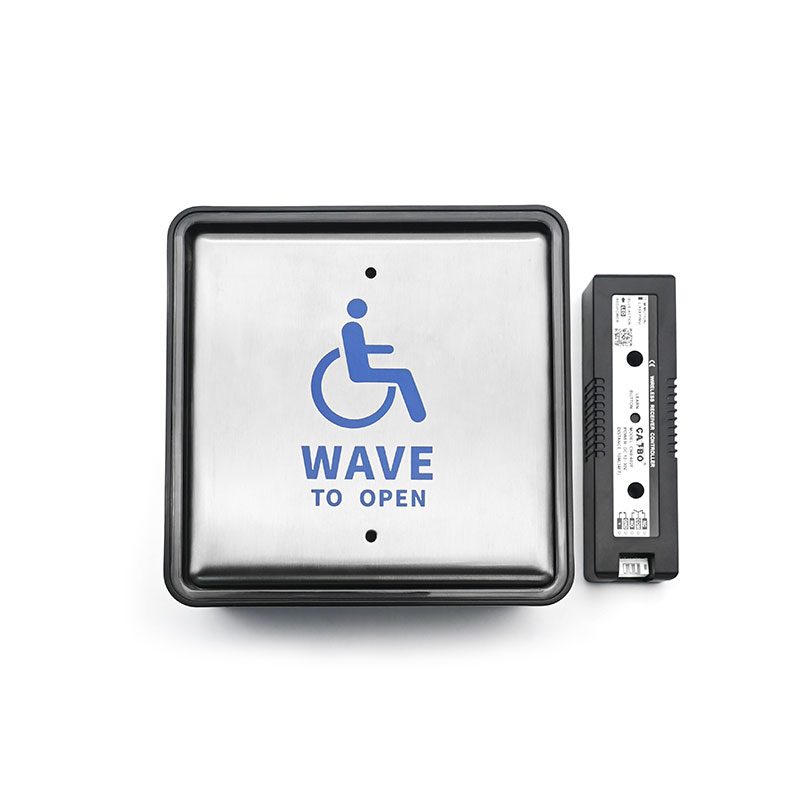

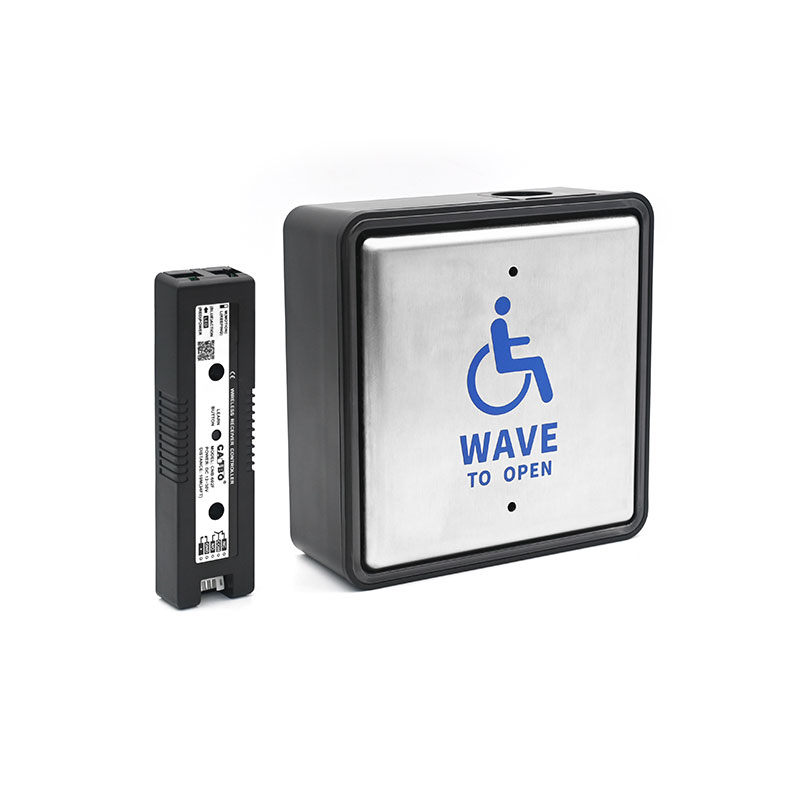

CANBO M-512 series hand sensor touchless switch is an advanced non-contact automatic door activation system engineered for commercial enhanced accessibility, hygiene, and convenience. It features two technology variants: an infrared model that activates the automatic door by sensing hand movement that interrupts an infrared light beam, and a capacitive model that detects changes in electric charge from a nearby hand to trigger door opening.
Ideal for commercial entrances, public facilities, and healthcare environments, this hands-free wave switch allows users to open doors effortlessly by simply passing a hand in front of its sensor. Built with reliability and ease of use in mind, it provides a seamless and sanitary entry solution, promoting safer and more accessible spaces for all individuals, including those with disabilities.
Dual Operation Modes offering flexible integration with existing door systems through both wired (AC/DC 12-30V) and wireless (battery-powered) setups.
Adjustable Sensing Distance is 0-8cm via a simple knob.
Intelligent Self-Learning Code Technology enables the wireless receiver to pair with up to 20 different transmitter units, ensuring easy setup and management.
Selectable Output States provide compatibility with various door operators, including momentary (1.5-second pulse) and maintained (latching/reversing) signal outputs.
LED Indicators display power, standby, learning, and activation statuses for straightforward operation and diagnostics.
| Transmitter Dimensions: 129 (L) x 129 (W) x 46mm (H) | Receiver Dimensions: 110 (L) x 30 (W) x 15 (H) |
| Transmitter Power Supply: 6V DC (4x1.5V AA Batteries) | Receiver Power Supply: AC/DC 12-30V |
| Transmitter Standby Current: 50μA | Transmitter Action Current: 11mA |
| Receiver Standby Current: 4mA (at DC 12V) | Receiver Action Current: 36mA (at DC 12V) |
| Main Contact Capacity: 1A at DC 24V | Maximum Wireless Transmission Distance: ~30 meters |
| Wired Sensing Range: Adjustable, 0 to 15 cm | Wireless Sensing Range: Adjustable, 0 to 8 cm |
| Operating Environment: Temperature -42°C to 45°C | Relative Humidity 10% to 90% RH. |
Q: Are you a manufacturer?
A: Yes, we are a Chinese manufacturer with nearly 20 years of experience specializing in automatic door accessories and access control components. As an authorized partner of several international automatic door brands. We support customized solutions, OEM/ODM services. There are diverse product portfolio of nearly 300 items, and cover all aspects of safe and smooth automatic door operation, primarily serving commercial and industrial applications, including sliding doors, swing doors, and high-speed doors. We also provide solutions for residential automatic gates and garage doors, ensuring reliability and performance across various environments.
With a strong focus on quality and innovation, we deliver durable, precision-engineered components that meet global standards. Our expertise spans sensors, safety devices, switch, control systems, and other critical accessories, making us a trusted partner for automatic door solutions worldwide.
Q: What products does your company mainly produce?
A: We are a manufacturer, engaged in automatic door access control accessories in China, with about 20 years experience. Our main product lines as below:
1-Auto door motion sensors, presence sensors, safety sensor; light curtain sensor
2-Touchless switches/push plate switches/push pad switches/key switches with voice and light;
3-Special designed solution for disabled/baby caring auto door system
4-Remote access control(temperature and face recognition);
5-Camera sensor with human figure/ face recognition
6-Vehicle, robot use electric tags for automatic door remote control
7-Fingerprint smart lock for auto glass door solution
