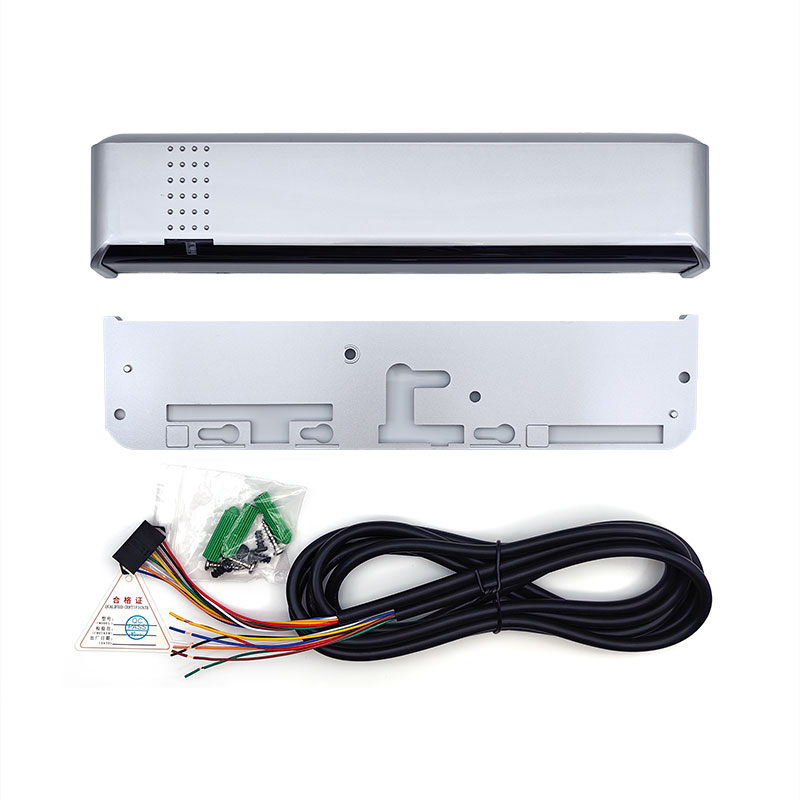

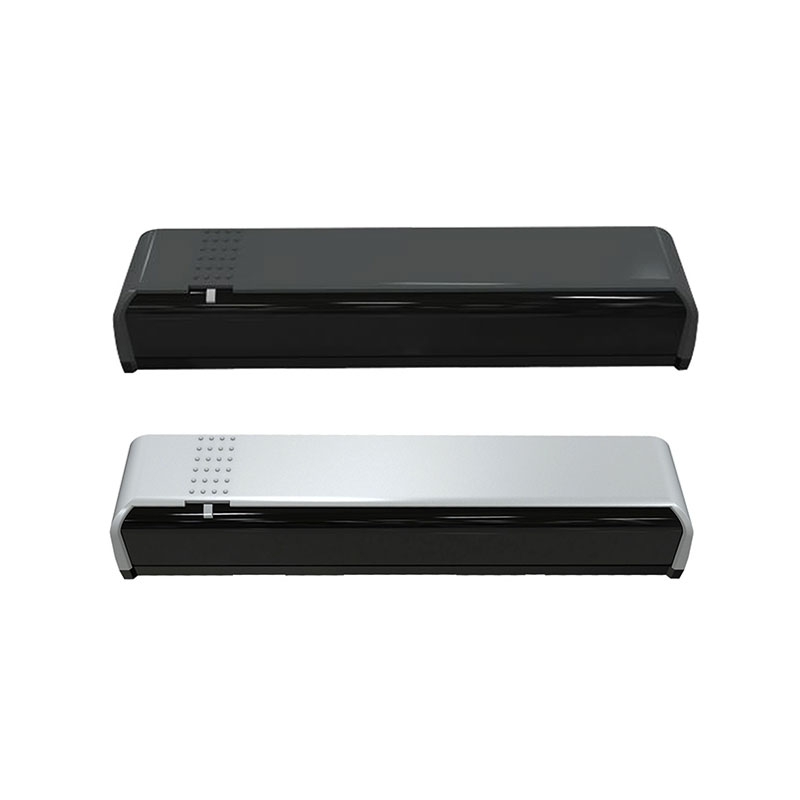

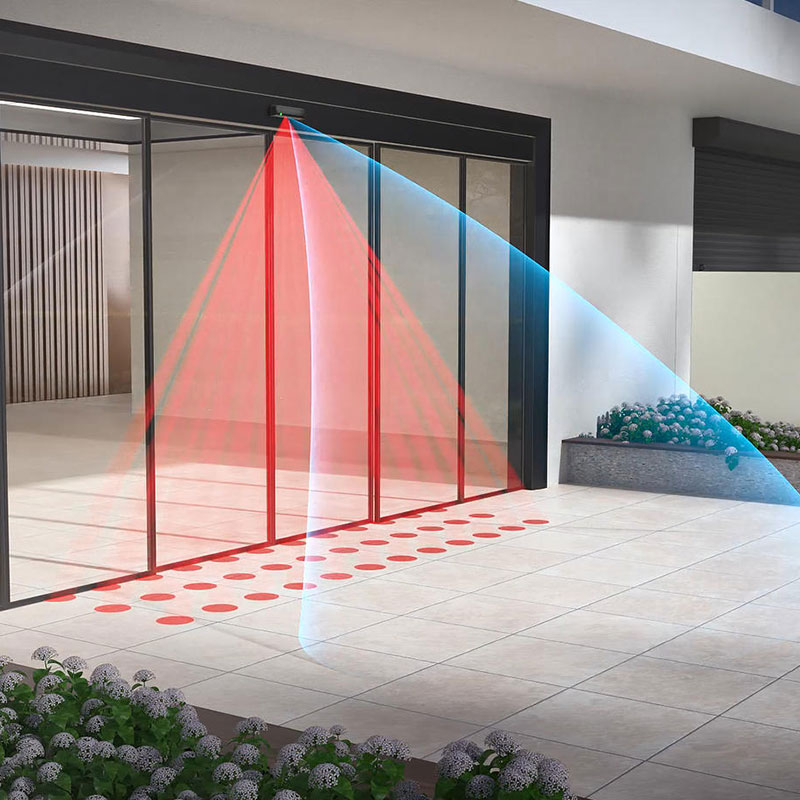

The CANBO M-506 is a high-performance motion detector sensor specifically developed for automatic door applications that demand precise detection control and flexible configuration. It integrates microwave motion detection for door activation with infrared safety sensing to protect pedestrians in the door area.

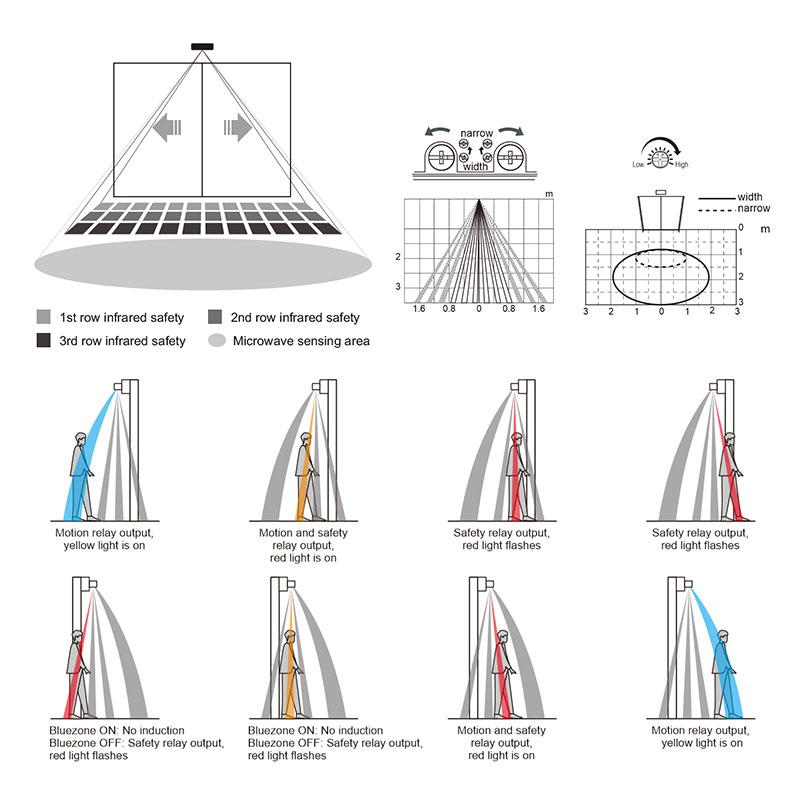

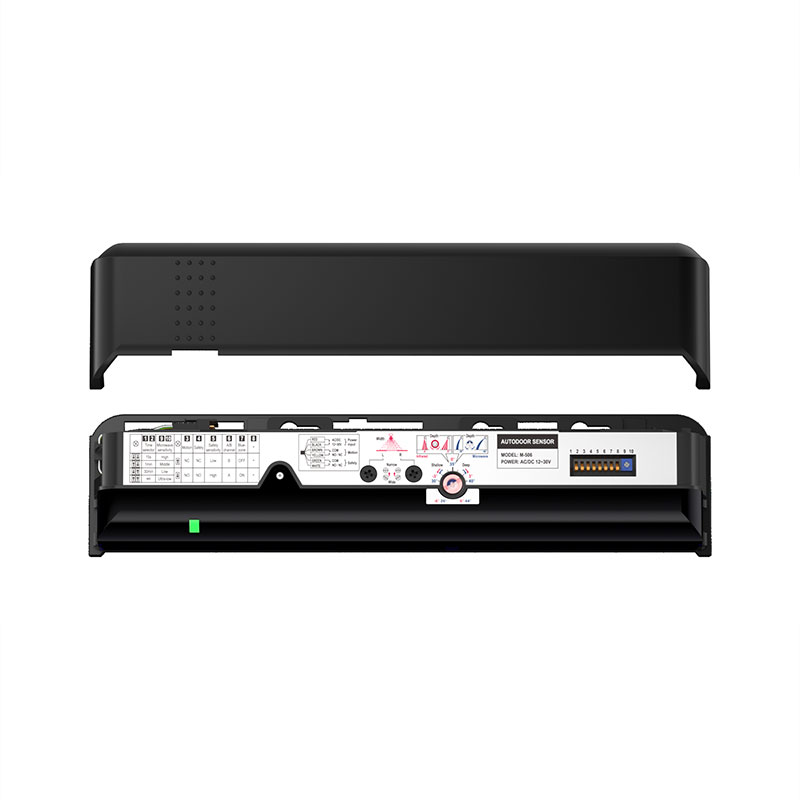

Designed with multiple adjustment options, the M-506 allows installers to fine-tune detection width, depth, sensitivity, output logic, and background learning time via DIP switches and adjustment screws. Dual-channel selection (A/B) helps avoid interference when multiple sensors are installed nearby, making it ideal for large projects and complex entrances.
With separate relay outputs for motion and safety signals, the M-506 can be easily connected to automatic door controllers, alarm systems, and integrated home or commercial security systems. Its strong adaptability and stable detection performance make it a preferred choice for airports, shopping malls, hospitals, and high-traffic automatic door installations.
Motion and safety function in one sensor
Adjustable sensing distance independently
Background learning time setting
NO, NC, COM output signal
3.5 meters installation height
Suitable for automatic sliding door of different occasions
A/B channel anti-inference function
M-235 | M-254 | M-530 | M-532 | M-506 | M-507 | M-507X | |
Installation | 2.8m | 2.8m | 3m | 3m | 3.5m | 3.5m | 3m |
Motion | Microwave | Infrared | Microwave | Infrared | Microwave | Infrared | Infrared |
Safety | Infrared | Infrared | Infrared | Infrared | Infrared | Infrared | Infrared |

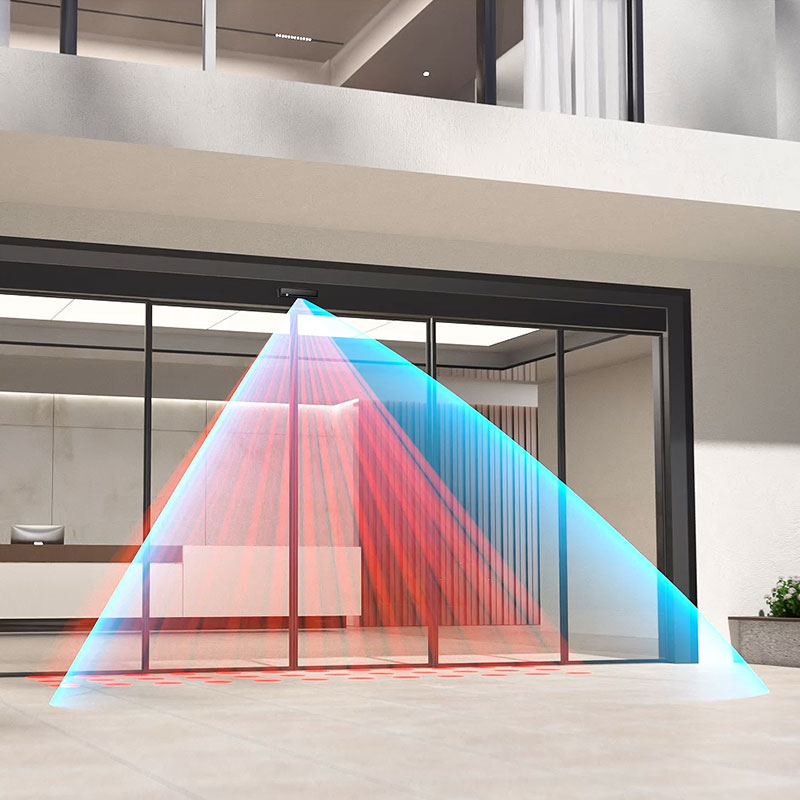

Detection range | 4*2M(motion) 1.6*0.8M (safety)(2.5H) | 1.6*1.4M (2.5H) | 1.8M(W), 0.3-0.8M(D) (safety) | 1.8M(W), 1-1.5M(D) (safety) | 4*2M(motion) 2.5*0.6M(safety) (2.5H) | 2.5*1.4M (2.5H) | Max.W 2.5M, 80~170mm hand sensing(2.5H) |
Background update time | 15s,30m | 15s,1m,30m,no update | 15s | ||||
Motion signal NO/NC | √ | √ | √ | √ | √ | ||
Safety signal NO/NC | √ | √ | √ | √ | √ | √ | √ |
Sensitivity adjustable | √ | √ | √ | √ | √ | √ | √ |
A/B channel | √ | √ | √ | √ | √ | √ | |
Bluezone | √ | √ | √ | √ | |||
Street mode | √ | ||||||
4/5 row light beam | √ | √ | |||||
Power input | AC/DC 12-30V | AC/DC 12-24V | AC/DC 12-30V | ||||
Signal output | Relay, 1 motion, 1 safety | ||||||
Other | With EN16005 standard, M-531D Unidirectional sensor | ||||||
