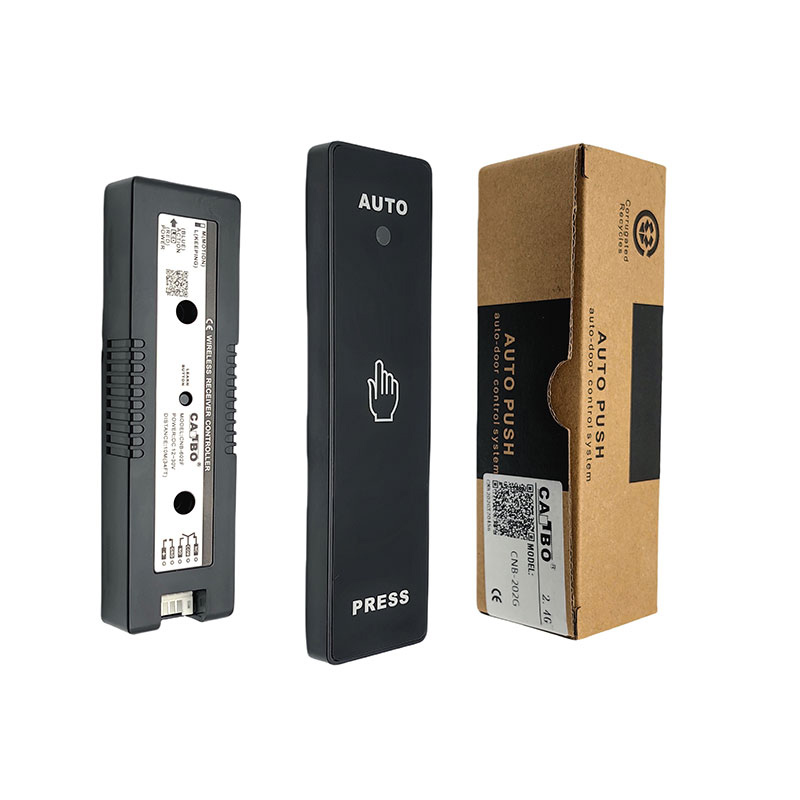

CANBO 202G Wireless Push Button Automatic Door Opener

TYPE: Wireless type

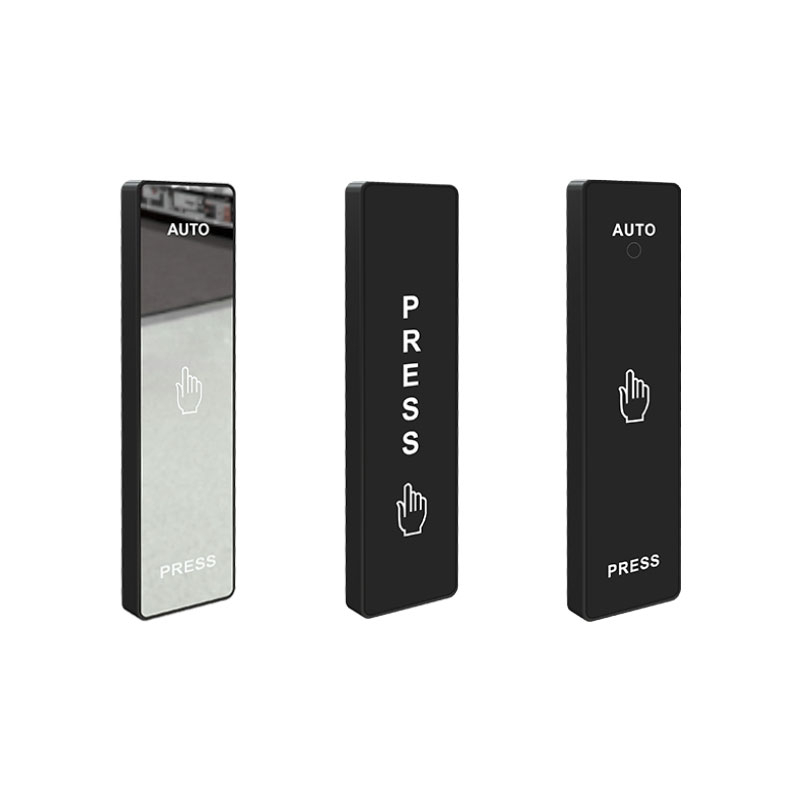

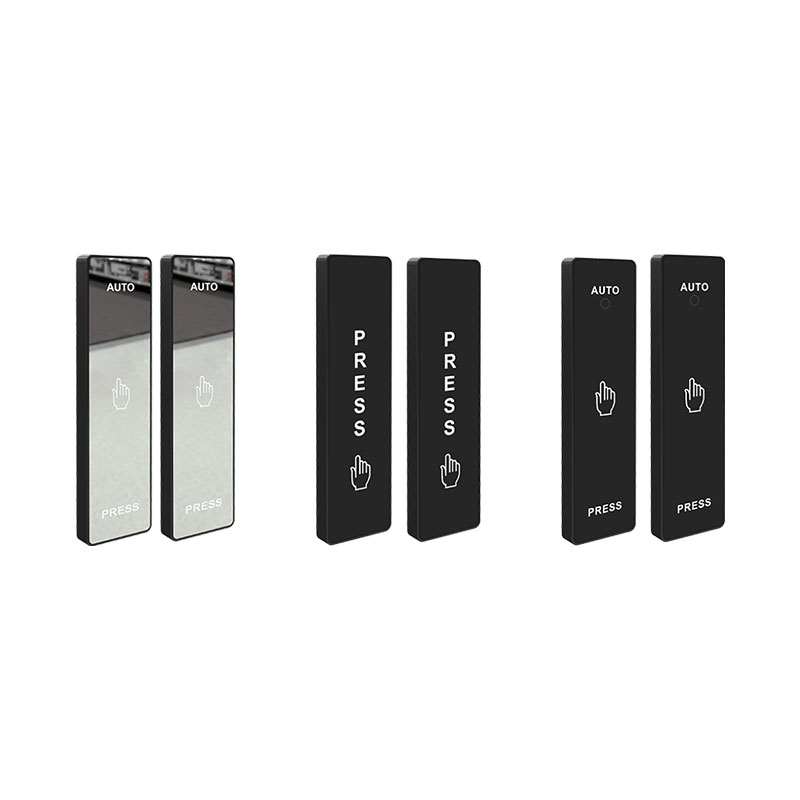

Color: silver, black

Model:
M-202G
Brand:
CANBO

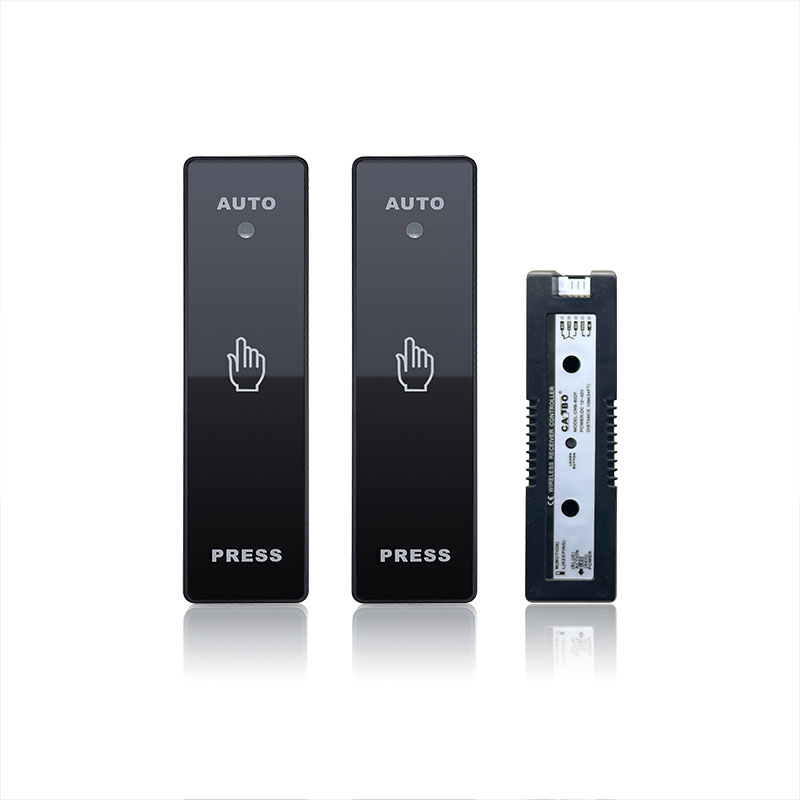

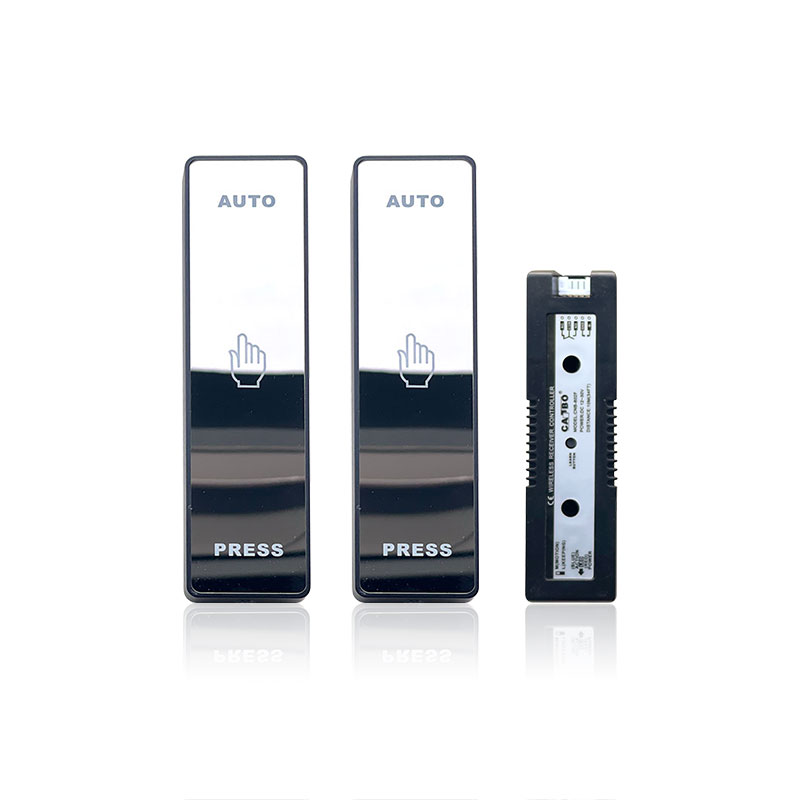

Type:	1 Switch + 1 Receiver / set 2 Switch + 1 Receiver / set
Availability:

Quantity:



Inquire Add to Basket

Push button Button Switch Wireless Push Button Automatic Door Opener Automatic door Access Exit Button

CANBO 202G Wireless Push Button Automatic Door Opener

Product Description

M-202G Wireless Door Opener Switch: Effortless Access with Advanced Control

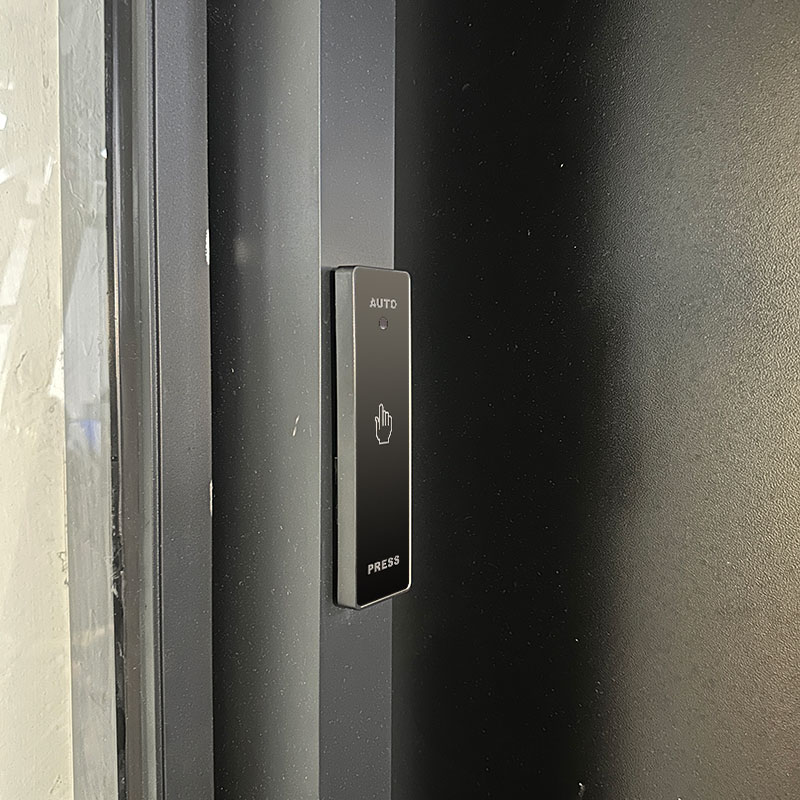

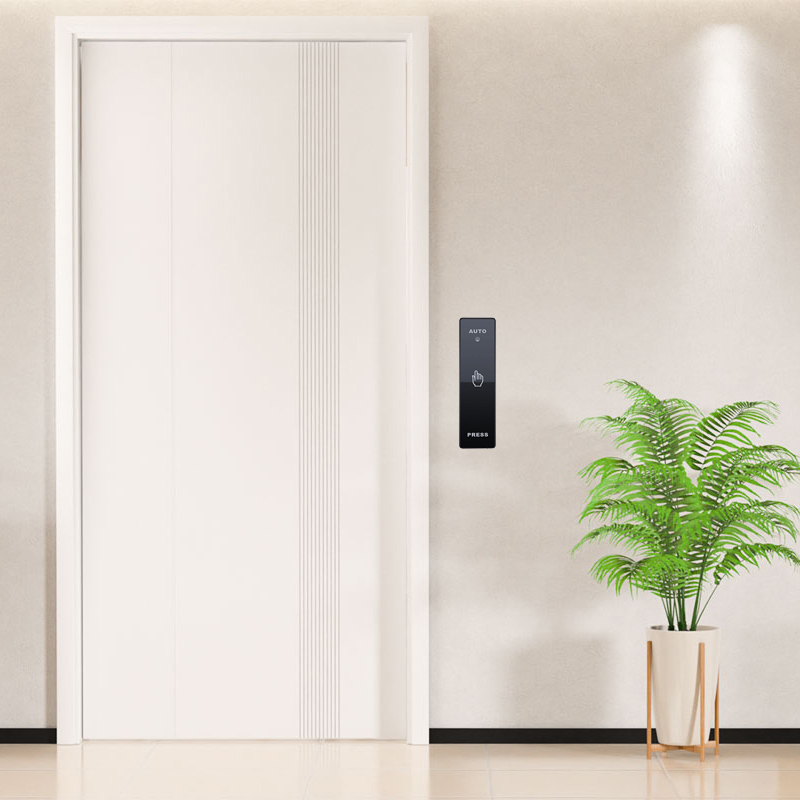

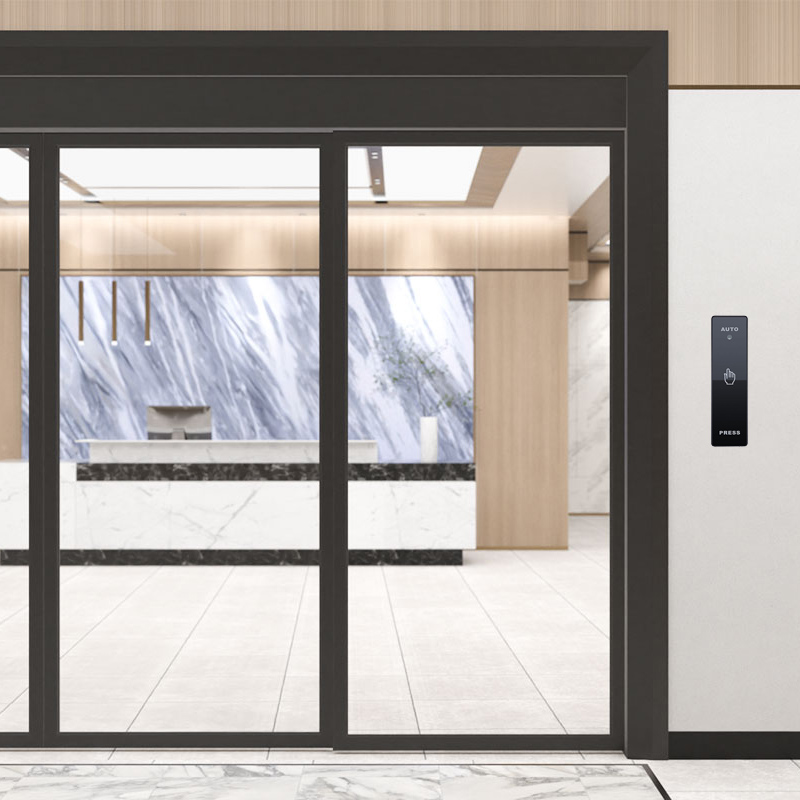

It designed for seamless automatic door operation. It provides a reliable wireless link between a push-button transmitter and your door opener motor, offering both convenience and enhanced accessibility without the complexity of hardwiring. This system is ideal for upgrading standard swing or sliding doors in homes, offices, retail spaces, and healthcare facilities to provide touch-free or push-button entry solutions.

Product Features

Wireless & Easy Installation: The battery-powered transmitter communicates via radio frequency (RF) with the receiver, eliminating the need to run control wires through walls or door frames, significantly simplifying setup.

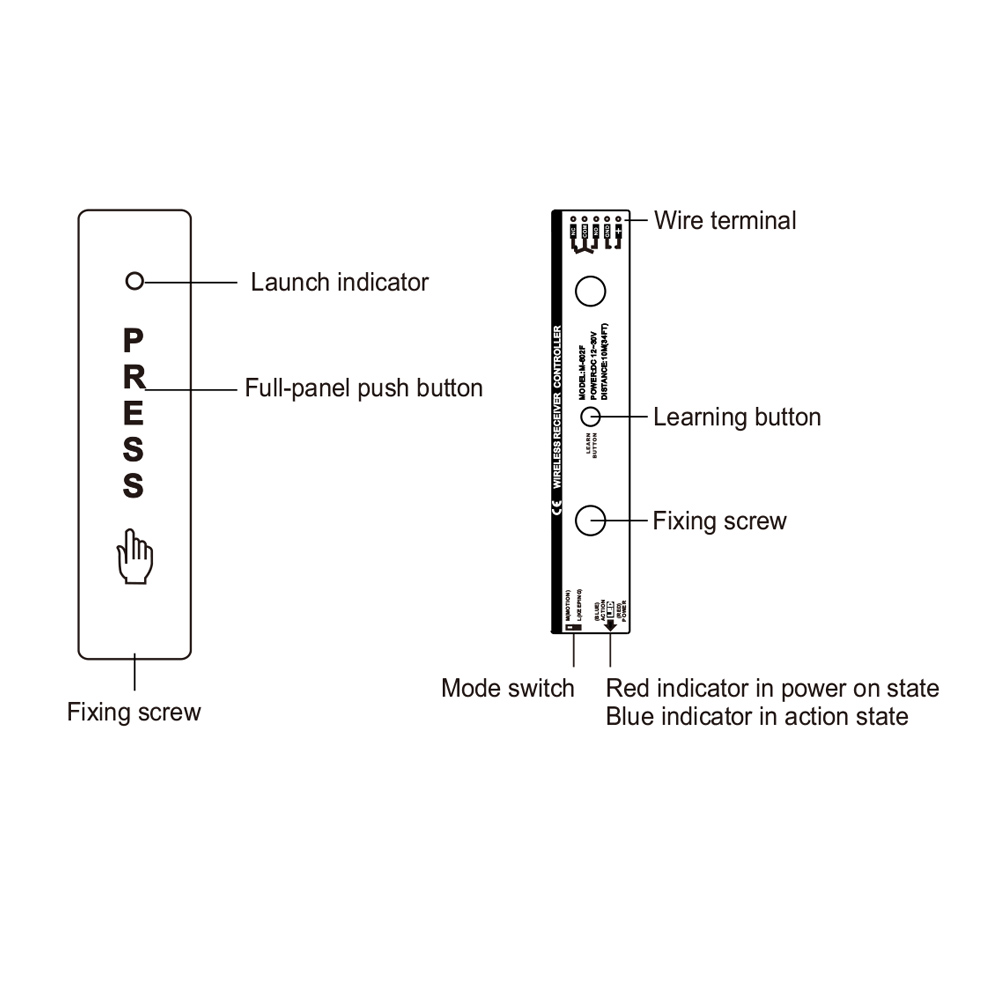

Flexible Output Modes: Features a selectable output switch for versatile control:

Momentary (M) Mode: Provides a standard 1.5-second pulse signal for a brief door opening action with each press. This is the most common setting for automatic doors.

Latched (L) Mode: Offers a maintained (toggle) output, changing state with each press to hold the door open or closed as needed.

Normally Open Function in M Mode: Allows temporary activation of a continuous open signal, useful for extended entry periods.

Strong Signal & Long Range: Achieves a reliable control distance of over 30 meters in open areas, ensuring consistent performance.

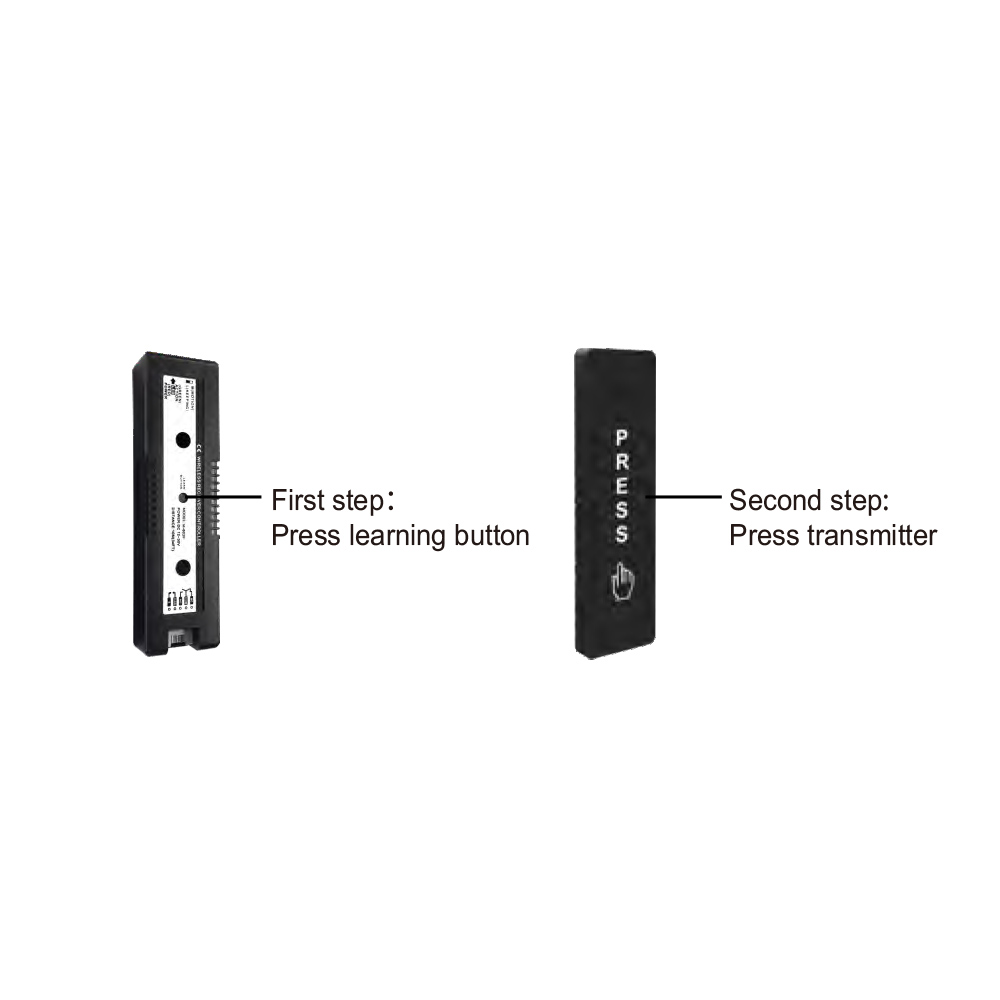

Multi-Device Pairing: The self-learning receiver can store codes for up to 20 different transmitters, allowing control from multiple buttons or locations.

Compact & Low Power: The receiver operates on a wide DC 12-30V power supply with minimal standby current (≤10μA). The compact transmitter is powered by two AAA batteries, offering a long service life.

Product Specifications

Receiver Power Supply:	DC 12-30V
Receiver Standby Current:	≤10μA
Output Contact Rating:	1A 24VDC
Transmitter Power:	3V (2x AAA Batteries)
Typical Battery Life:	Approx. 15 months (based on 200 activations/day)
Wireless Range:	>30 meters (open area)
Receiver Dimensions:	110(L) x 30(W) x 15(H) mm
Transmitter Dimensions:	150(L) x 40(W) x 12.5(H) mm
