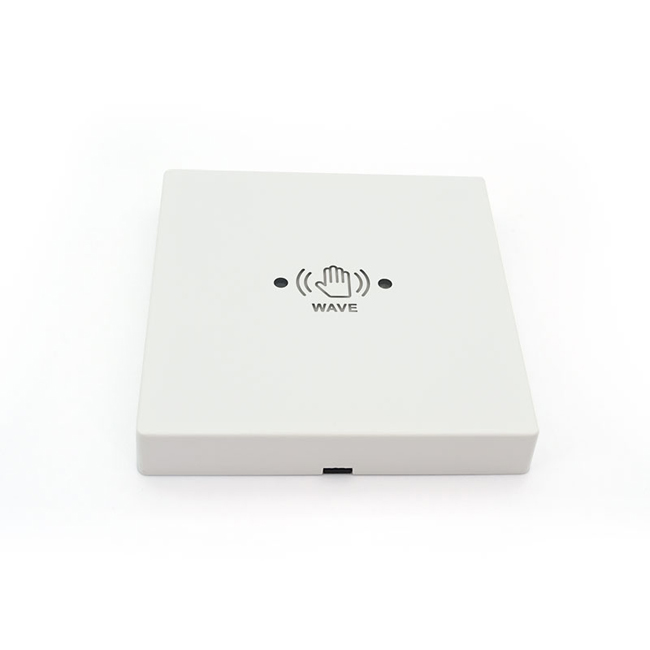

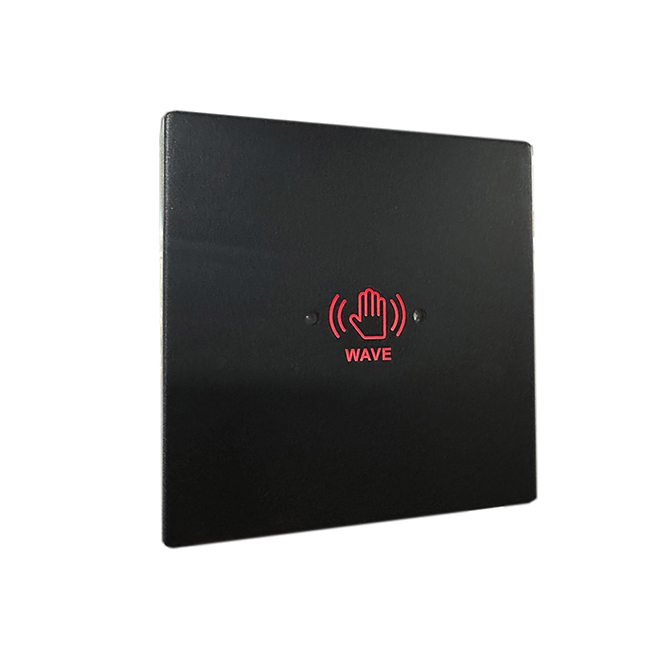

605MHW Hand Wave Sensor No Touch Switch

Product: Wireless Infrared Touchless Switch

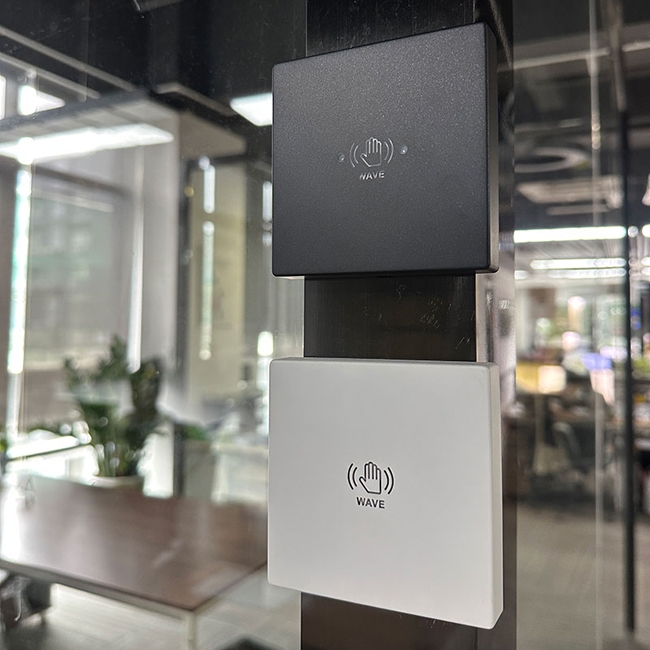

Color: Matt Black, Matt White

Material: ABS

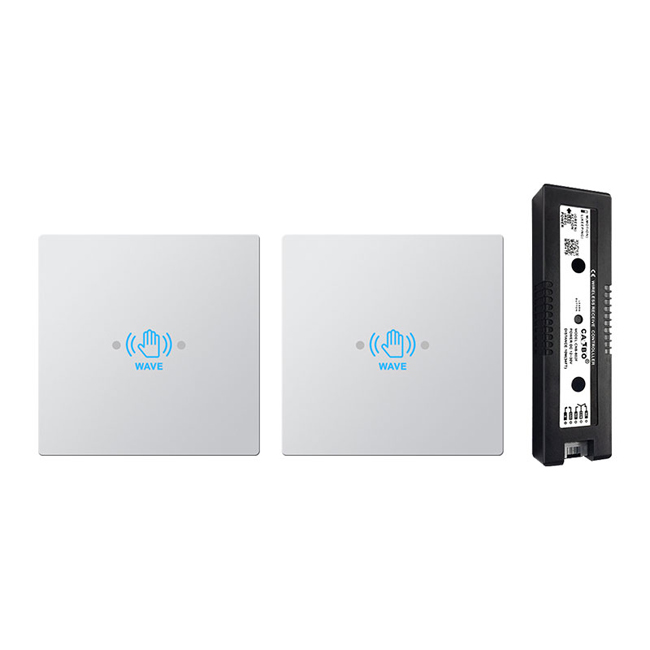

Sets: 1 switch + 1 receiver for each set; 2 switch + 1 receiver for each set.

Used for automatic door for opening and closing.

Model:
M-605MHW
Brand:
CANBO

Type:	1 switch + 1 receiver for each set 2 switch + 1 receiver for each set
Color:	Matt black Matt white
Installation:	Surface mount Concealed mount
Tech:	Infrared sensing(0-30cm) Capacitive sensing(0-6cm)
Availability:

Quantity:



Inquire Add to Basket

No Touch Switch Sensor Switch Hand Wave Switch Wave No Touch Switch Door Sensor Switch Wave Switch Sensor

Product Description

605MHW Hand Wave Sensor No Touch Switch

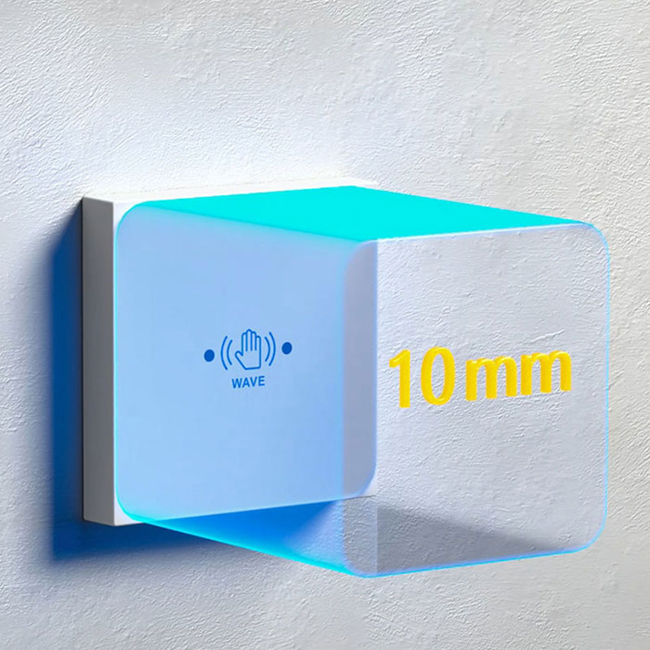

605H_605MH_05

Product Description

The M-605MHW Wireless Infrared Touchless Switch is an advanced, hygienic access solution designed for modern automatic door systems. Its core innovation lies in touchless infrared activation, allowing for seamless, sanitary operation with an adjustable range of up to 30cm. The system features a self-learning wireless receiver that can pair with up to 20 transmitters, ensuring flexible and scalable installation. Easy to install and suit various door control needs.

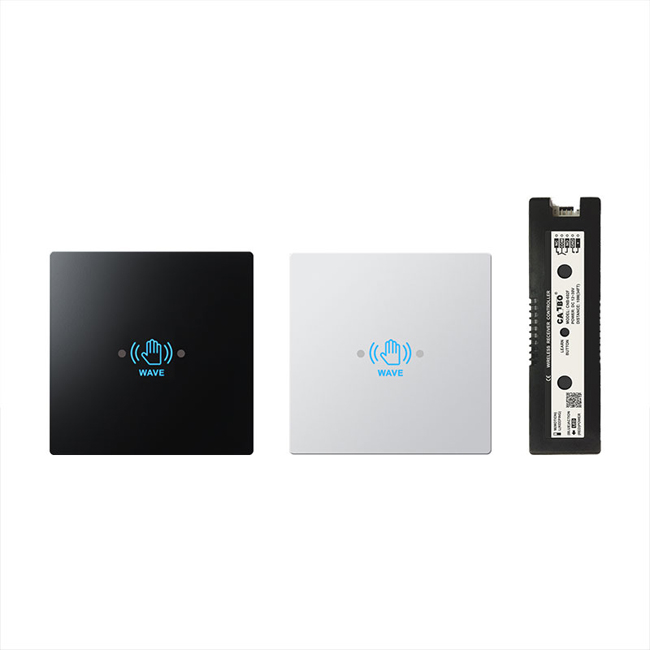

605MHW_06

Material & Surface Finish

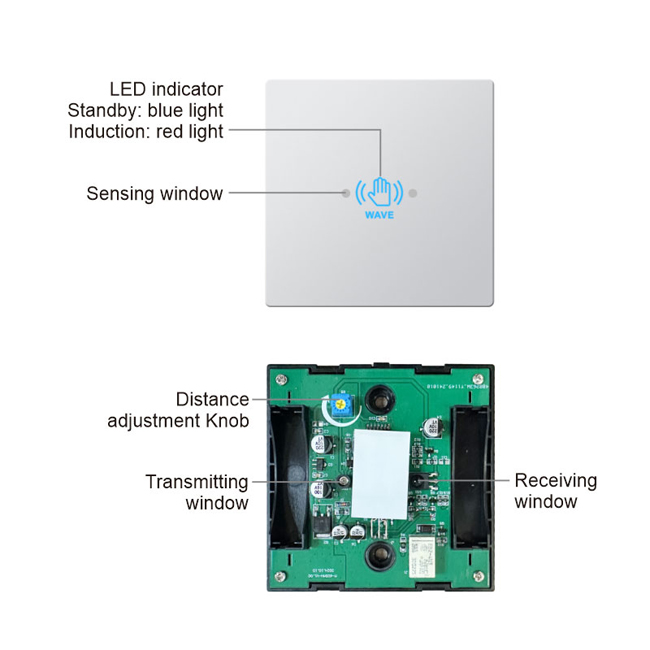

The M-605MHW features a durable ABS construction, available in classic matt black and white colors. Its seamless, one-piece housing is designed in a standard 86 size (86mm × 86mm), ensuring a sleek and modern fit for automatic door access control system. The front panel includes an infrared detection window, hand shape and "wave" text, clearly and intuitively, when users wave hand to approaching the switch, infrared ray detects and sends the signal to door opener, and indicates the effectiveness of the sensor through the LED light state.

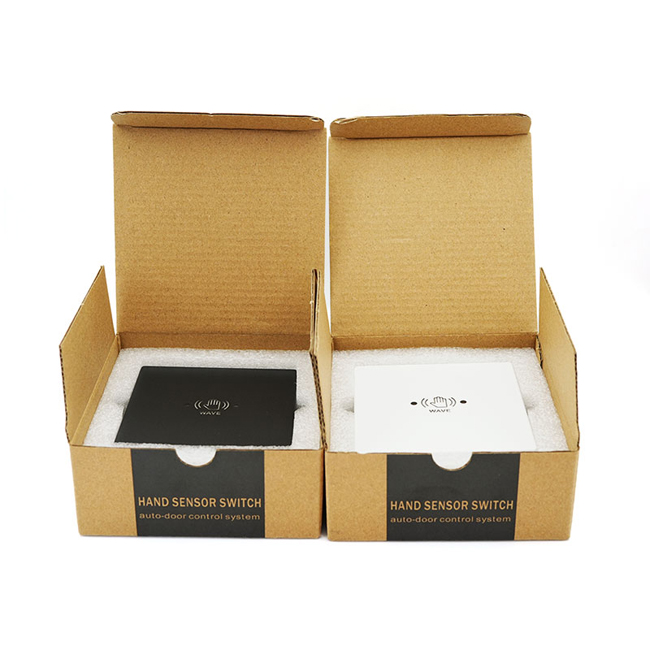

605MH_Hand Wave Sensor No Touch Switch (1)

Key Features & Advantages

Touchless Operation

Uses infrared sensing, with a sensing range adjustable from 0–30cm, no-contact and hygienic.

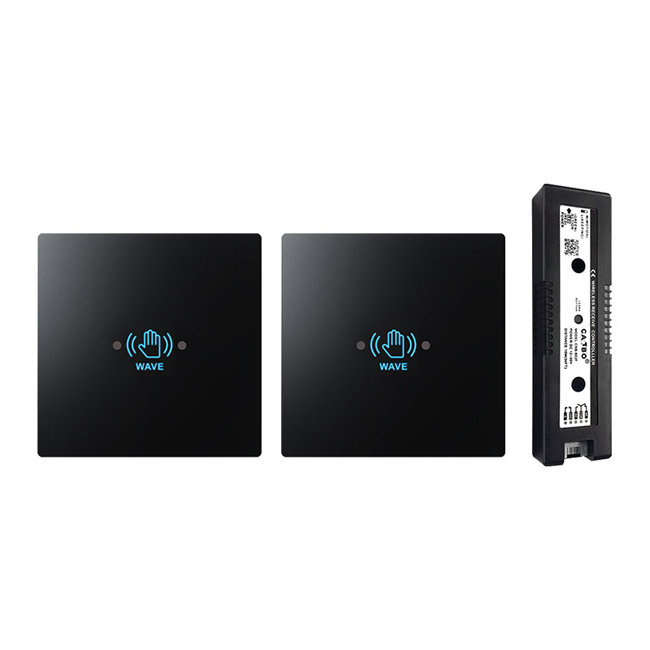

Wireless design

Battery powered for switch, DC 12–30V for wireless receiver, no wiring and easy to install, suitable for various occasions.
Dual Output Modes

Momentary (M): Outputs a 1.5-second door opening signal per trigger.

Latching (L): Toggles output state with each trigger for flexible control.
Clear Visual Indicators

Blue LED for standby/learning, red LED for action.

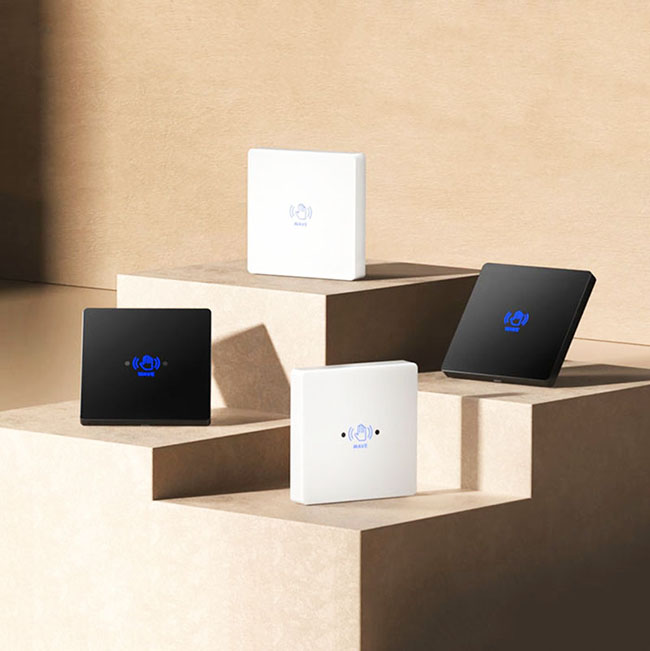

Flexible Options

605 series door switch, wired&wireless, surface&concealed mounted, infrared&capacitive sensing, matt black&white colors.

Touchless Operation
Wireless design
Dual Output Modes
Clear Visual Indicators
Flexible Options

Application Scenarios

Ideal for automatic door systems in:

Commercial spaces (offices, malls, hospitals, hotels)

Public facilities (restrooms, accessible entrances, cleanrooms)

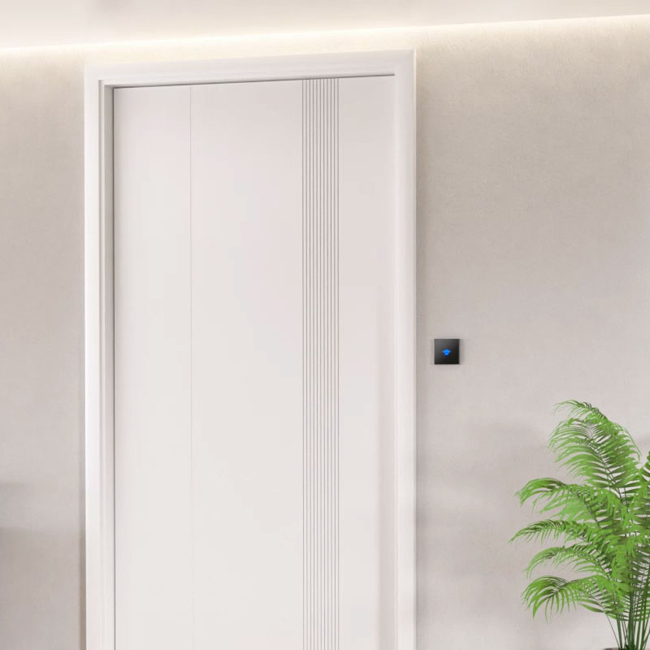

Smart homes and automated building entrances

Any environment where hands-free, sanitary access is preferred

Installation Guidelines

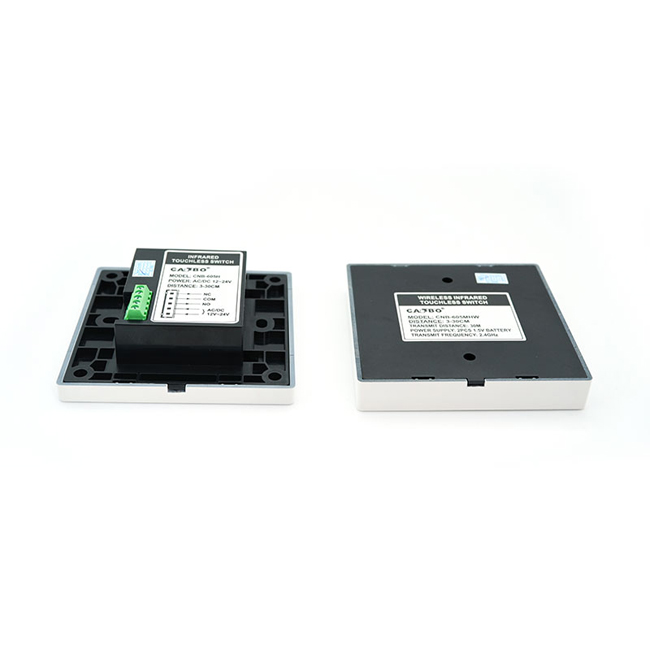

The kit includes a receiver and a transmitter (switch panel).

Receiver Installation

Connect the receiver to the automatic door operator controller.

Transmitter Installation

Insert the included battery into the transmitter. Use the included double-sided adhesive to fix the transmitter firmly in place. No wiring is required.

Pairing & Setup

Press the receiver's learning button until the blue LED lights up. Hold the transmitter within range to pair; the blue LED will flash twice to confirm.

Mode Selection

Slide the switch to M for momentary output (typical for door activation) or L for latching toggling. Reliable and adaptable touch-free entrance solution.
